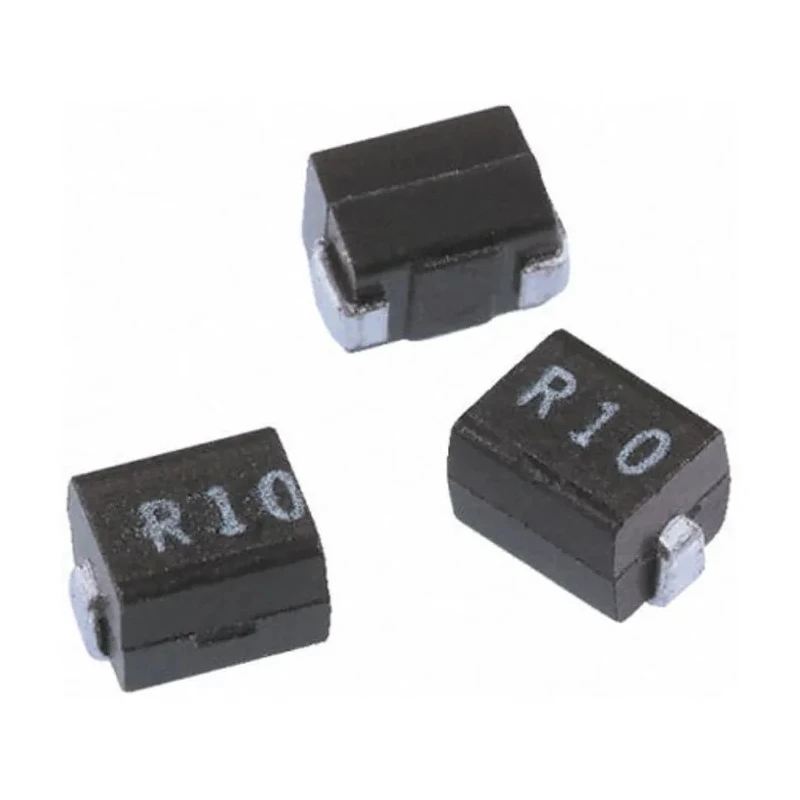

Wurth Elektronik WE-GF 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10μH ±10% 150mA 74476410

Wurth Elektronik 74476410 model WE-GF series 1210 shielded wirewound surface mount inductor features a ferrite core delivering an inductance of 10μH with ±10% tolerance and supports a maximum DC current of 150mA. It is designed for high-frequency applications up to 40MHz with a minimum quality factor of 30, making it ideal for HF amplifiers, oscillators, transponders, LC filter circuits, and tuner networks in electronic devices.

The component comes in a compact 1210 package with precise dimensions of 2.9mm length, 2.5mm depth, and 2.2mm height, suitable for space-conscious surface mount PCB layouts. Its shielded construction reduces electromagnetic interference, ensuring superior signal integrity in sensitive circuit applications.

This wirewound inductor is molded for enhanced mechanical robustness and provides consistent inductive properties across an operating temperature range from -40°C to +105°C. The device has a maximum DC resistance of 2.1Ω, which supports efficient current flow with minimal losses. Termination is designed for surface mounting, and the product is supplied in tape and reel packaging for smooth automated assembly operation.

The Wurth WE-GF 1210 inductor is highly reliable for use in industrial, telecommunications, automotive electronics, and high-frequency circuit applications that demand compact, efficient, and durable inductive components.

The inductor features a ferrite core construction ensuring high magnetic performance. Shielded design minimizes electromagnetic interference in sensitive circuits. Compact 1210 package size with dimensions 2.9mm length, 2.5mm depth, and 2.2mm height.

Suitable for high frequency applications with a maximum self-resonant frequency of 40MHz and a minimum quality factor of 30. Operates reliably within -40°C to 105°C temperature range with a maximum DC resistance of 2.1Ω.

Surface mount termination style enables automated PCB assembly with tape and reel packaging. Wirewound construction provides stable inductance and low noise characteristics for HF amplifiers and oscillator circuits. RoHS compliant and molded for durability and mechanical stability in demanding electronic components.
