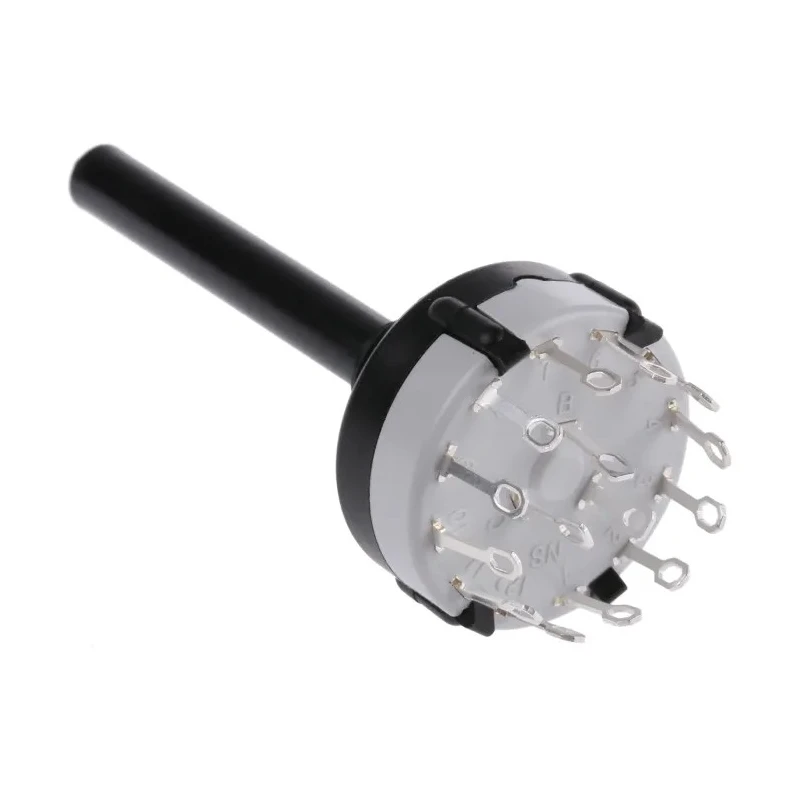

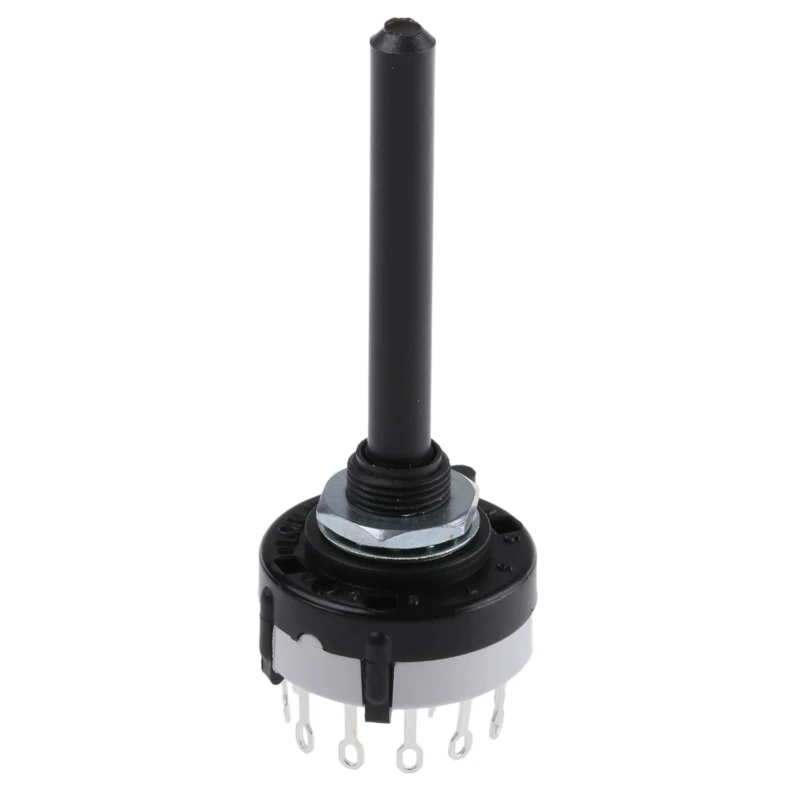

Lorlin 4 Position 3PST Rotary Switch 150mA Solder Tab CK1031
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 71.1mm |
| Model | CK1031 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PST |
| Number of Positions | 4 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
| Lorlin RA, 3 Position 4PST Rotary Switch, 1A, SolderBrand | Lorlin |
Key Features
- Four-position rotary switch with 3 poles and make-before-break contacts.
- Contact current capacity of 150mA at 250V AC or 24V DC.
- Durable polyamide housing with panel mount design and solder tab terminals.
- Mechanical life of 10,000 cycles with 90° angle of throw.
- Operating temperature range from -30°C to 85°C.
- Diameter and width of 27.5mm and height of 71.1mm for compact installation.
- Silver actuator color and non-illuminated design suitable for industrial use.
- Manufactured in the United Kingdom adhering to RoHS standards.
Product Description
Lorlin CK1031 is a 4 Position 3PST rotary switch designed for reliable electrical switching applications. Rated for 150mA switching current, it supports both AC voltages up to 250V and DC voltages up to 24V. The switch features a durable polyamide housing with panel mount compatibility and solder tab terminals for secure connections.
The switch utilizes a make-before-break (MBB) contact configuration providing smooth switching performance with 10,000 mechanical cycles life expectancy. An angle of throw of 90° and a silver actuator color complete the ergonomic design. Its compact 27.5mm diameter and width, with a height of 71.1mm, enable easy integration into control panels and automation systems.
Operable across a temperature range from -30°C to 85°C, this rotary switch is ideal for industrial, electrical, automation, and manufacturing environments. The product is RoHS compliant and manufactured in the United Kingdom ensuring high manufacturing standards are maintained.
Four-position, 3-pole rotary switch with solder tab terminals. 150mA contact current rated at 250V AC and 24V DC. Polyamide housing suited for panel mounting applications. Durable design featuring 10,000 mechanical life cycles.
90° angle of throw with silver actuator color. Operating temperature range from -30°C to 85°C. Compact dimensions: 27.5mm diameter and width, 71.1mm height. Manufactured in the United Kingdom ensuring quality and compliance.
This Lorlin CK1031 rotary switch is ideal for use in electrical automation, industrial control panels, instrumentation, and other specialized applications requiring reliable and precise position switching.
Explore more products in the Rotary Switch category for diverse technical needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current capacity is 150mA at 250V AC or 24V DC.
It operates within a temperature range of -30°C to 85°C.
It features solder tab terminals for secure connections.
This model has four positions.
The mechanical life expectancy is rated at 10,000 cycles.
It has a diameter and width of 27.5mm, and a height of 71.1mm.
The angle of throw is 90°.
The housing is made from durable polyamide.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The maximum AC voltage rating is 250V.
It is suitable for electrical automation, industrial control panels, and instrumentation applications.
The Lorlin CK1031 rotary switch is manufactured in the United Kingdom.
