Assemtech SPST PCB Reed Switch 350 mA 175 V RI-80

Free Delivery in India | Lowest Global Shipping Charges

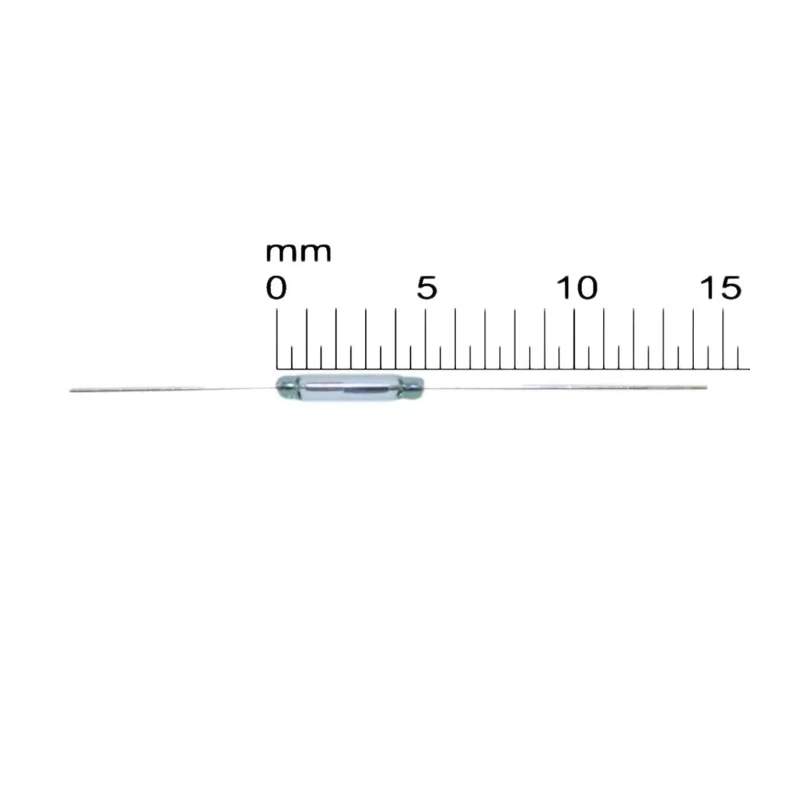

Assemtech SPST PCB Reed Switch 350 mA 175 V RI-80

Name: Assemtech SPST PCB Reed Switch 350 mA 175 V RI-80
Brand: Assemtech
SKU: 387444
Price: 269.34 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	5mm
Model	RI-80
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	350mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	160mΩ
Maximum Switching Power	5W
Standards/Approvals	ISO
Maximum Switching Voltage	175V
Maximum Release Time	0.02ms
Operating Time Including Bounce	0.35ms
AT Value Range	5 to 15 AT

Key Features

The switch has a SPST contact configuration, suitable for single pole control.
Hermetically sealed glass envelope ensures durability and reliability.
Contact material is ruthenium on gold, minimizing contact resistance at 160 mΩ.
Operates reliably within a temperature range of -55°C to 125°C.
Terminal type is wire with PCB mounting for easy integration.
Maximum switching power is 5 watts ensuring efficient electrical performance.
Very fast operation times with maximum release time of 0.02 ms and operating time including bounce at 0.35 ms.
AT value range from 5 to 15 AT supports varying sensitivity needs.

Product Description

Assemtech RI-80 is a high-quality SPST PCB Reed Switch designed for precise control in electronic and electrical circuits. Rated for a maximum switching current of 350 mA and voltage of 175 V, it ensures reliable performance for automation and switching applications.

The reed switch is hermetically sealed in a gas-filled glass envelope, protecting its internal contacts from environmental factors and ensuring long life. The contact material consists of ruthenium plated on gold, providing low contact resistance of 160 mΩ and enhancing switching efficiency.

This switch operates with minimal delay, having a maximum release time of 0.02 ms and including bounce time of 0.35 ms. It is suitable for PCB mounting with wire terminals, enabling seamless integration in printed circuit boards and automation systems.

The switch functions well within a temperature range of -55°C to 125°C, making it suitable for industrial, laboratory, automation, and manufacturing environments where temperature variations are expected.

The AT value range of 5 to 15 AT allows for customizable sensitivity based on application requirements. With a compact form factor of 5 mm length and 1.8 mm width, it suits tight spaces and precise electronic designs.

Hermetically sealed for protection and durability. SPST contact configuration for single pole control. Low contact resistance from ruthenium-gold contacts. Fast switching and release times. Wide operating temperature range for diverse environments.

Compact size for PCB mounting applications. Suitable for industrial, commercial, and laboratory automation use cases.
