Assemtech SPST PCB Reed Switch 500 mA 200 V RI-27

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST PCB Reed Switch 500 mA 200 V RI-27

Name: Assemtech SPST PCB Reed Switch 500 mA 200 V RI-27
Brand: Assemtech
SKU: 234438
Price: 167.65 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	13.5mm
Model	RI-27
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	90mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.25ms
AT Value Range	20 to 34 AT
Assemtech SPST PCB Reed Switch 500 mA 200 V dcBrand	Assemtech

Key Features

This reed switch has a SPST contact configuration for single pole single throw switching.
The maximum switching power is rated at 10 W to ensure reliable operation.
Contact material utilizes ruthenium on gold for enhanced conductivity and durability.
Operating temperature ranges from -55°C to 125°C for versatile environmental tolerance.

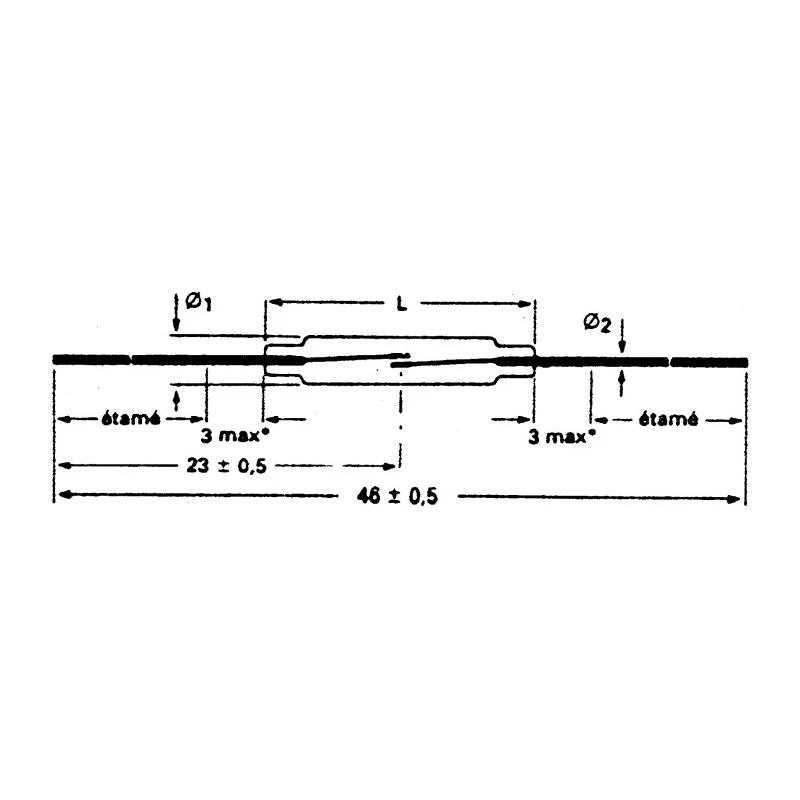

The switch dimensions include a length of 13.5 mm and width of 1.8 mm.
Equipped with wire terminal type and designed for PCB mounting.
Utilizes ISO standards for quality and reliability.
Suitable for applications such as telephone systems, alarm systems, test and measurement devices, and automotive electronics.

Product Description

Assemtech RI-27 SPST PCB Reed Switch offers reliable and precise switching performance with a maximum switching current of 500 mA and voltage rating of 200 V, designed specifically for PCB mounting applications.

This reed switch features a SPST (single pole single throw) contact configuration and a maximum switching power of 10 W. It uses ruthenium on gold contact material which provides excellent electrical conductivity and resistance to wear.

Engineered to operate reliably under a wide temperature range from -55°C to 125°C, the switch is suitable for harsh industrial, telecommunications, automotive, and test and measurement environments. Its compact dimensions of 13.5 mm length and 1.8 mm width allow integration in space-constrained circuit boards.

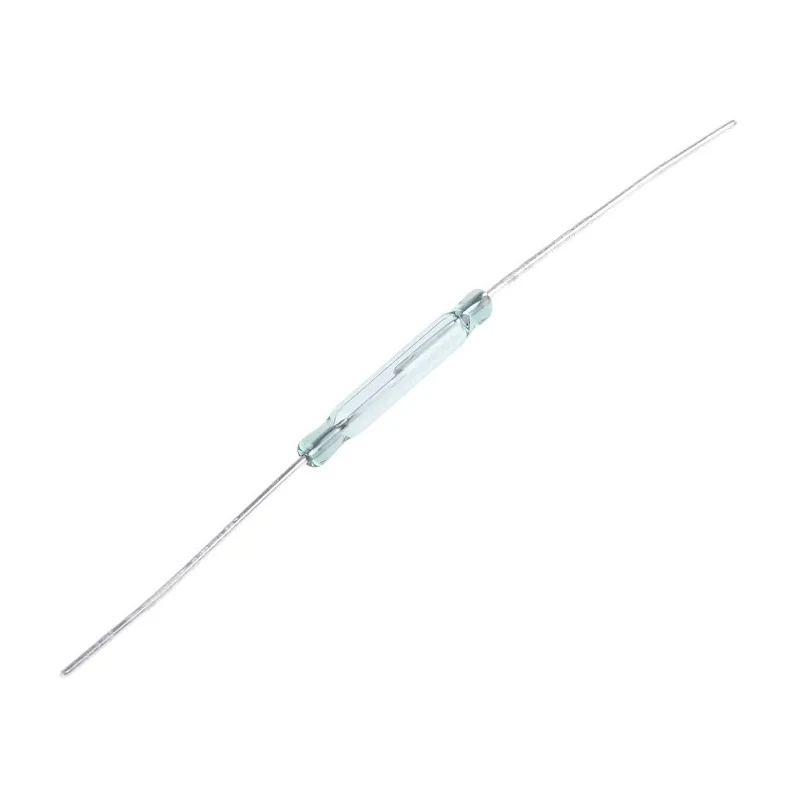

The device has a wire terminal type and meets ISO standards ensuring consistent quality and performance. Housed in a hermetically sealed glass capsule, the RI-27 model provides excellent protection against contamination and mechanical damage, resulting in enhanced durability and a long operational life.

Common applications of this reed switch include telephone systems, alarm and security equipment, automotive electronics, and various test and measurement devices. The magnetic actuation allows noiseless and precise switching, making it ideal for sensitive electronic circuits.

This Reed Switch has a SPST contact configuration for single pole single throw switching. The maximum switching power is rated at 10 W to ensure reliable operation. Contact material utilizes ruthenium on gold for enhanced conductivity and durability.

Operating temperature ranges from -55°C to 125°C for versatile environmental tolerance. The switch dimensions include a length of 13.5 mm and width of 1.8 mm. Equipped with wire terminal type and designed for PCB mounting.

Utilizes ISO standards for quality and reliability. Suitable for applications such as telephone systems, alarm systems, test and measurement devices, and automotive electronics. Compact hermetically sealed glass envelope provides long life expectancy and resistance to environmental factors.
