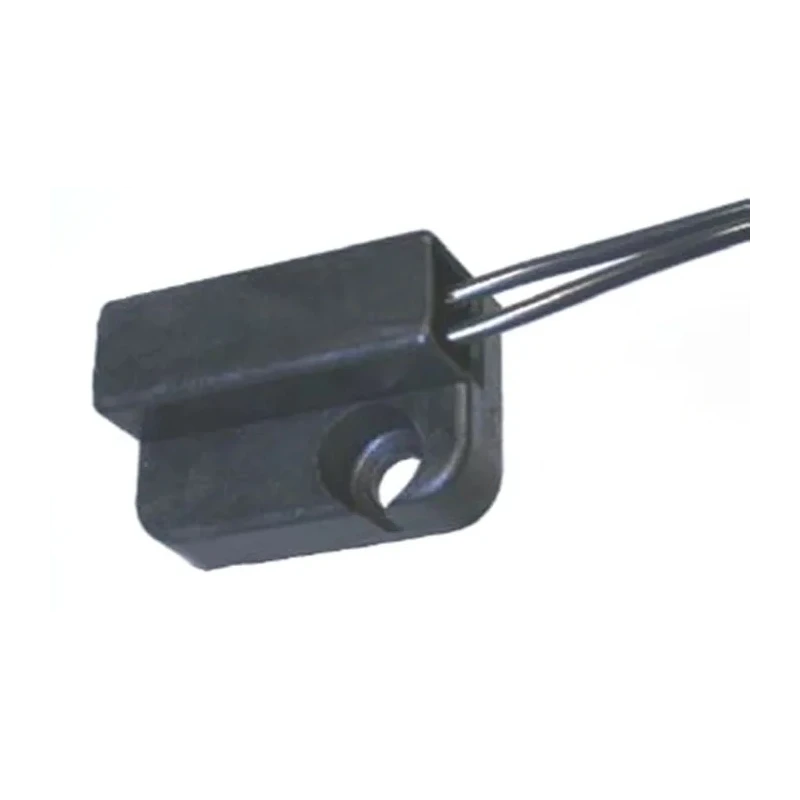

RS PRO Reed Switch Rectangular ABS Housing 140V AC, 2.75A 136-5757

Name: RS PRO Reed Switch Rectangular ABS Housing 140V AC, 2.75A 136-5757
Brand: RS PRO
SKU: 206083
Price: 1954.02 INR
Availability: InStock



Category Reed Switch Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Length	42mm
Model	136-5757
Depth	24.5mm
Width	27mm
Housing Material	ABS
Series	RS PRO
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Switching Current	2.75A
Switching Frequency	100Hz
Terminal type	Wire
Body Style	Rectangular
Output Function	NO/NC
Standards/Approvals	RoHS
Switching DC Voltage	200V dc
Switching AC Voltage	140V ac

Key Features

This reed switch features a rectangular ABS housing for durability.
The normally open contacts activate with a 6 mm sensing distance depending on iron content.
It supports switching voltages up to 140V AC and 200V DC, with a maximum current of 2.75A.
Operating temperature range extends from -40°C to 85°C for versatile use.
The sensor includes a 2 core, 22 AWG PVC insulated wire for connection.
Switching frequency is 100Hz, suitable for industrial automation applications.
The compact design allows front, bottom, top, or side sensing options within the RS PRO series.
Typical applications include robotic sensing, automated production line detection, and safety guard monitoring.

Product Description

RS PRO 136-5757 reed switch is a compact, rectangular magnetic proximity sensor housed in durable ABS plastic. It operates with normally open contacts that close upon approach of ferrous metals, with an activation distance of approximately 6 mm which depends on iron content.

This sensor supports switching voltages of 140V AC and 200V DC and can safely handle currents up to 2.75A. It is designed to operate reliably over a temperature range from -40°C to 85°C, making it suitable for demanding industrial environments.

The device includes a 2 core cable (2 x black, 22 AWG, PVC insulation with 105°C rating) ensuring secure and stable wire connections. With a switching frequency of 100Hz, it performs efficiently in automated production lines, robotics sensing, gate closed detection, and safety guards.

Part of the RS PRO series, this sensor is non-powered, rectangular, and comes with multiple sensing directions (front, bottom, top, side) within the range for application flexibility.

The sensor is RoHS compliant and manufactured in the United Kingdom, ensuring high quality and compliance with environmental standards. This Reed Switch features a rectangular ABS housing for durability. The normally open contacts activate with a 6 mm sensing distance depending on iron content.

It supports switching voltages up to 140V AC and 200V DC, with a maximum current of 2.75A. Operating temperature range extends from -40°C to 85°C for versatile use. The sensor includes a 2 core, 22 AWG PVC insulated wire for connection.

Switching frequency is 100Hz, suitable for industrial automation applications. The compact design allows front, bottom, top, or side sensing options within the RS PRO series. Typical applications include robotic sensing, automated production line detection, and safety guard monitoring.

Manufactured in the United Kingdom, this switch complies with RoHS standards.

This product is ideal for use in industrial and automation contexts such as robotics, production line controls, and safety monitoring systems. Explore more RS PRO magnetic proximity switches and sensors on EnvMart for your electrical and automation needs.
