EAO IP65 Keylock Switch, 1 NO/1 NC Contact Configuration, 5A 2-Way Flat-Key

Free Delivery in India | Lowest Global Shipping Charges

EAO IP65 Keylock Switch, 1 NO/1 NC Contact Configuration, 5A 2-Way Flat-Key



Category Key Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	IP65
IP Rating	IP65
Housing Material	Plastic
Contact Material	Gold
Maximum Operating Temperature	55°C
Contact Configuration	1 NO/1 NC
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Switch Operation	Off-On, Snap Action
Switch Contact Current	5A
Mechanical Life	1000000Cycles
Contact AC Voltage	240V ac
Key Type	Flat
Bezel Shape	Round
Key Index Angle	42°
EAO IP65 Keylock Switch, 1 NO/1 NC, 5A 2-Way Flat-KeyBrand	EAO

Key Features

Features IP65 protection rating for dust and water resistance.
Operates with a snap-action Off-On mechanism for reliable switching.
Equipped with a 2-position flat key for secure operation.
Contact current rated at 5A for 240V AC applications.
Gold contact material ensures excellent conductivity and durability.
Housing is made from durable plastic with a round bezel design.
Includes PCB terminal type for easy electrical connections.
Mechanical life rated at 1,000,000 cycles for long service life.

Product Description

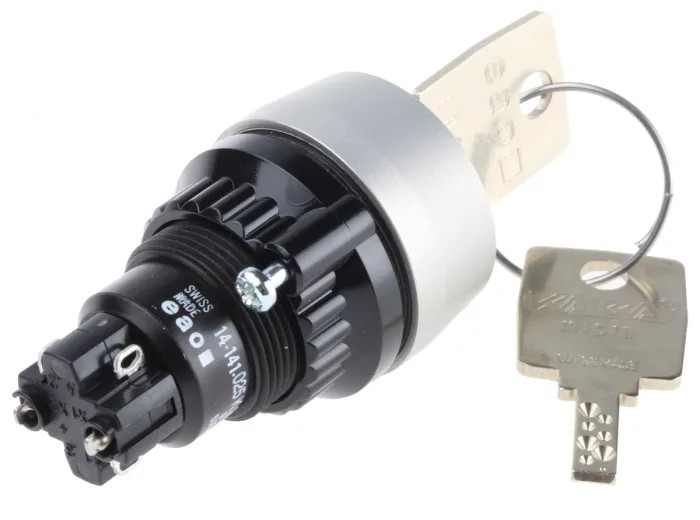

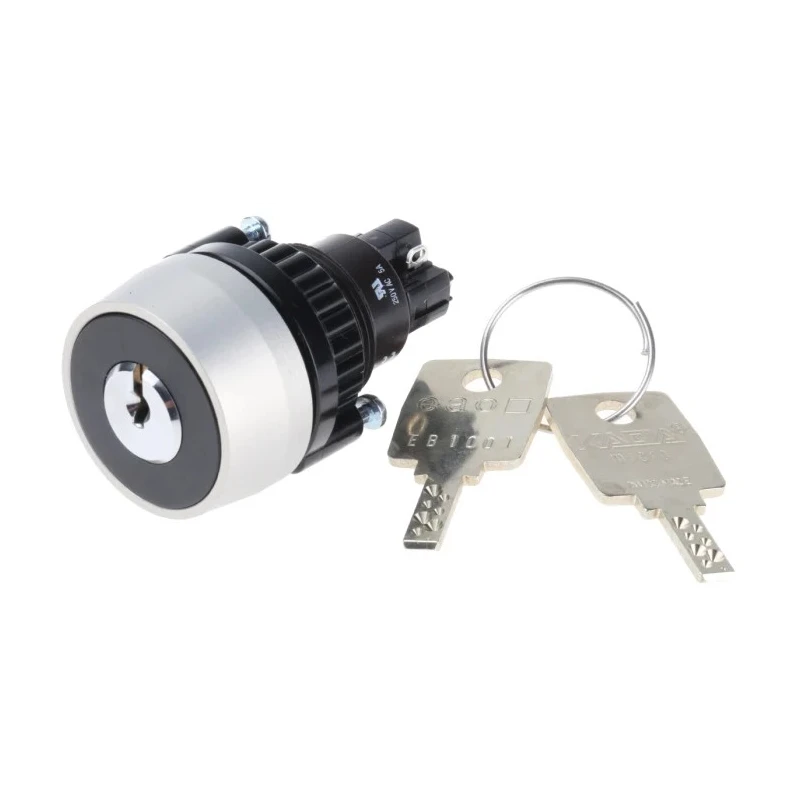

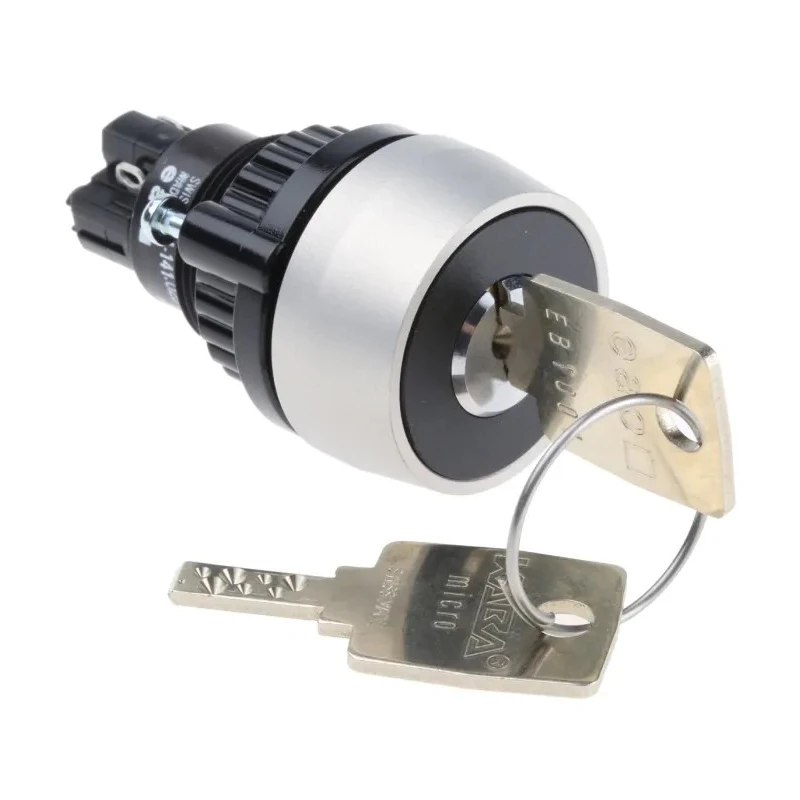

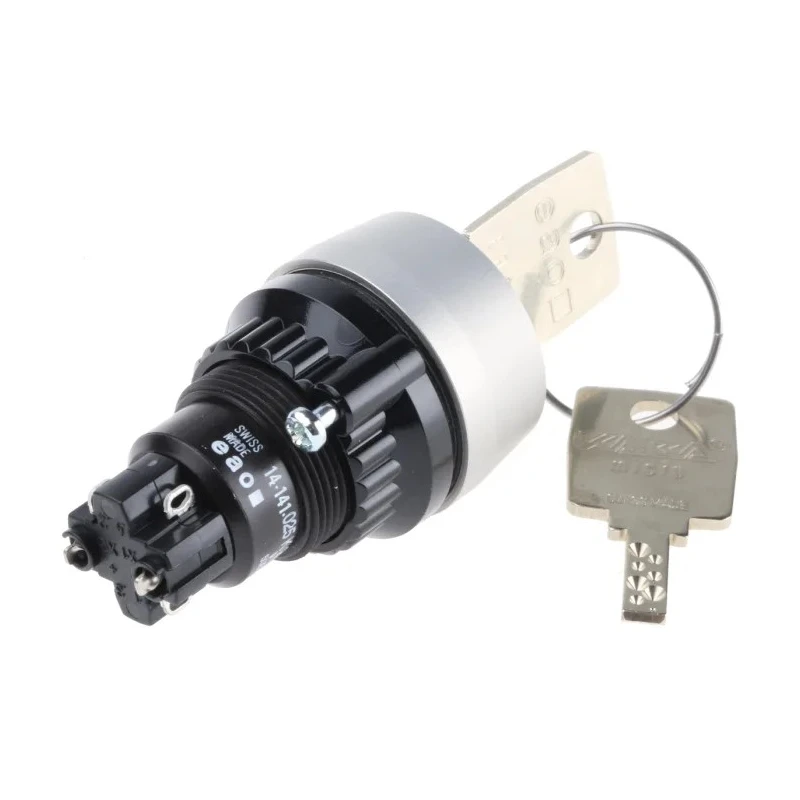

EAO IP65 Keylock Switch 14-141.025K2 offers reliable and secure switching with a 1 NO/1 NC contact configuration and 5A current rating at 240V AC. Its IP65 rating provides robust protection against dust and water ingress, making it suitable for industrial electrical, automation, and control system applications requiring secure key lock mechanisms.

This keylock switch features a flat key type with a 42° key index angle, housed in a sturdy plastic casing designed with a round bezel for machine interface mounting. The switch operates with an Off-On snap action ensuring consistent and precise operation. The gold contact material enhances conductivity and resistance to corrosion, prolonging product life.

Designed for demanding industrial environments, it boasts a mechanical life of one million cycles and functions effectively within a minimum operating temperature of -25°C up to a maximum of 55°C. The PCB terminal type facilitates straightforward integration with printed circuit boards.

The product is part of EAO's series 14 human-machine interface keylock switches and is supplied with two keys and an aluminium bezel for raised mounting with a mounting cut-out diameter of 22.5 mm. The natural anodized front ring front protection ensures longevity in severe environments.

This keylock switch is commonly used in industrial, automation, and machinery control applications where secure and precise key operation is critical. Its certification with RoHS and manufacture origin in Switzerland attest to its compliance with quality and environmental standards.

Features IP65 protection rating for dust and water resistance. Operates with a snap-action Off-On mechanism for reliable switching. Equipped with a 2-position flat key for secure operation. Contact current rated at 5A for 240V AC applications.

Gold contact material ensures excellent conductivity and durability. Housing is made from durable plastic with a round bezel design. Includes PCB terminal type for easy electrical connections. Mechanical life rated at 1,000,000 cycles for long service life.

Functional across a temperature range of -25°C to 55°C. Complies with RoHS standards and manufactured in Switzerland. Explore more high-quality keylock switches like this EAO model on EnvMart’s Electronics & Electricals platform for your machine control needs.
