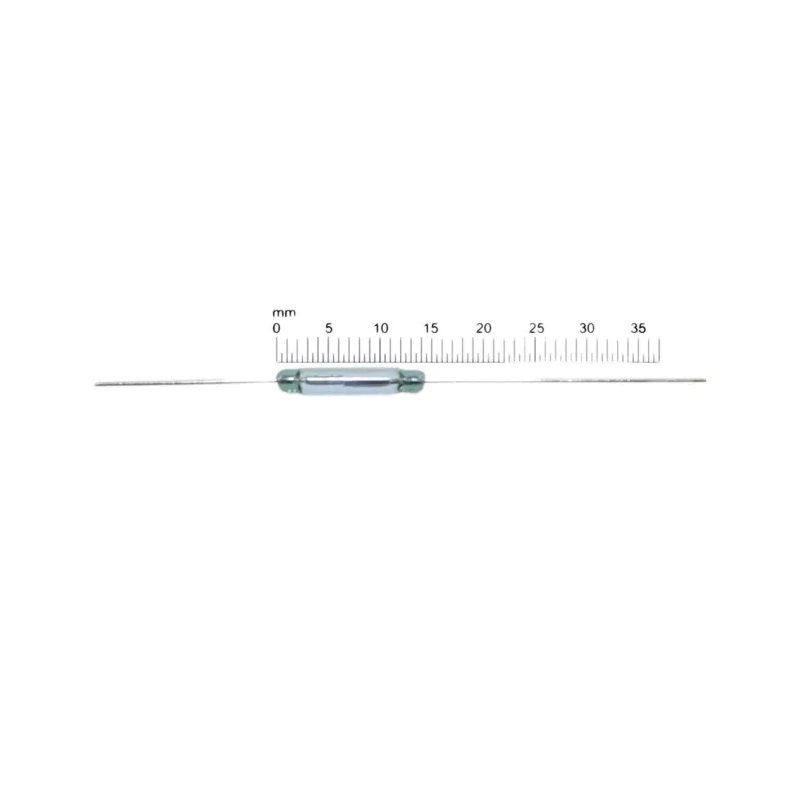

Assemtech SPST-NO PCB Reed Switch 1 A 200 V RI-26 Kit

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST-NO PCB Reed Switch 1 A 200 V RI-26 Kit

Name: Assemtech SPST-NO PCB Reed Switch 1 A 200 V RI-26 Kit
Brand: Assemtech
SKU: 387441
Price: 802.62 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	14.5mm
Model	RI-26 Kit
Width	2.54mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	2Ω
Maximum Switching Power	15W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.3ms
AT Value Range	28 to 52 AT

Key Features

Single pole single throw, normally open contact configuration ensures precise switching.
Maximum switching current of 1 ampere supports moderate electrical loads.
Durable ruthenium on gold contact material provides excellent conductivity and wear resistance.
Wide operating temperature range from -55°C to 125°C enables use in harsh environments.
Compact dimensions of 14.5 mm length and 2.54 mm width fit PCB mounting requirements.
Extremely fast release time of 30 microseconds and total operating time including bounce of 0.3 milliseconds.
Equipped with wire terminals for ease of installation on printed circuit boards.
Series RI design optimized for magnetically actuated reed switch applications.

Product Description

Assemtech RI-26 Kit SPST-NO PCB Reed Switch 1 A 200 V is a precision-engineered reed switch designed for PCB mounting applications in electronics and electrical systems.

This reed switch features a single pole, single throw, normally open contact configuration, providing reliable switching capability with a maximum current of 1 ampere and a maximum switching voltage of 200 volts. The contacts are made of ruthenium plated on gold, ensuring excellent conductivity, reduced contact resistance of 2 ohms, and enhanced durability under mechanical stress.

The device operates at high speed with a maximum release time of 30 microseconds and an operating time including bounce of 0.3 milliseconds, suitable for applications demanding responsive switching.

With a compact form factor measuring 14.5 mm in length and 2.54 mm in width, this reed switch mounts directly onto PCBs using wire terminals, optimizing space and connection reliability.

Designed to function in a wide temperature range from -55°C to 125°C, the Assemtech RI-26 Kit reed switch can withstand demanding industrial and environmental conditions. The hermetic gas-filled glass envelope protects the contacts from corrosion and contamination, significantly extending device lifespan.

This model belongs to the RI series and complies with ISO standards, assuring consistent quality and reliability. Typical industrial uses include automated control systems, sensor applications, and switching in electronic circuits where precise and reliable contact switching is essential.

Single pole, single throw, normally open contacts are hermetically sealed. Compact dimensions designed for PCB mounting with wire terminals. Maximum switching current: 1 A and maximum switching voltage: 200 V. Contact resistance maintained at a low 2 Ω.

Operation temperature range from -55°C to 125°C ensures durability. Fast mechanical operation with a life expectancy of 10⁸ operations. Contact material is ruthenium on gold plating for corrosion resistance. Series RI type reed switch complying with ISO standards.
