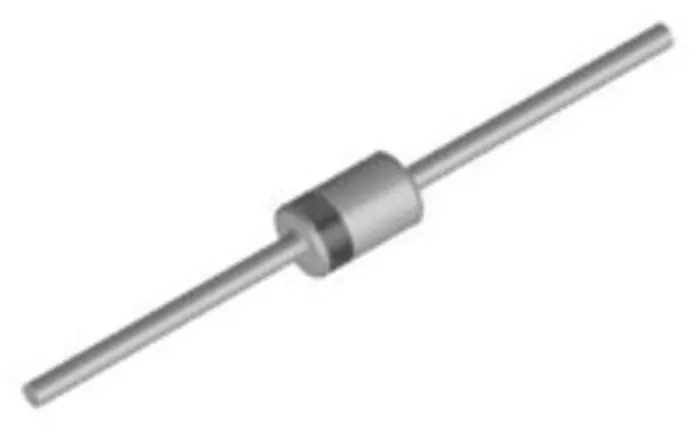

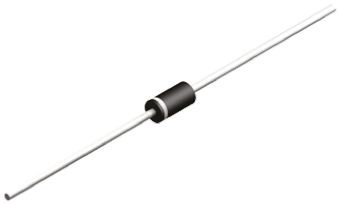

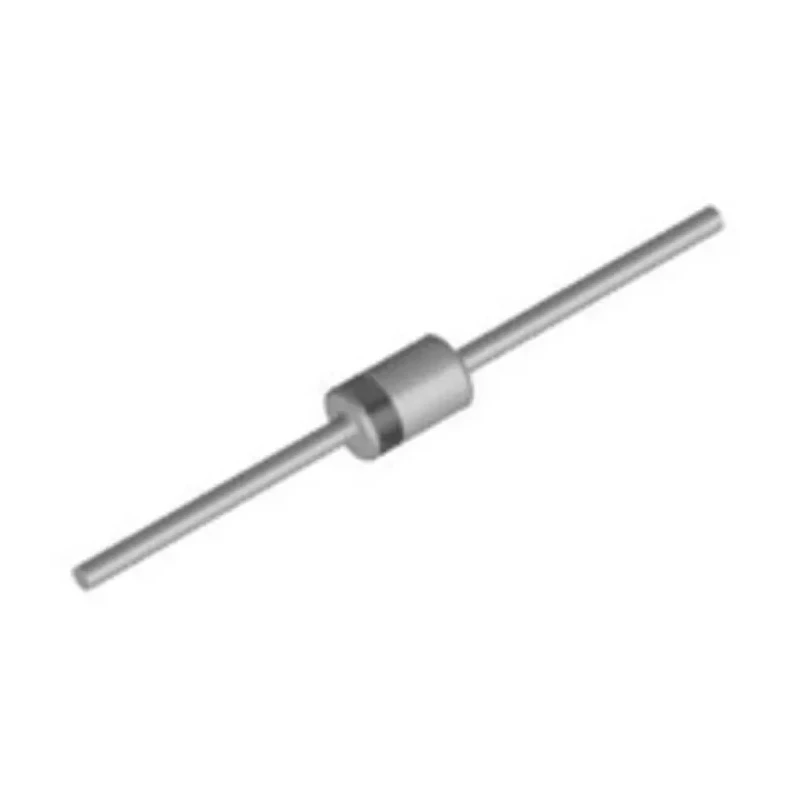

Vishay 16 V General Purpose Zener Diode 1.3 W Through Hole DO-41 Package BZX85B16-TR

Vishay BZX85B16-TR is a high-quality Zener diode designed for voltage regulation and protection in electronic circuits. This general purpose Zener diode has a nominal Zener voltage of 16 V and a maximum power dissipation of 1.3 W, making it suitable for stabilizing voltage in various electronic devices.

The diode comes in a compact DO-41 package with a through-hole mount design, enabling easy installation on printed circuit boards. It is equipped with 2 pins and features a ±2% voltage tolerance ensuring precision in voltage regulation.

With a maximum reverse leakage current of just 500 nA and a maximum Zener impedance of 15 ohms, the diode ensures efficient and stable performance. It is rated to operate reliably between -55°C and 175°C, accommodating a wide range of industrial environments.

This diode is commonly used in power and connector applications, ideal for clipping and voltage stabilization circuits in industrial electronics, consumer electronics, and automotive electronics.

This diode offers reliable voltage regulation with a tolerance of ±2 percent. It has a 2-pin configuration suitable for through-hole mounting. The maximum reverse leakage current is 500 nA ensuring minimal leakage losses.

Rated for maximum power dissipation of 1.3 watts for robust performance. Operates within a temperature range of -55°C to 175°C for versatility. Featuring a compact DO-41 package type measuring 4.1 mm length and 2.6 mm height.

Zener impedance is rated at a maximum of 15 ohms for stable operation. Ideal for stabilizing and clipping circuits in electronics applications. This model BZX85B16-TR meets stringent standards for durability and consistent performance.
