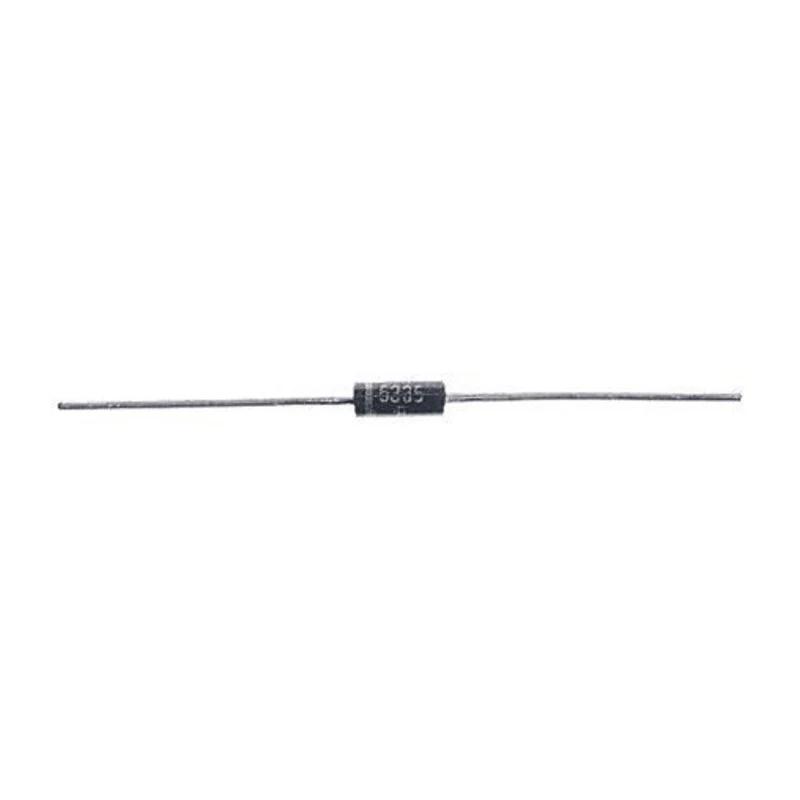

Vishay Zener Diode 1.5 W 150 V Single Through Hole 2-Pin DO-204AL Z4KE150A-E3/54

Vishay Z4KE150A-E3/54 is a high-quality Zener Diode designed for voltage regulation and stabilization in electronic circuits. This single element diode features a nominal Zener voltage of 150 V and can dissipate up to 1.5 watts of power, making it suitable for various semiconductor applications including automotive electronics.

The diode is mounted through hole using the DO-204AL package, which is a plastic MELF style suited for automated insertion, aiding production efficiency in manufacturing environments. It operates reliably within a wide temperature range from -55°C to 150°C, meeting demanding automotive standards as it is AEC-Q101 qualified.

Key electrical characteristics include a maximum Zener impedance of 1000 Ω which ensures low regulation factor and stable voltage reference under varying loads. The maximum reverse leakage current is limited to 500 nA, minimizing power losses and preventing unwanted currents when reverse biased. A test current of 5 mA defines the operating point for voltage regulation measurements.

Structurally, the diode measures 5.2 mm in length, supporting compact PCB layouts in industrial, automotive, and general electronic assemblies. The product is well suited for voltage regulation circuits, power supplies, and protective voltage reference applications across industrial, laboratory, and automotive sectors.

Designed for through hole mounting with a DO-204AL package type. AEC-Q101 qualified ensuring automotive industry standards compliance. Maximum power dissipation of 1.5 W suited for moderate power regulation. Low maximum reverse leakage current of 500 nA minimizing leakage losses.

Operates over a broad temperature range from -55°C to 150°C. Nominal Zener voltage of 150 V for regulated voltage reference. Test current of 5 mA for stable Zener voltage measurements. Compact 5.2 mm length accommodates tight PCB designs.

Single diode configuration with 2 pins simplifies circuit integration.

Vishay’s Z4KE series diodes are essential components for robust electronic designs requiring reliable voltage regulation. The Z4KE150A-E3/54 model is widely used in discrete semiconductor applications including industrial controls, automotive electronics, and power management systems.
