Wurth Elektronik WE-PD2 Unshielded Wirewound Surface Mount Inductor 68 μH ±10 % 640 mA 5.8mm x 5.2mm x 4.5mm 10MHz 744774168
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 5.8mm |
| Depth | 5.2mm |
| Packaging | Tape & Reel |
| Series | WE-PD2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 640mA |
| Maximum DC Resistance | 460mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Tin/Copper |
| Maximum Self Resonant Frequency | 10MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor utilizes a ferrite core ensuring efficient magnetic performance.
- Designed for surface mount technology with tape and reel packaging for automated assembly.

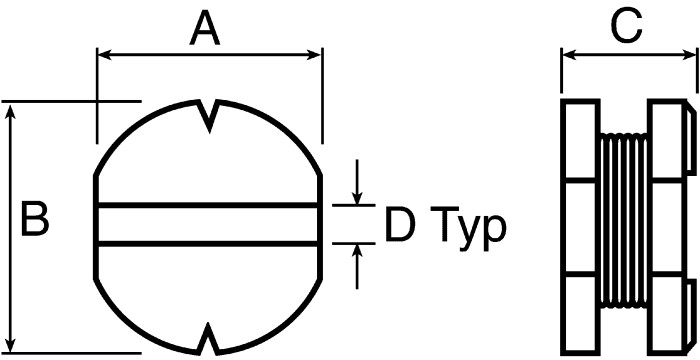

- Compact dimensions of 5.8mm length, 5.2mm depth, and 4.5mm height suit tight PCB layouts.
- Maximum DC resistance is 460 mΩ enabling low power loss in circuits.
- Operates reliably within temperature range of -40°C to 125°C meeting AEC-Q200 automotive standards.
- The component is RoHS compliant, ensuring environmental safety.
- Termination style includes tin/copper for strong solder joints.
- Maximum self-resonant frequency is 10 MHz, suitable for switching regulators and DC/DC converters.
Product Description
Wurth Elektronik model 744774168 is an unshielded wirewound surface mount inductor featuring a ferrite core, rated at 68 μH inductance with a ±10 % tolerance. It supports a maximum DC current of 640 mA and a maximum DC resistance of 460 mΩ. With compact package dimensions of 5.8 mm in length, 5.2 mm in depth, and 4.5 mm in height, it is suitable for dense PCB applications.
This inductor complies with AEC-Q200 automotive standard, assuring reliability in automotive and industrial environments. Operating temperatures range from -40°C to 125°C, allowing stable performance across a wide environmental spectrum. RoHS certification confirms compliance with environmental regulations.
Designed primarily for power applications, the WE-PD2 series is intended for use in switching regulators with low operating voltages such as those in computers, laptops, mobile phones, pagers, and integrated DC/DC converters. The maximum self-resonant frequency of 10 MHz allows operation at relatively high frequencies in switching power supplies.
The component comes in tape and reel packaging, optimized for reflow soldering processes and automated SMT assembly lines, enhancing production efficiency and consistency. Ferrite core construction ensures magnetic efficiency and low losses.
Compact footprint facilitates high-density PCB layouts. Suitable for switching regulators with high efficiency requirements. Robust against automotive operational stresses with AEC-Q200 certification. Environmentally safe with RoHS compliance.
Reliable tin/copper terminations for secure electrical connections. Supports reflow soldering with tape and reel packaging. Maximum self-resonant frequency of 10 MHz enables high-frequency operation.
The Wurth Elektronik 744774168 is ideally suited for diverse industrial, automotive, and consumer electronics applications requiring compact, reliable, and efficient surface mount inductors. It supports designers targeting miniaturization without compromising electrical performance.
Explore more Wurth Elektronik components and Surface Mount Inductors with EnvMart for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 68 μH with a tolerance of ±10%.
It supports a maximum DC current of 640 mA.
The dimensions are 5.8 mm in length, 5.2 mm in depth, and 4.5 mm in height.
The maximum DC resistance is 460 mΩ, which enables low power loss in circuits.
The maximum self-resonant frequency is 10 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 125°C.
It utilizes a ferrite core, ensuring efficient magnetic performance.
Yes, it complies with AEC-Q200 automotive standards and is RoHS certified.
The termination style includes tin/copper for strong solder joints.
It comes in tape and reel packaging, optimized for automated assembly processes.
It is designed primarily for use in switching regulators and DC/DC converters in various electronic devices.
This model is part of the WE-PD2 series of surface mount inductors.
