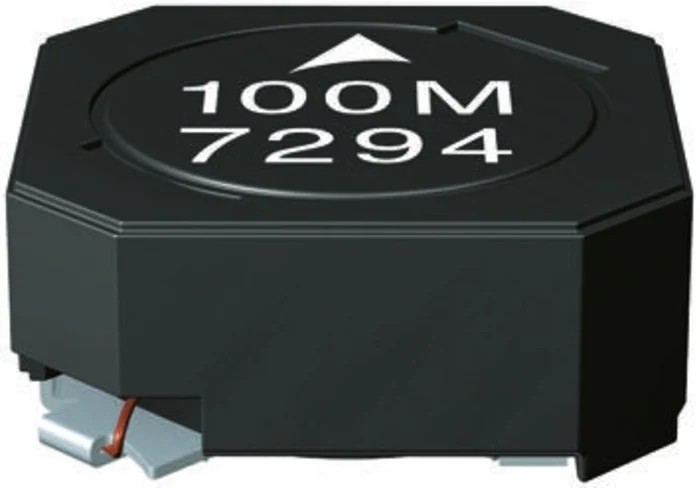

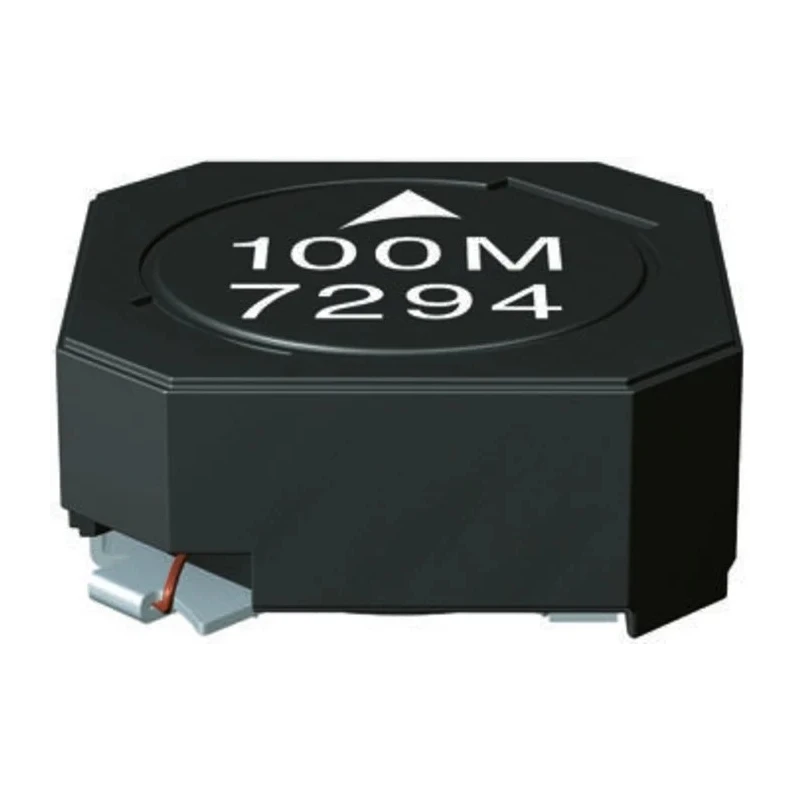

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±20% 2.55 A IDC B82462G4222M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3mm |
| Length | 6.3mm |
| Model | B82462G4222M000 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.55A |
| Pin Count | 2 |
| Maximum DC Resistance | 25mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 75MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded design improves electromagnetic compatibility.
- Constructed with a ferrite core and enamel copper wire winding.

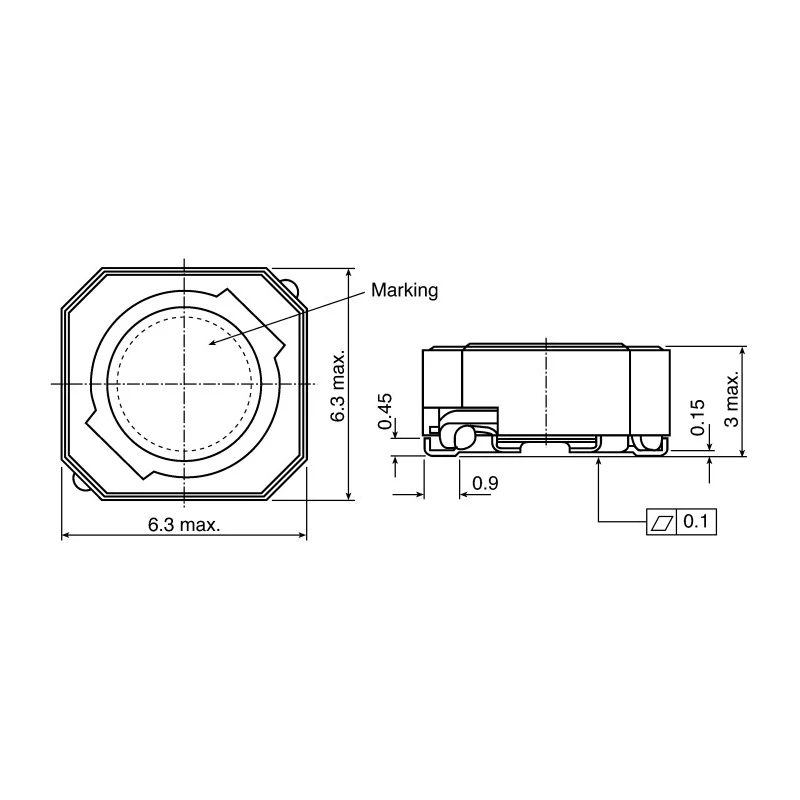

- SMT size of 6.3 mm by 6.3 mm with a height of 3 mm for compact PCB mounting.
- Wide operating temperature range from -55°C to 150°C supports automotive applications.
- RoHS compliant with solder termination style for surface mounting.
- Maximum DC resistance rated at 25 mΩ for efficient current handling.
- Designed to withstand reflow soldering processes.
- Maximum self-resonant frequency of 75 MHz suits high-frequency circuits.
Product Description
TDK B82462G4222M000 is a shielded wirewound surface mount inductor featuring a ferrite core, delivering 2.2 μH inductance with a tolerance of ±20% and supporting a maximum DC current of 2.55 A. Its magnetically shielded construction reduces electromagnetic interference, making it suitable for demanding industrial, automotive, and power supply filtering applications.
Designed for surface mount technology (SMT), this inductor measures 6.3 mm in length and depth, with a height of 3 mm, providing a compact footprint for densely populated printed circuit boards. The solder termination style ensures reliable mechanical and electrical connections during automated PCB assembly and reflow solder processes.
The inductor operates reliably across a wide temperature range of -55°C to 150°C, complying with AEC-Q200 automotive standards, thus making it ideal for automotive electronics and harsh environmental conditions. Its low maximum DC resistance of 25 mΩ allows efficient current flow with minimal losses.
With a maximum self-resonant frequency of 75 MHz, this component supports high-frequency signal integrity essential for modern electronic circuits. Packaged in tape & reel format, it facilitates high-volume automated manufacturing processes.
Key applications include power supply filtering, signal conditioning, and electromagnetic interference suppression in industrial, automotive, telecommunications, and consumer electronics sectors.
Magnetically shielded design improves electromagnetic compatibility. Constructed with a ferrite core and enamel copper wire winding. SMT size of 6.3 mm by 6.3 mm with a height of 3 mm for compact PCB mounting. Wide operating temperature range from -55°C to 150°C supports automotive applications.
RoHS compliant with solder termination style for surface mounting. Maximum DC resistance rated at 25 mΩ for efficient current handling. Designed to withstand reflow soldering processes. Maximum self-resonant frequency of 75 MHz suits high-frequency circuits.
Packaged in tape & reel for automated assembly line compatibility. Explore more electronic components and Surface Mount Inductors at EnvMart for industrial, automotive, and consumer electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 μH with a tolerance of ±20%.
The maximum DC current rating for this unit is 2.55 A.
It measures 6.3 mm in length, 6.3 mm in depth, and has a height of 3 mm.
The maximum self-resonant frequency is 75 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -55°C to 150°C.
This inductor features a ferrite core, which contributes to its performance.
Yes, this model is RoHS compliant, ensuring it meets environmental standards.
It uses a solder termination style, suitable for surface mounting.
It is suitable for applications such as power supply filtering, signal conditioning, and electromagnetic interference suppression.
It is packaged in tape & reel format, facilitating automated assembly processes.
This model complies with the AEC-Q200 automotive standard, making it suitable for automotive applications.
The maximum DC resistance is rated at 25 mΩ, allowing for efficient current handling.
