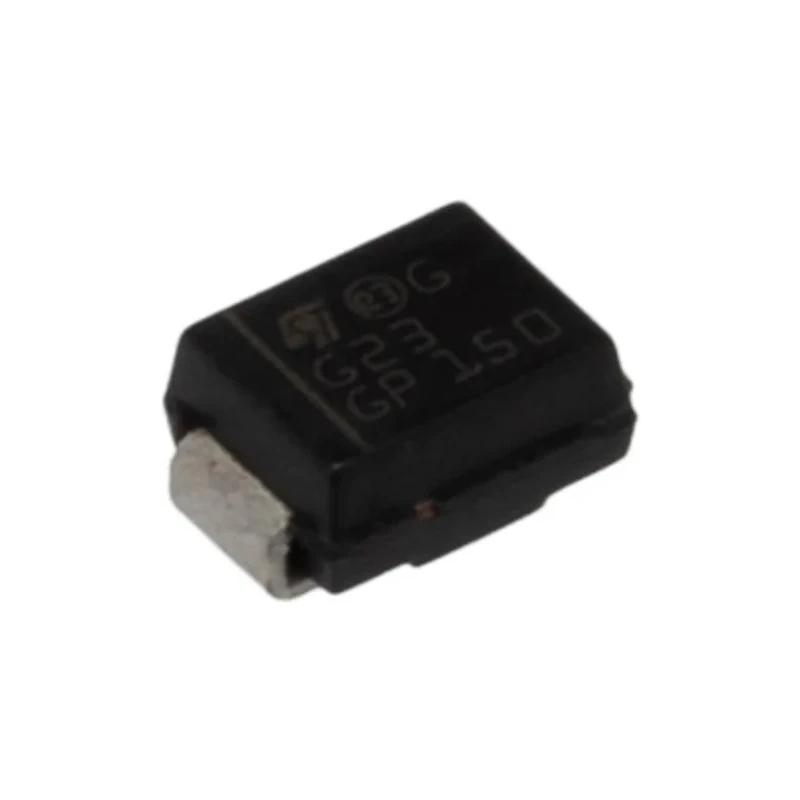

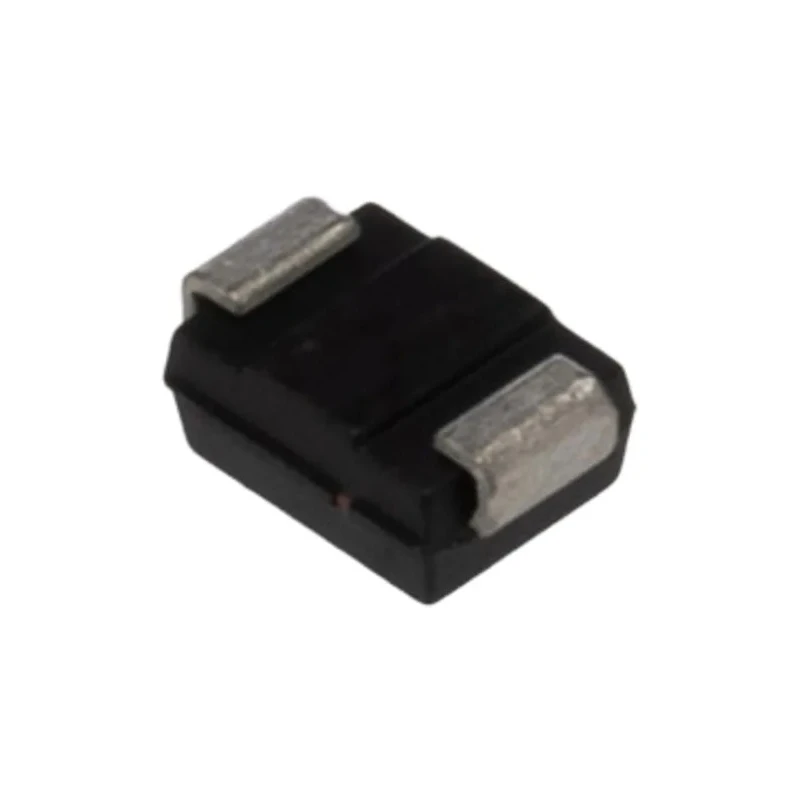

STMicroelectronics Schottky Diode 25 V 2 A Surface Mount DO-214AA STPS2L25U

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Schottky Diode 25 V 2 A Surface Mount DO-214AA STPS2L25U

Name: STMicroelectronics Schottky Diode 25 V 2 A Surface Mount DO-214AA STPS2L25U
Brand: STMicroelectronics
SKU: 389841
Price: 0.16 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS2L25U
Width	3.95mm
Mount Type	Surface
Series	STPS2L25
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	25V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	90μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.33V

Key Features

Surface mount package type DO-214AA suitable for compact PCB assembly.
Maximum continuous forward current of 2 Amps ensures reliable current flow.
Peak repetitive reverse voltage of 25 Volts for efficient blocking.
Low forward voltage of 0.33 Volts reduces power dissipation.
Peak non-repetitive forward surge current of 75 Amps for transient protection.
Operating temperature range from -65 to 150 degrees Celsius supports extreme environments.
Compact dimensions with length of 4.6mm, width of 3.95mm, and height of 2.45mm.
Diode is a single Schottky rectifier with 2 pins for straightforward circuit integration.

Product Description

STMicroelectronics STPS2L25U is a high-performance Schottky barrier diode designed for surface mount applications. It supports a maximum continuous forward current of 2 A at a peak repetitive reverse voltage of 25 V, making it ideal for power rectification and protection circuits.

This diode features a low forward voltage drop of 0.33 V, which minimizes power loss and improves efficiency in power supplies and switching circuits. Its peak non-repetitive forward surge current rating of 75 A enhances reliability by absorbing transient surges.

The compact DO-214AA package is surface mount compatible, with dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height, facilitating integration on densely populated PCBs. The junction temperature rating from -65°C to 150°C allows use in harsh industrial and commercial environments.

Applications include industrial power supplies, switching regulators, and low voltage power rectification in consumer electronics. The device’s single diode configuration and 2-pin design allow easy installation and effective rectification.

Surface mount DO-214AA package ensures space-saving PCB layouts. 2 A continuous forward current supports medium power applications. Low forward voltage reduces thermal dissipation. Wide operating temperature range enables use in extreme conditions.

High surge current capability provides robustness against transient events. Compact dimensions facilitate compact circuit design. Reliable Schottky barrier diode for power and protection circuits.

This STMicroelectronics Schottky diode combines durability, efficiency, and compact size for industrial, commercial, and electronic applications. Browsing EnvMart’s broad semiconductor catalog can help identify compatible components and accessories.
