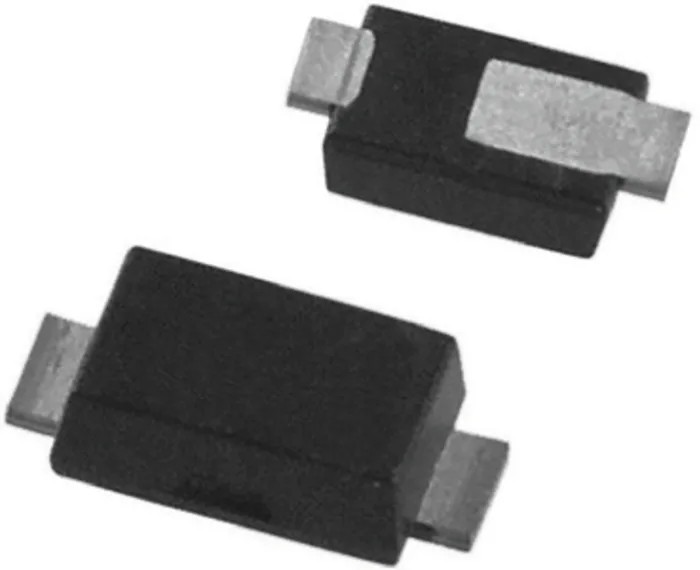

DiodesZetex Schottky Diode 100 V 1 A Surface Mount PowerDI123 DFLS1100-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Schottky Diode 100 V 1 A Surface Mount PowerDI123 DFLS1100-7

Name: DiodesZetex Schottky Diode 100 V 1 A Surface Mount PowerDI123 DFLS1100-7
Brand: DiodesZetex
SKU: 389633
Price: 0.18 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1mm
Length	3mm
Model	DFLS1100-7
Width	1.93mm
Mount Type	Surface
Series	DFLS1100
Maximum Operating Temperature	175°C
Package Type	PowerDI123
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	860mV

Key Features

Maximum continuous forward current of 1 ampere for reliable performance.
Peak reverse repetitive voltage rating of 100 volts to handle voltage spikes.
Low forward voltage drop of 860 millivolts improves efficiency.
Wide operating temperature range from -55°C to 175°C for durability.
Compact surface mount package with dimensions 3 mm length, 1.93 mm width, and 1 mm height.
Features 2-pin single diode configuration convenient for PCB assembly.
Automotive standard compliant with AEC-Q101 for high reliability.
Peak non-repetitive forward surge current rating of 50 amperes supports transient conditions.

Product Description

DiodesZetex DFLS1100-7 is a high-performance Schottky Diode designed for surface mount applications with a PowerDI123 package. It supports a maximum continuous forward current of 1 ampere and can withstand peak reverse voltages up to 100 volts, making it suitable for efficient power rectification and voltage protection circuits.

The diode has a low forward voltage of 860 millivolts, reducing energy loss and increasing circuit efficiency. It operates reliably within a temperature range from -55°C to 175°C, ensuring durability in demanding industrial, automotive, and electronic environments.

The compact 2-pin surface mount package dimensions are 3 mm in length, 1.93 mm in width, and 1 mm in height, facilitating space-saving PCB designs. Its conformance to the AEC-Q101 automotive standard assures quality and reliability for automotive electronics and other high-reliability applications.

Additionally, the diode supports a peak non-repetitive forward surge current of 50 amperes, enabling it to handle transient surge events without damage. The diode configuration is a single Schottky barrier type, known for fast switching speed and low forward voltage drop characteristics.

Maximum continuous forward current of 1 ampere for reliable performance. Peak reverse repetitive voltage rating of 100 volts to handle voltage spikes. Low forward voltage drop of 860 millivolts improves efficiency. Wide operating temperature range from -55°C to 175°C for durability.

Compact surface mount package with dimensions 3 mm length, 1.93 mm width, and 1 mm height. Features 2-pin single diode configuration convenient for PCB assembly. Automotive standard compliant with AEC-Q101 for high reliability.

Peak non-repetitive forward surge current rating of 50 amperes supports transient conditions.

This diode is ideal for use in electronic circuits, power supplies, automotive electronics, and industrial control equipment where efficient rectification and high reliability are critical. Explore more semiconductor and diode components in the Electronics & Electricals category on EnvMart.
