| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 1.8mm |
| Model | NSR0530HT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | NSR0530H |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.5A |
| Maximum Forward Voltage Vf | 620mV |

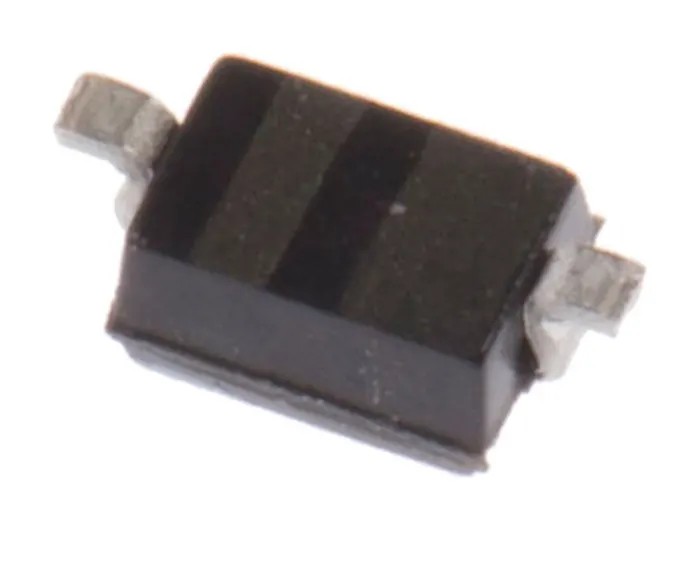

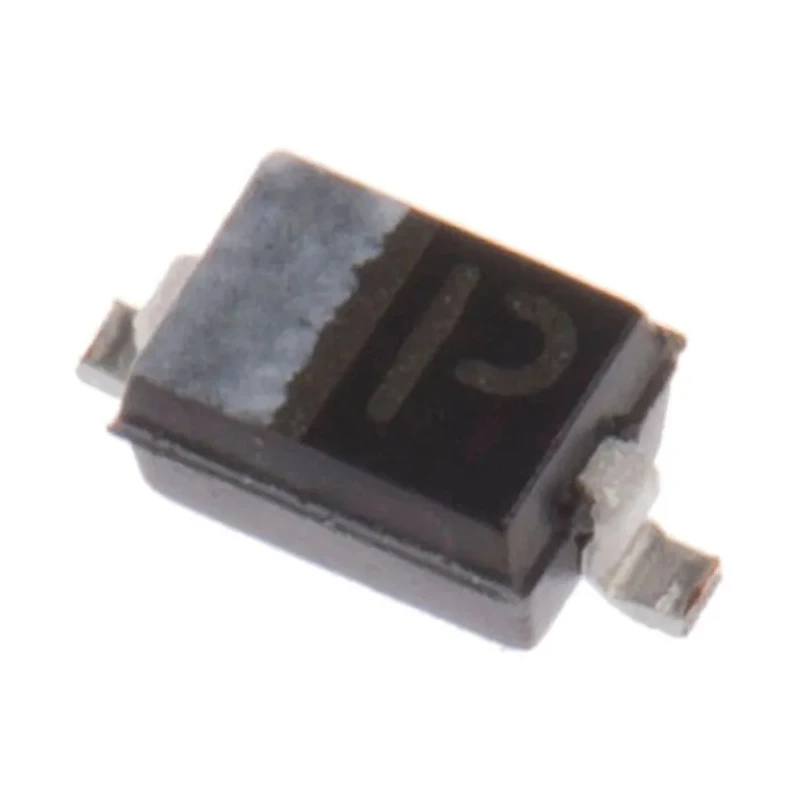

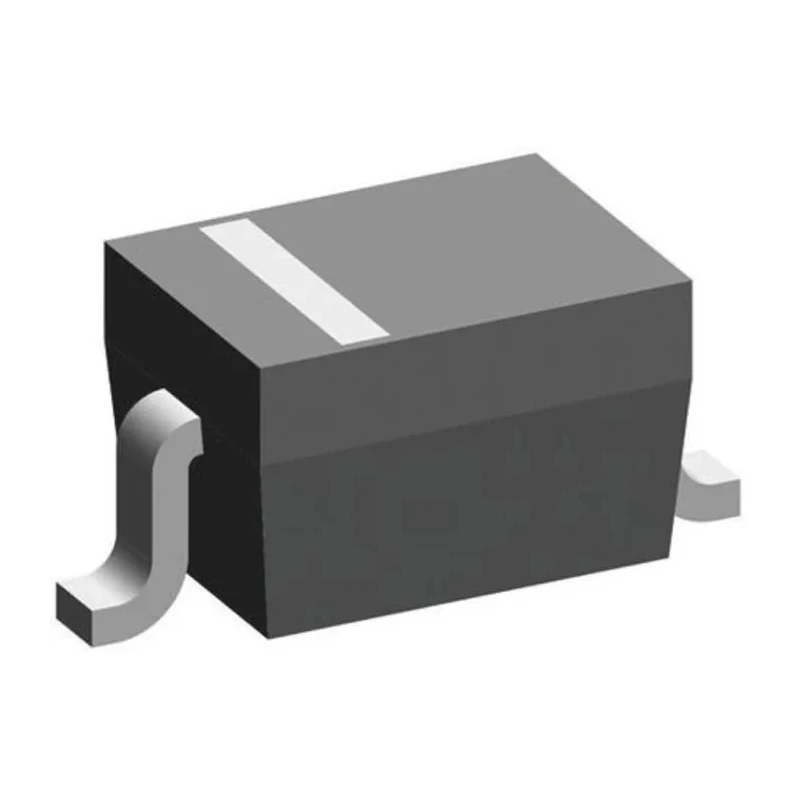

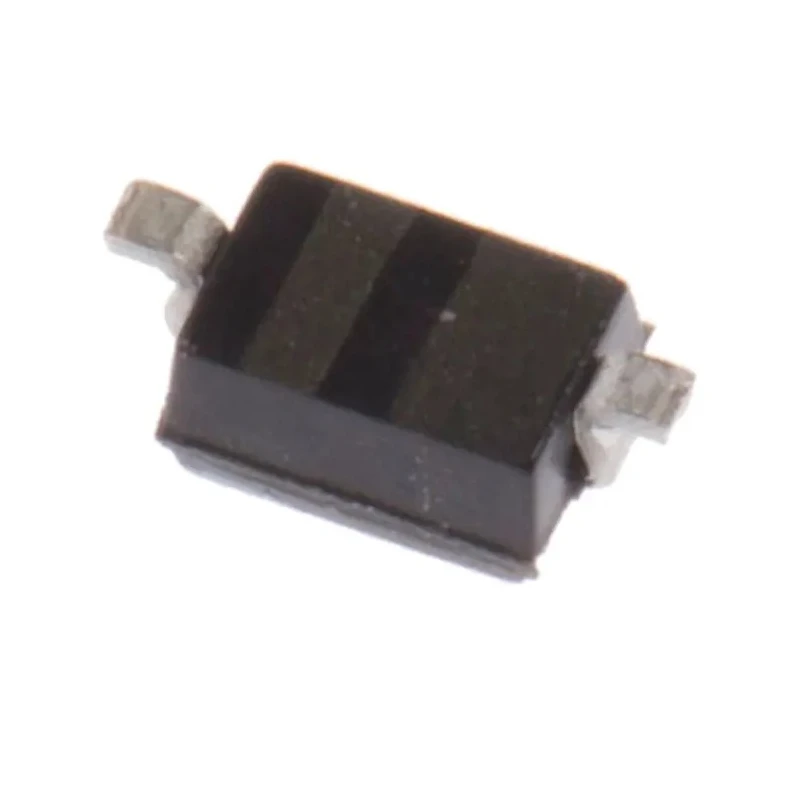

onsemi NSR0530HT1G Schottky Diode in a compact 2-pin SOD-323 surface mount package provides a maximum continuous forward current of 500 mA and peak reverse voltage rating of 30 V. This diode utilizes the Schottky barrier principle to achieve an optimized low forward voltage drop of 620 mV, which ensures efficient conversion and reduced power loss, making it suitable for low voltage, high-frequency rectification applications.
The device is designed for surface mount automated assembly, featuring a lightweight epoxy moulded case weighing only 11.7 mg, combined with stress protection guarding for improved durability in demanding industrial and commercial electronics applications. Its operating temperature range from -55°C to 150°C enables reliable performance in diverse environments including industrial, automotive, and power electronics sectors.
This Schottky diode offers a peak non-repetitive forward surge current of 2.5 A and a low peak reverse leakage current of 200 μA. The 2-pin design is straightforward for implementation in polarity protection, freewheeling diodes, and power rectification circuits in laboratory, manufacturing, and electronic device assembly settings. The diode is Pb-Free, supporting compliance to environmental regulations and optimized for automated board assembly processes.
This product is ideal for industrial, automotive, electronics manufacturing, and power supply protection applications. Package dimensions: 1.8mm length, 1.35mm width, 1mm height. Designed without specific automotive certifications but provides robust standard performance.
Epoxy moulding enhances mechanical stability and moisture resistance. Compact size ensures minimal PCB footprint.
Set your projects for success with the precise and efficient NSR0530HT1G Schottky Diode from onsemi, available for integration into advanced semiconductor electronic designs and power systems. Explore more semiconductor components in the EnvMart catalog for comprehensive solutions.
