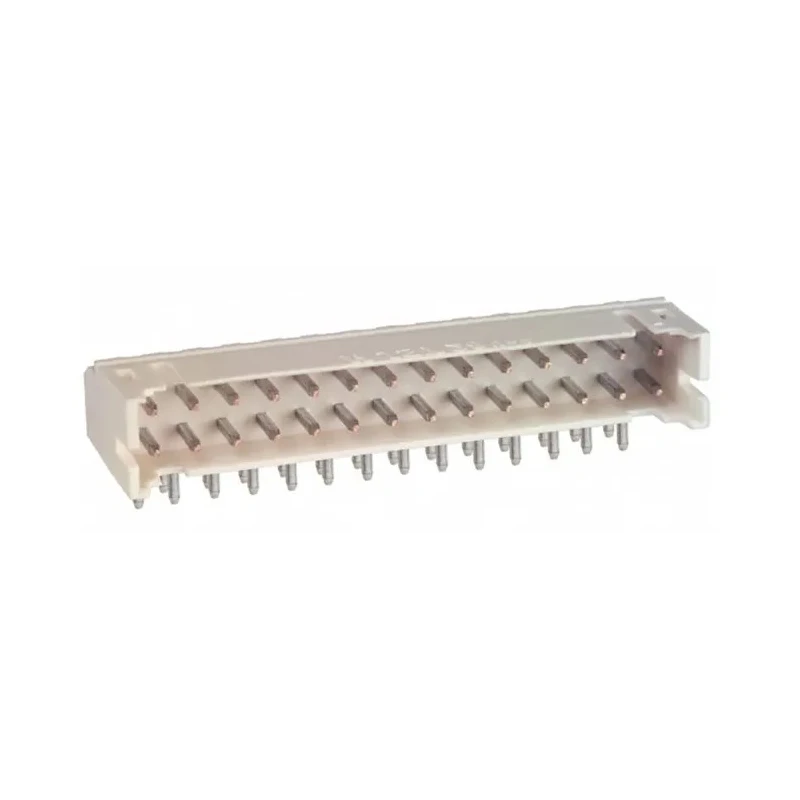

JST PHD Series Right Angle Through Hole PCB Header, 28 Contacts, 2 mm Pitch, 2 Row, Shrouded S28B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Right Angle Through Hole PCB Header, 28 Contacts, 2 mm Pitch, 2 Row, Shrouded S28B-PHDSS (LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S28B-PHDSS (LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	28
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The 2.0 mm pitch ensures a compact and precise fit on PCBs.
It features a right angle orientation for flexible board mounting options.
Constructed with copper alloy contacts plated in tin for reliable conductivity.
The component is shrouded to prevent incorrect mating and protect against contaminants.
Suitable for through hole mounting with solder termination type.
Supports a maximum current of 3A and voltage rating of 250V.
Operates effectively within a temperature range of -25°C to 85°C.
Designed with a male contact gender and a row pitch of 2 mm.

Product Description

JST S28B-PHDSS (LF)(SN) Right Angle Through Hole PCB Header is a high-density, shrouded wire-to-board connector from the PHD Series. It features 28 male contacts arranged in 2 rows with a 2 mm pitch, ensuring a compact layout with reliable electrical performance.

The connector is designed with a right angle orientation and through hole mount type, allowing for robust soldering on PCBs. Copper alloy material with tin plating of contacts ensures durability, excellent conductivity, and corrosion resistance.

The shrouded design offers enhanced protection against mis-mating and ingress of flux or other contaminants, improving connection reliability in various electronic assemblies. Rated to carry currents up to 3A with voltage tolerance of 250V, it is suitable for a wide range of power and signal applications.

Operating temperature ranges from -25°C to 85°C make this connector adaptable to diverse environmental conditions commonly encountered in industrial and electronic applications. The 2.0 mm pitch allows high-density PCB designs without sacrificing ease of assembly.

Shrouded contacts improve mating accuracy and prevent damage. Right angle design facilitates horizontal board mounting to optimize space. Copper alloy and tin plating provide conductivity and corrosion resistance. The connector supports wire-to-board system interfacing for secure electrical connections.

Standard through hole mounting enables robust mechanical and electrical joining. Wide operating temperature range suits industrial and commercial electronics. Rated for 3A current at 250V, adequate for many control and signal circuits.

This JST PHD Series PCB Header is well-suited for use in industrial electronics, automotive electronics, power equipment, instrumentation, and manufacturing applications requiring dependable PCB connections and signal integrity.

Explore more high-quality PCB Headers and connectors within EnvMart's Electronics & Electricals category for your electronic components and power connector needs.
