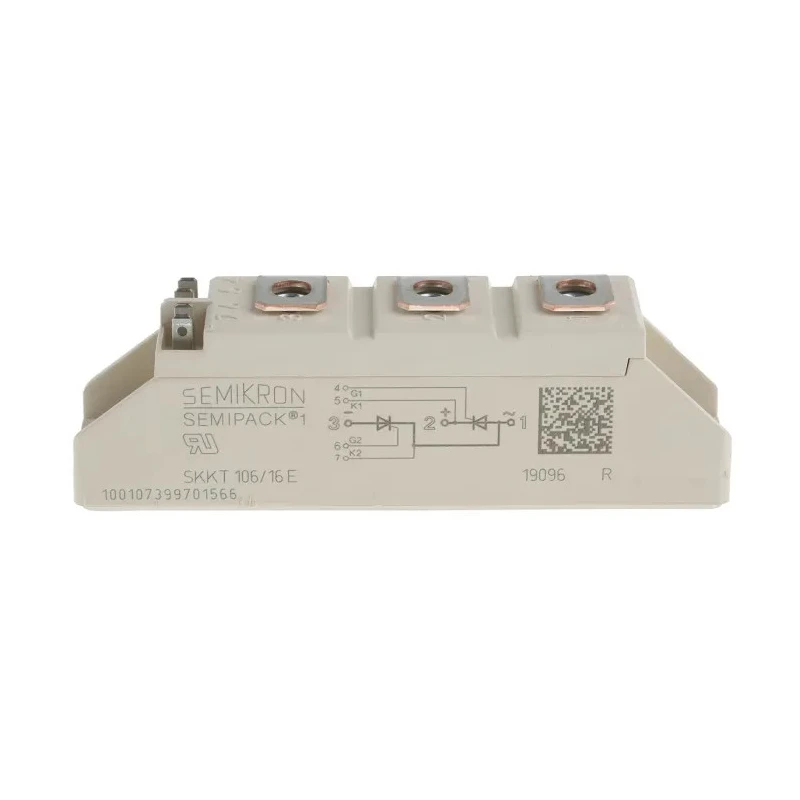

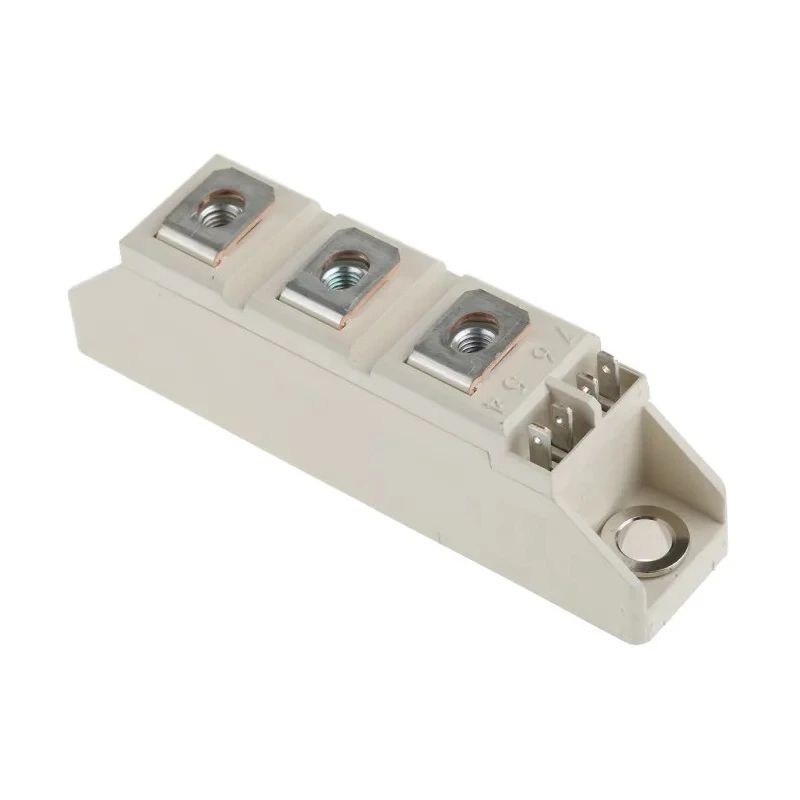

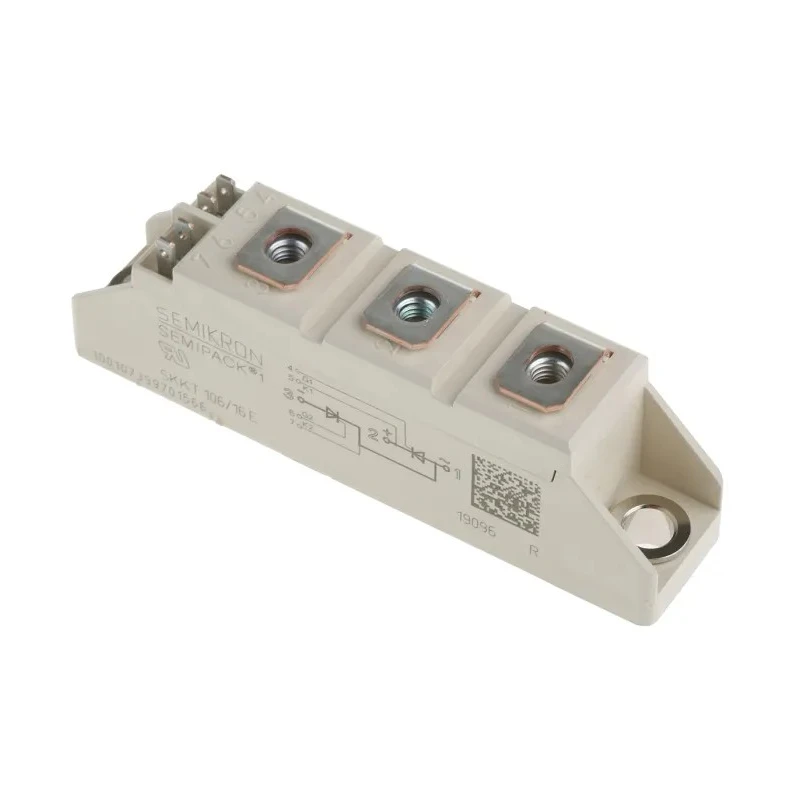

Semikron Danfoss Dual Thyristor Module 1600 V, 106 A 150 mA 2.25 kA 1.65 V SKKT 106/16 E

Semikron Danfoss SKKT 106/16 E is a dual thyristor module engineered with SCR technology, rated for 1600 V repetitive peak reverse voltage and 106 A average on-state current, ensuring robust performance in demanding power electronics applications.

Encapsulated in an A-46 package with a panel mount type and 7-pin configuration, this module handles surge currents up to 2.25 kA, providing reliable operation under transient conditions.

Its electrical characteristics include a maximum gate trigger current of 150 mA, gate trigger voltage of 3 V, and holding current of 250 mA, optimized for efficient switching control.

The module operates effectively across a wide temperature spectrum from -40°C to 130°C, making it suitable for industrial environments with thermal stresses. Applications include power control in battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits in industrial settings.

This dual thyristor module uses SCR technology for robust switching performance. Rated for 1600 V repetitive peak reverse voltage ensuring high voltage isolation. Surge current rating of 2.25 kA for transient overload handling.

Panel mount type design with 7 pins for easy integration. Wide operating temperature from -40°C to 130°C for reliable industrial use. Maximum gate trigger current is 150 mA for precise control. Holding current maximum of 250 mA for extended conduction periods.

Manufactured in Slovakia, the SKKT 106/16 E module meets stringent quality standards and is ideal for industrial, manufacturing, HVAC, and power supply management systems requiring solid-state switching.
