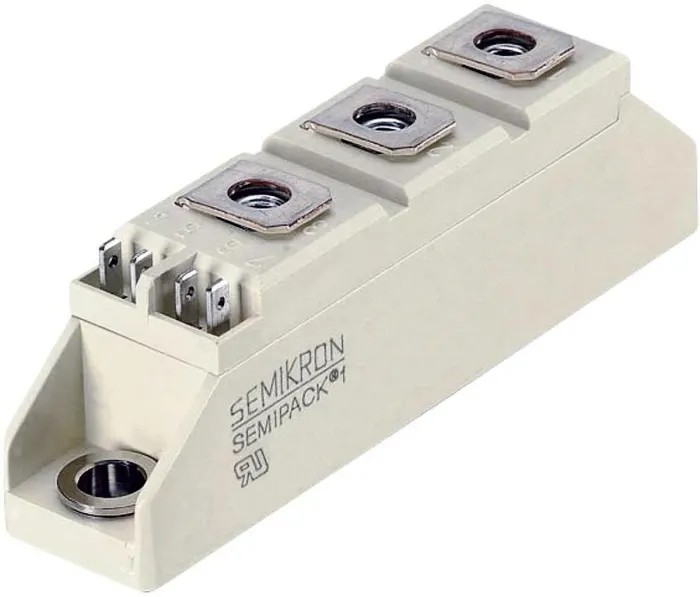

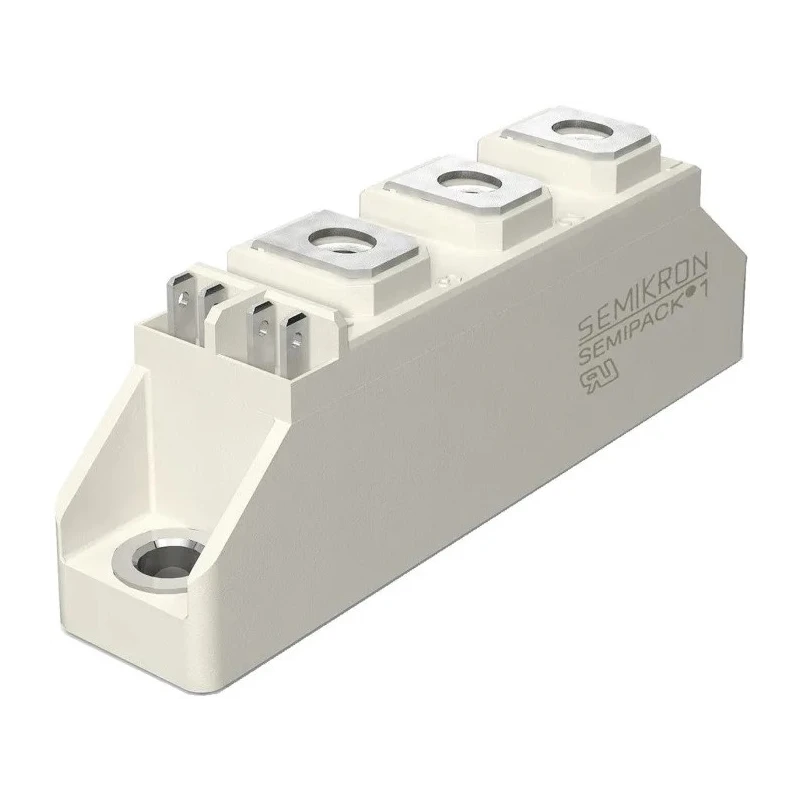

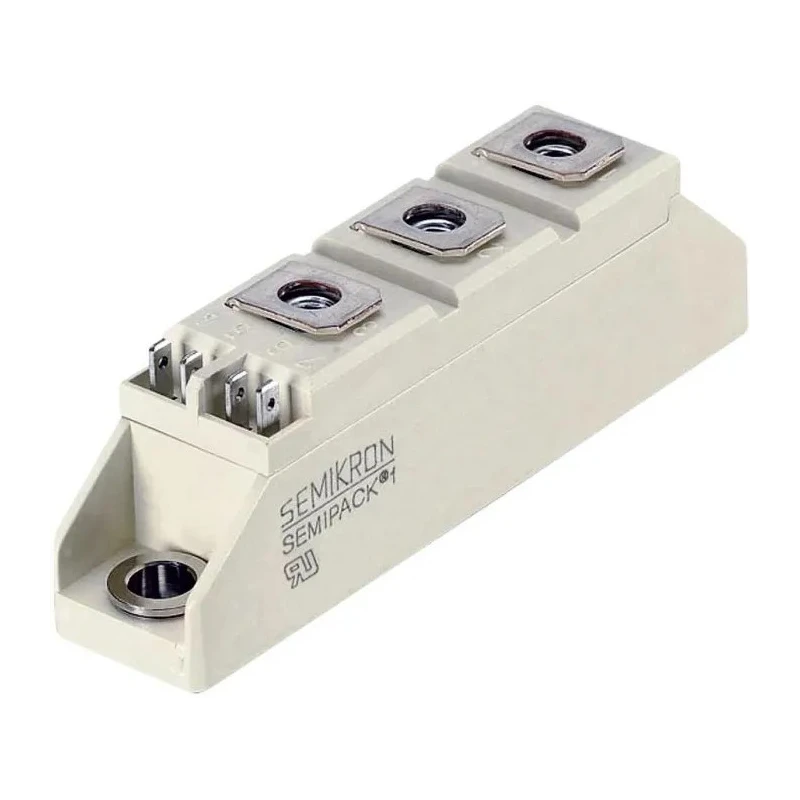

Semikron Danfoss Dual Thyristor Module 1800 V 106 A 150 mA 22 kA 1.5 V SKKT 106/18 E

Semikron Danfoss SKKT 106/18 E is a dual thyristor module designed for high-performance power electronics applications. This module features a solid-state SCR (Silicon Controlled Rectifier) configuration encapsulated in the A-42 package, optimized for panel mounting.

It has an average on-state current Irms rating of 106 A and supports a repetitive peak reverse voltage of 1800 V, making it suitable for medium power switching environments including battery chargers, welders, temperature and speed control circuits, and regulated power supplies.

The module's surge current rating of 22 kA and maximum operating temperature of 150°C ensure reliable operation under demanding conditions. The device requires a maximum gate trigger current of 150 mA and a gate trigger voltage up to 3 V, supporting stable switching characteristics.

Operating temperature spans from -40°C to +150°C, enabling use in industrial and commercial applications with varying ambient environments. Its 2-pin configuration facilitates easy electrical connection. The peak on-state voltage of 1.5 V contributes to efficient conduction with minimal loss.

This product is a UL recognized component, guaranteeing compliance with recognized safety standards, although it does not have automotive certifications. Integrates dual SCR thyristors for efficient switching. Features a repetitive peak reverse voltage rating of 1800 volts.

Surge current capability up to 22 kiloamperes ensures robustness. Panel mounting type simplifies installation in systems. Maximum gate trigger current is 150 milliamperes for reliable gate control. Operates in a temperature range from -40°C to 150°C.

2-pin count designed for ease of connection. Peak on-state voltage is 1.5 volts ensuring low conduction losses. Maximum gate trigger voltage is 3 volts for precise gate activation. Complies with UL recognition but without additional standards or automotive certification.

This dual Thyristor Module is ideal for various industrial, manufacturing, and commercial power control applications where robust switching and voltage handling are critical. It is also suited for laboratory and electronic component development sectors.
