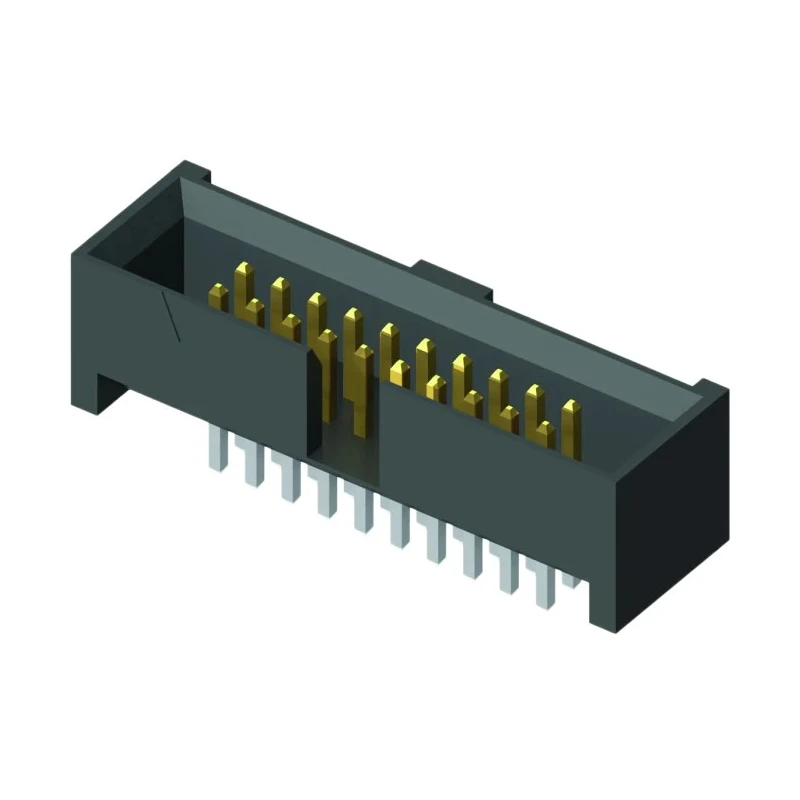

Samtec SHF Series Straight Through Hole Shrouded PCB Header 26 Contacts 1.27mm Pitch 2 Row SHF-113-01-L-D-TH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | SHF-113-01-L-D-TH |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 1.91mm |
| Mating Pin Length | 3.05mm |
Key Features
- Features a 1.27 mm pitch for precise board compatibility.
- Contains 26 gold-plated phosphor bronze contacts for reliable electrical connection.
- Housing made from liquid crystal polymer ensures durability and heat resistance.
- Rated for a maximum operating temperature of 125°C and minimum of -55°C.
- Designed with a polarizing notch for accurate mating and alignment.
- Through hole mount type suitable for robust mechanical connection.
- Contact tail pin length of 1.91 mm and mating pin length of 3.05 mm for secure soldering.
Product Description
Samtec SHF-113-01-L-D-TH is a high-quality PCB header from the SHF Series featuring a straight through hole design with shrouded housing and a double row configuration. This PCB header provides 26 contacts arranged at a 1.27 mm pitch, optimized for wire-to-board connectivity applications in electronic assemblies.
Constructed with a housing made from liquid crystal polymer, it delivers excellent mechanical strength and thermal stability to support operations between -55°C to 125°C. The contacts are made from phosphor bronze and are gold plated, ensuring a reliable and corrosion-resistant electrical interface.
The shrouded design includes a polarizing notch, which enhances proper mating with corresponding connectors, minimizing the risk of incorrect connections. Mounting is done through hole for secure mechanical installation on printed circuit boards, suitable for demanding industrial, commercial, and electronic manufacturing applications.
The product is engineered for solder termination with male contacts featuring a tail pin length of 1.91 mm and mating pin length of 3.05 mm, supporting robust solder joints and consistent electrical performance.
1.27 mm pitch and 2 row shrouded configuration for precise and secure board mounting. Gold plated phosphor bronze contacts for high conductivity and corrosion resistance. Liquid crystal polymer housing provides high durability and thermal resistance.
Wide operating temperature range from -55°C to 125°C ensures versatility. Polarizing notch prevents mismating and ensures correct connector orientation. Through hole mounting enhances mechanical stability on PCBs. Ideal for industrial, laboratory, manufacturing, and electronic applications requiring reliable PCB connections.
Samtec products are recognized for their engineering quality and industry reliability. For additional technical resources, 3D mechanical models, and design support, explore further in PCB Headers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header are arranged at a pitch of 1.27 mm.
This model features a total of 26 contacts.
The maximum operating temperature for this header is 125°C.
The housing is made from liquid crystal polymer, providing durability and heat resistance.
This model uses solder termination for its contacts.
The tail pin length of the contacts is 1.91 mm.
It is designed for a wire-to-board connector system.
This PCB header is shrouded, which helps prevent mismating during connection.
The minimum operating temperature for this model is -55°C.
The contacts are made from phosphor bronze and are gold plated for reliable electrical connection.
This model has 2 rows of contacts.
The current rating for this PCB header is 3A.
