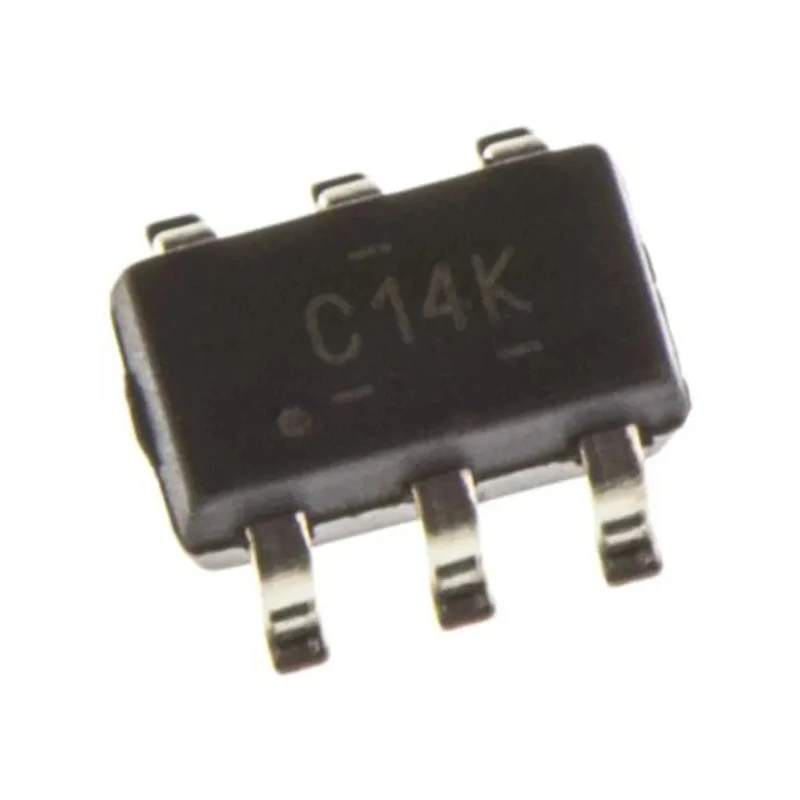

Texas Instruments High Side Current Limit Load Power Switch IC 6-Pin SOT-23 TPD3S014DBVR

Texas Instruments TPD3S014DBVR is a high side, current limit load power switch integrated circuit packaged in a compact 6-Pin SOT-23 surface mount package. It is engineered for efficient power management in small form factor electronic devices requiring reliable protection and switching capabilities.

The device features a low switch on resistance of 130 milliohms which minimizes power loss and heat generation, allowing for improved energy efficiency. It operates at a supply voltage range between 4.5V to 5.5V, making it suitable for 5V power rail applications.

Designed specifically for single output high side applications, the IC integrates multiple protection mechanisms including electrostatic discharge (ESD) protection, over voltage protection (OVP), and over current protection (OCP). These features ensure safety and durability during transient and fault conditions.

The small SOT-23 package dimensions (3.05mm length, 1.75mm width, and 1.3mm height) enable compact PCB layouts, ideal for space-constrained industrial, consumer electronics, and automotive electronics designs with operating temperature ranges from -40°C to 85°C.

It complies with RoHS environmental directives and supports USB 3 interface compliance with 4-channel ESD and surge protection. The IC’s low leakage current and ultra-small package make it suitable for high performance applications requiring reliable power switch solutions.

Low 130mΩ switch on resistance for efficient conduction. Wide operating voltage range between 4.5V and 5.5V. 6-pin SOT-23 space saving surface mount package. Integrated ESD, OVP, and OCP protection for robust circuit safety.

RoHS compliant for environmentally safe use. Operating temperature: -40°C to 85°C for harsh environments. Compatible with USB 3 interface standards including EMI protection. Compact dimensions and low leakage current enhance board design flexibility.

This power switch IC is ideal for industrial power management circuits, consumer electronics requiring compact protection solutions, automotive applications demanding reliability, and USB 3 compliant devices for high-speed data transfer safety.
