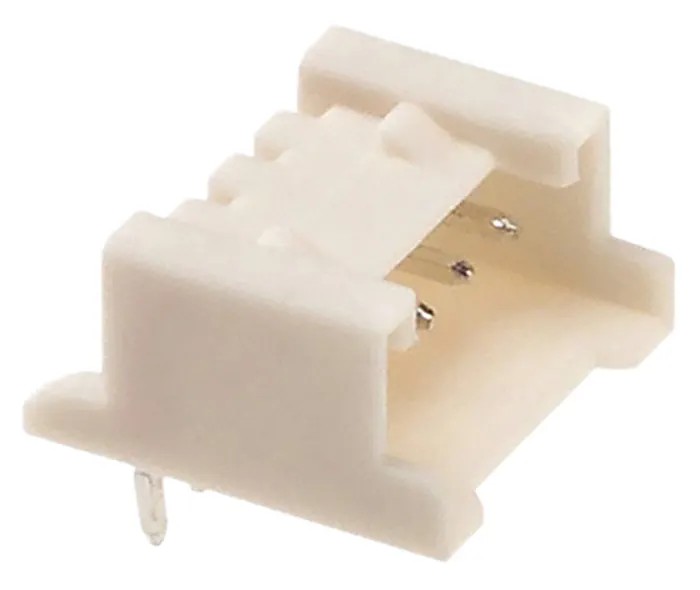

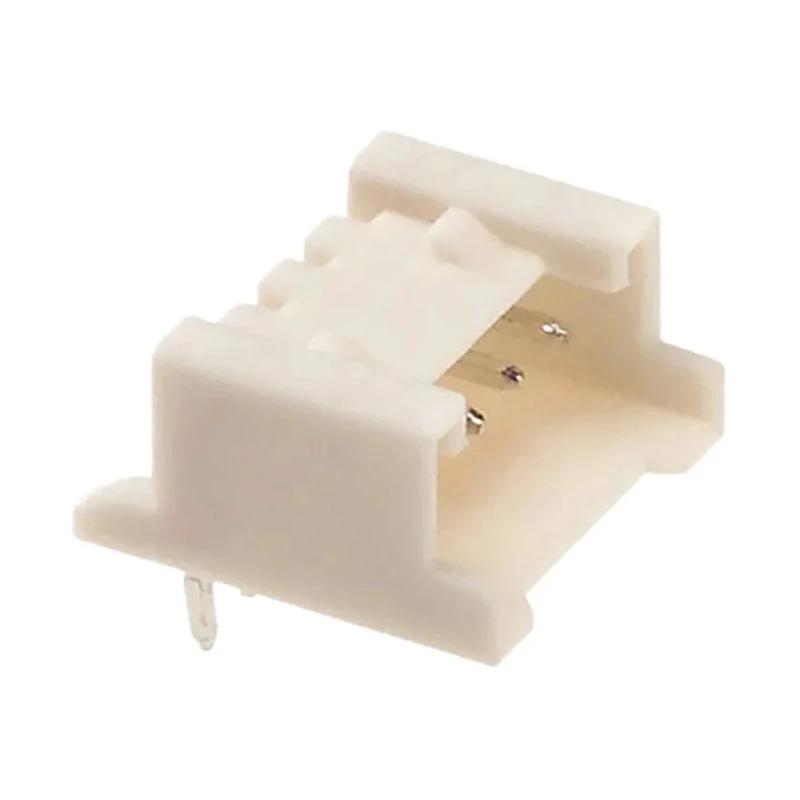

Molex Sherlock Series Right Angle Through Hole PCB Header 4 Contacts 2 mm Pitch 1 Row Shrouded 35363-0460
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Sherlock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 3.7mm |
Key Features
- Features a shrouded design for reliable mating retention.
- Constructed with nylon housing and brass contacts plated with tin.
- Right angle orientation for precise PCB mounting.
- Capable of handling a current rating of 2A and a voltage rating of 125V.
- Suitable for solder termination with a single row of 4 contacts.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Tail pin length is 3.2 mm with mating pin length of 3.7 mm.
- Meets the needs of industrial and electronic applications requiring secure PCB connectivity.
Product Description
Molex 35363-0460 Sherlock Series Right Angle Through Hole PCB Header offers a robust solution for wire-to-board electrical connections. The product features a 2.0 mm pitch with 1 row consisting of 4 male contacts, and is designed with a shrouded nylon housing ensuring secure mating and mechanical reliability. The brass contacts are tin plated to provide good conductivity and corrosion resistance.
Designed for through-hole mounting on PCBs, this header operates effectively within a temperature range of -40°C to 105°C and supports a current of 2A at 125V, making it suitable for a wide variety of electronic and industrial applications. The right angle orientation optimizes board space and eases cable routing.
The Sherlock connector system from Molex incorporates polarizing ribs and a wide latch area that creates an audible click upon engagement, guaranteeing secure and reliable connections. Its compatibility with the Molex Sherlock 35507 series wire-to-board housing further enhances system flexibility.
Shrouded 4-contact right angle header with 2 mm pitch. Nylon housing for durable mechanical protection. Tin plated brass contacts for consistent electrical performance. Through-hole mount for sturdy PCB attachment. Rated for 2A current and 125V voltage.
Operating temperature range from -40°C to 105°C. Compatible with Molex Sherlock series wire-to-board housings. Ideal for industrial, manufacturing, electronic assembly, and telecommunications applications requiring reliable PCB connectors.
This product is made in Korea, Republic Of, and is supplied new. Explore more from Molex and related PCB header components on EnvMart for your electronic assembly and design requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2A and a voltage of 125V.
It features a 2 mm pitch and has 4 male contacts arranged in a single row.
The housing is made of nylon, and the contacts are brass plated with tin for improved conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This unit is designed for through-hole mounting, ensuring a sturdy attachment to the PCB.
The tail pin length is 3.2 mm, while the mating pin length is 3.7 mm.
Yes, it is compatible with the Molex Sherlock 35507 series wire-to-board housings, enhancing system flexibility.
It uses solder termination for secure connections.
This model has a right angle orientation, which helps optimize board space and cable routing.
It is suitable for industrial, manufacturing, electronic assembly, and telecommunications applications requiring reliable PCB connectivity.
This product is made in the Republic of Korea.
It features a shrouded design for reliable mating retention and incorporates polarizing ribs and a wide latch area for secure connections.
