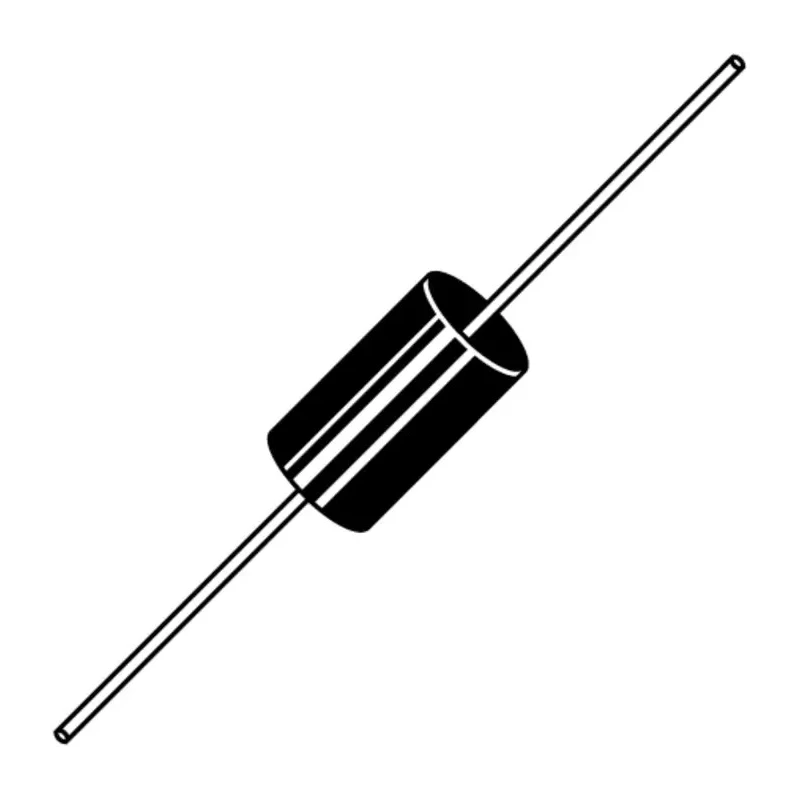

DiodesZetex 40 V 5 A Schottky Diode Through Hole DO-201AD Package SB540-T

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 40 V 5 A Schottky Diode Through Hole DO-201AD Package SB540-T

Name: DiodesZetex 40 V 5 A Schottky Diode Through Hole DO-201AD Package SB540-T
Brand: DiodesZetex
SKU: 385154
Price: 0.28 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	DiodesZetex
Length	9.5mm
Model	SB540-T
Width	4.8mm
Mount Type	Through Hole
Series	SB540
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	550mV

Key Features

This Schottky diode features a DO-201AD package type suitable for through-hole mounting.
It supports a maximum continuous forward current of 5 A, ensuring high current handling.
The device operates reliably within a temperature range of -65°C to 150°C.
Peak reverse repetitive voltage is rated at 40 V, providing robust blocking performance.
Maximum forward voltage drop is 550 mV, increasing energy efficiency in power rectification.
With a peak non-repetitive forward surge current of 150 A, it withstands transient loads effectively.
The diode features a length of 9.5 mm, diameter 5.3 mm, and width 4.8 mm for compact installation.
Manufactured to FBI standards, this diode delivers excellent thermal stability and reliability.

Product Description

DiodesZetex SB540-T is a high-performance Schottky diode designed for electronic applications requiring efficient rectification and low forward voltage drop. This 2-pin diode is housed in a DO-201AD through-hole package, making it ideal for conventional circuit board assembly methods.

The diode operates with a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 40 V, supporting robust power handling capabilities. Its maximum forward voltage of 550 mV reduces energy losses, improving overall circuit efficiency. The device can reliably function in harsh environments with operating temperatures ranging from -65°C to 150°C.

Constructed to FBI standards, the SB540-T delivers excellent thermal stability and high reliability, suitable for applications in power supplies, automotive electronics, and general semiconductor usage.

The diode’s compact dimensions - length 9.5 mm, diameter 5.3 mm, and width 4.8 mm - facilitate ease of integration into existing designs. With a peak non-repetitive forward surge current of 150 A, the device can tolerate transient current spikes without damage.

The SB540 series by DiodesZetex provides next-generation Schottky barrier rectifiers, combining low forward voltage with the thermal robustness typical of PN epitaxial diodes. This makes the SB540-T an excellent choice for industrial, automotive, manufacturing, and power conversion applications requiring reliable, efficient diode solutions.

This Schottky diode features a DO-201AD package type suitable for through-hole mounting. Supports a maximum continuous forward current of 5 A for efficient power handling. Operates reliably within a temperature range of -65°C to 150°C for versatile use.

Peak reverse repetitive voltage rated at 40 V ensures strong blocking capacity. Maximum forward voltage drop of 550 mV reduces power loss in circuits. Capable of withstanding 150 A peak non-repetitive forward surge current.

Compact size with length 9.5 mm, diameter 5.3 mm, and width 4.8 mm. Manufactured to FBI standards for superior thermal stability and durability. Configured as a single diode with 2 pins for straightforward circuit integration.
