DiodesZetex Through Hole 100 V 3 A Schottky Diode DO-201AD SB3100-T

Free Delivery in India | Lowest Global Shipping Charges

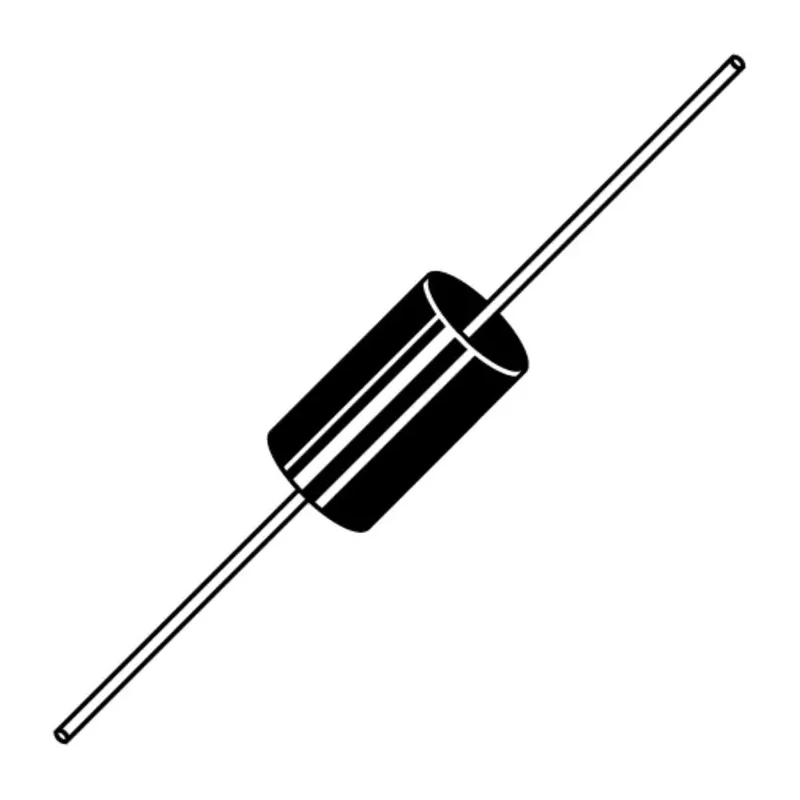

DiodesZetex Through Hole 100 V 3 A Schottky Diode DO-201AD SB3100-T

Name: DiodesZetex Through Hole 100 V 3 A Schottky Diode DO-201AD SB3100-T
Brand: DiodesZetex
SKU: 385151
Price: 0.53 USD
Availability: InStock



Category Schottky Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	DiodesZetex
Length	9.5mm
Model	SB3100-T
Width	4.8mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	790mV

Key Features

The diode features a single Schottky rectifier configuration with a low forward voltage of 790 mV.
It supports peak reverse repetitive voltage of 100 V and peak non-repetitive forward surge current of 100 A.
The diode operates reliably from a minimum temperature of -65°C up to a maximum of 150°C.
It is constructed with a compact form factor having a length of 9.5 mm, diameter of 5.3 mm, and width of 4.8 mm.
Its pin count is 2, suitable for through-hole mounting on circuit boards.
Designed for high thermal stability and reliability for power electronic applications requiring Schottky barrier diodes.

Product Description

DiodesZetex SB3100-T is a 2-pin Schottky diode housed in a DO-201AD through-hole package, rated for a peak repetitive reverse voltage of 100 V and a maximum continuous forward current of 3 A. This component exhibits a low forward voltage drop of just 790 mV, which helps enhance efficiency in power rectification applications.

The diode has a single rectifier configuration optimized for thermal stability and high reliability, making it well-suited for industrial and commercial electronic circuits requiring fast recovery and low power loss characteristics.

Operating over a wide temperature range from -65°C to 150°C, the SB3100-T ensures dependable performance even under demanding environmental conditions. It supports surge currents up to 100 A for non-repetitive forward surge events, providing resilience against transient electrical stresses.

Physically, the diode measures 9.5 mm in length, 5.3 mm in diameter, and 4.8 mm in width. Its robust design and standard DO-201AD package type facilitate easy assembly in through-hole mounting designs on printed circuit boards (PCBs).

This Schottky diode is ideal for use in power supply rectification, voltage clamping, and freewheeling diode applications in industrial equipment, power management modules, and consumer electronics.

The diode features a single Schottky rectifier configuration with a low forward voltage of 790 mV. It supports peak reverse repetitive voltage of 100 V and peak non-repetitive forward surge current of 100 A. The diode operates reliably from a minimum temperature of -65°C up to a maximum of 150°C.

It is constructed with a compact form factor having a length of 9.5 mm, diameter of 5.3 mm, and width of 4.8 mm. Its pin count is 2, suitable for through-hole mounting on circuit boards. Designed for high thermal stability and reliability for power electronic applications requiring Schottky barrier diodes.

EnvMart offers this DiodesZetex SB3100-T Schottky Diode as a trusted electronic component for engineers and technicians engaged in designing efficient and reliable electronic power circuits. Explore more semiconductor devices and components in our dedicated Electronics & Electricals category.
