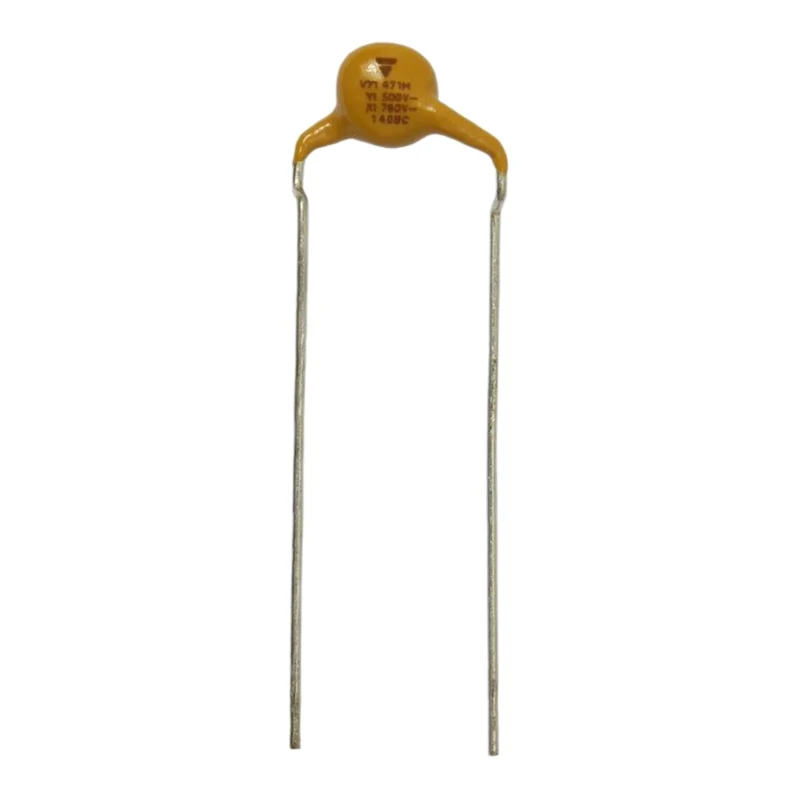

Vishay Single Layer Ceramic Capacitor 4.7 nF 500 V ac, 760 V ac ±20% Y5U Dielectric Through Hole Radial VY1472M61Y5UC63V0

Vishay VY1472M61Y5UC63V0 single layer ceramic capacitor offers a capacitance of 4.7 nF with ±20% tolerance and a rated voltage of 500 V ac continuous and 760 V ac pulse. This capacitor features a Y5U dielectric material and belongs to the VY1 series known for extended temperature operation and high reliability.

The capacitor is constructed with a ceramic disc silver-plated on both sides and encapsulated in a flame retardant epoxy resin for enhanced safety and resistance. The radial connection leads are made of tin copper clad steel, ensuring durable and stable electrical connections.

It operates effectively within a temperature range of -40°C to a maximum of 125°C, making it suitable for demanding industrial applications. The capacitor complies with international standards including IEC 60384-14, CSA, DIN EN 60384-14, and is RoHS compliant, ensuring environmental safety and quality assurance.

Typical applications include protection across-the-line circuits, line bypass filtering, and antenna coupling in electronic and industrial systems. The radial through hole mounting design facilitates easy insertion and soldering on printed circuit boards.

Capacitance of 4.7 nF with ±20% tolerance. Voltage rating: 500 V ac continuous, 760 V ac pulse. Y5U dielectric material. Operating temperature range from -40°C to 125°C max. Radial terminal type with through hole mount. Encapsulated in flame retardant epoxy resin for safety.

Silver-plated ceramic disc construction. Complies with IEC 60384-14, CSA, DIN EN 60384-14, and RoHS standards. Suitable for industrial, electronics, and power applications.

The Vishay VY1472M61Y5UC63V0 capacitor supports various electronic and industrial applications where reliability and temperature resistance are critical, such as power supply circuits, filtering, and antenna systems. Its robust construction and compliance with international standards make it a dependable choice for engineers and designers.
