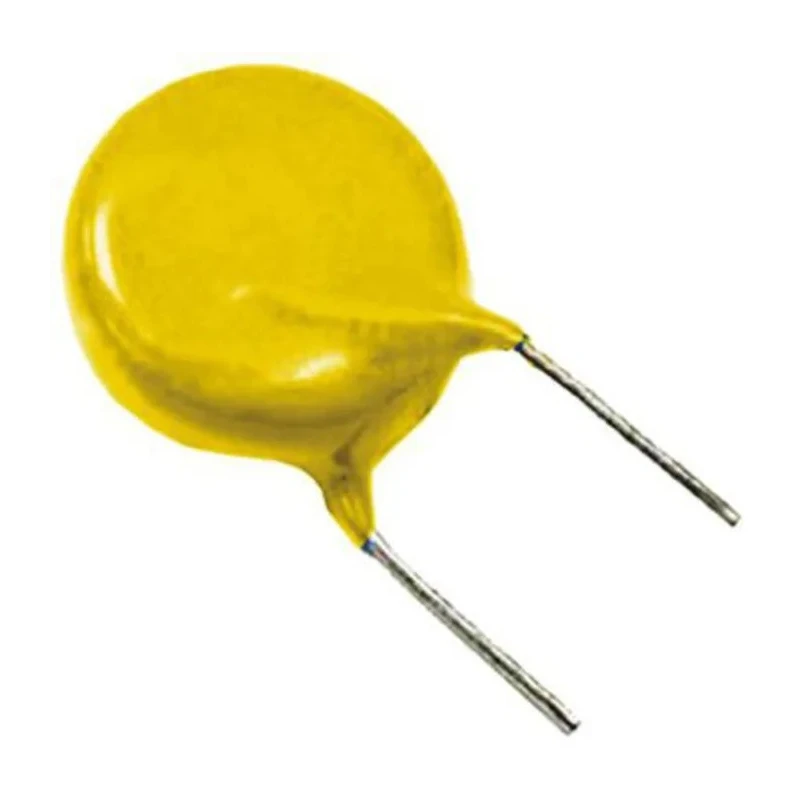

Vishay Single Layer Ceramic Capacitor 1 nF 300V AC ±20% Y5V Dielectric VY2 Series Through Hole 125°C Max VY2102M29Y5VS63V7

The Vishay VY2102M29Y5VS63V7 is a single layer ceramic capacitor from the VY2 Series, designed for demanding electronic applications requiring high reliability and safety. With a capacitance rating of 1 nF and a maximum working voltage of 300V AC, this capacitor is well-suited for use in line-to-ground and interference suppression circuits in both commercial and industrial settings.

This capacitor uses a Y5V dielectric, ensuring stable operation and reliable performance over a wide operating temperature range from as low as -40°C to a high of 125°C. The ±20% tolerance provides consistent capacitance values for precise electronic designs. Its compact ceramic disc body features silver-plated layers and is encapsulated in a flame retardant epoxy resin, ensuring both electrical performance and enhanced safety.

Engineered for through hole mounting, the radial lead terminals are constructed of tinned copper clad steel to secure the component firmly on printed circuit boards. With a height of 11.5 mm, a diameter of 7.5 mm, and a width of 5 mm, the capacitor is suitable for compact assemblies where board space is a premium.

The Vishay VY2102M29Y5VS63V7 capacitor complies with multiple international safety and performance standards, including RoHS, IEC 60384-14, CSA, and DIN EN 60384-14, making it accepted for use in a variety of global marketplaces. Typical use cases include across-the-line filtering, line-by-pass, and antenna coupling functions, serving reliable protection and noise suppression in power supplies, industrial controllers, and household appliances.

This capacitor features a high suppression class (Y2/X1), a dissipation factor of 2.5%, and a safe, flame retardant build for secure operation even in harsh environments. The product's high reliability ensures extended service life, reducing maintenance and replacement costs in critical electronic systems.

Vishay's VY2 Series single layer ceramic capacitors are widely used in the electronics industry, especially where high voltage capability and safety are priorities. Their versatility and compliance with key standards make them ideal solutions for manufacturers and designers aiming for durable and safe electronic device construction.
