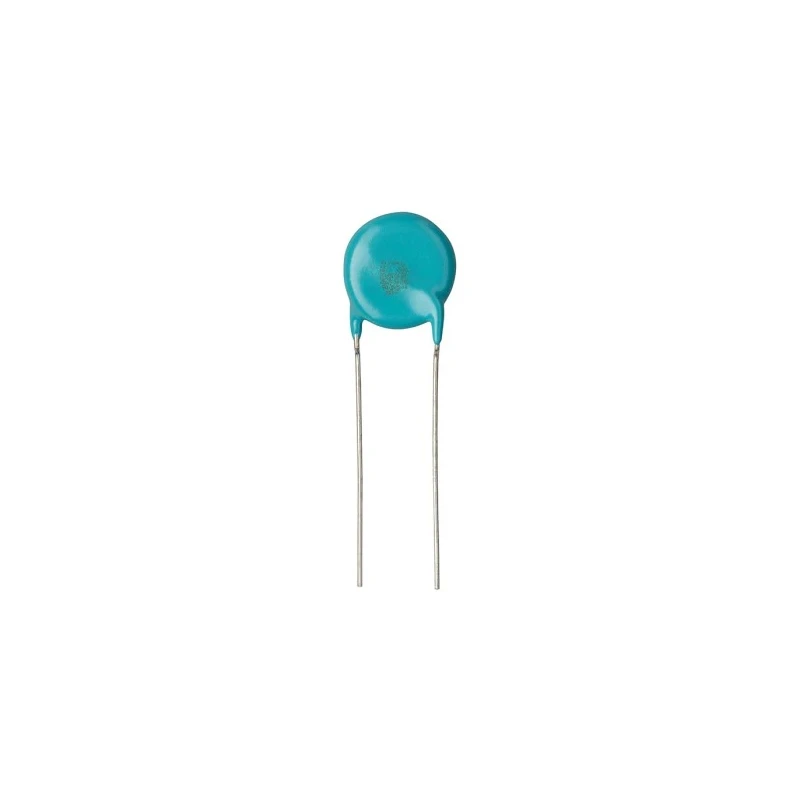

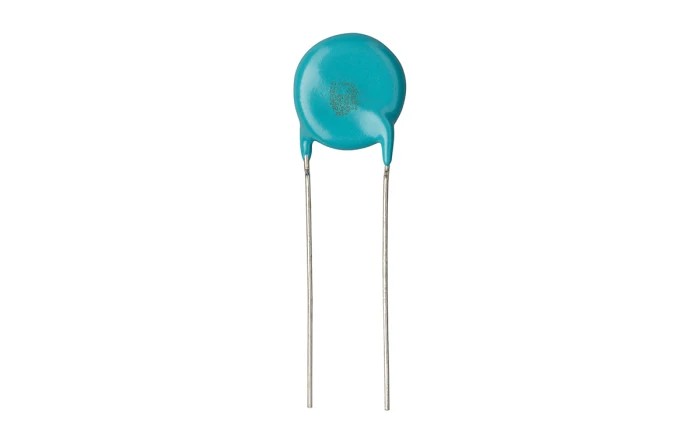

Murata Single Layer Ceramic Capacitor 33pF 1.5kV DC, 500V AC ±10% SL (JIS) Through Hole, DE1 Series DE11XRA330KA4BQ01F
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 1.5, 500kV dc |
| Diameter | 7mm |
| Brand | Murata |
| Model | DE11XRA330KA4BQ01F |
| Packaging | Bulk |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | DE1 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 33pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Axial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Dielectric | SL (JIS) |
Key Features
- Provides 33 picofarads capacitance for high reliability performance.
- Rated for 1.5kV DC and 500V AC operation, suitable for high voltage circuits.
- ±10% tolerance ensures stable capacitance under varying conditions.
- SL (JIS) dielectric material for consistent electrical properties.
- Axial through hole design simplifies PCB assembly and integration.
- Wide operating temperature range from -40°C to 125°C for industrial use.
- Bulk packaging format ideal for volume manufacturing and assembly.
- Compliance with REACH and RoHS environmental regulations.
Product Description
The Murata DE11XRA330KA4BQ01F is a single layer ceramic capacitor engineered for precision and reliability in modern electronic and industrial power circuits. With a capacitance of 33pF, it is well-suited for signal coupling, decoupling, RF, and high voltage filtering applications. Its rated voltage of 1.5kV DC and 500V AC makes it highly suitable for demanding power supplies and protection circuits where robust insulation and dielectric integrity are critical.
This capacitor offers a ±10% tolerance and utilizes an SL (JIS) class dielectric ceramic material, providing excellent stability of capacitance over a wide temperature and frequency range. The axial lead configuration is designed for through hole mounting, enabling secure, low-impedance connections in both industrial and professional-grade electronic assemblies.
The component supports a minimum operating temperature of -40°C and a maximum of 125°C, making it suitable for use in challenging environments including industrial, laboratory, telecommunications, and control systems. With a diameter of 7mm and width of 5mm, its compact form factor allows for efficient layout on densely populated printed circuit boards.
Compliant with major international standards such as REACH and RoHS, this capacitor is well positioned for use in applications demanding both electrical performance and environmental responsibility. The bulk packaging format is optimized for high-volume manufacturing lines and automatic assembly processes.
The Murata DE11XRA330KA4BQ01F is a versatile choice for designers looking for a combination of high voltage capability, precision, and reliability in a compact form factor. Explore the full range of Murata Single Layer Ceramic Capacitors on EnvMart for more options to suit your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 33 picofarads (pF).
It is rated for 1.5kV DC and 500V AC operation, making it suitable for high voltage circuits.
The capacitor has a tolerance of ±10%, ensuring stable capacitance under varying conditions.
The capacitor has a diameter of 7mm and a width of 5mm.
It features an axial through hole design for easy PCB assembly and integration.
This capacitor operates within a temperature range of -40°C to 125°C.
It utilizes an SL (JIS) class dielectric material for consistent electrical properties.
The capacitor is provided in bulk packaging, which is ideal for volume manufacturing and assembly.
It complies with REACH and RoHS environmental regulations.
This model has 2 pins, suitable for through hole mounting.
The dissipation factor for this capacitor is 2.5%.
It is well-suited for signal coupling, decoupling, RF, and high voltage filtering applications.
