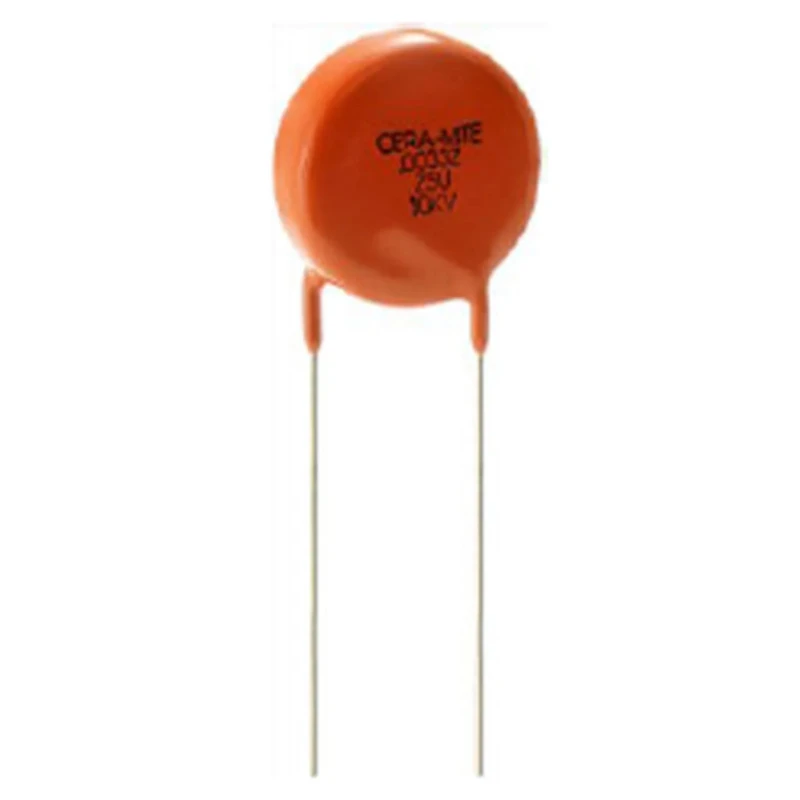

Vishay Single Layer Ceramic Capacitor 3.3 nF 10kV DC Z5U Dielectric Through Hole 105°C Max 615R100GAD33

The Vishay 615R100GAD33 is a single layer ceramic capacitor specifically engineered for high voltage use in demanding electronic and electrical circuits. It is designed with a 3.3 nF capacitance and is rated for up to 10kV DC voltage, making it ideal for pulse, DC, and high voltage filtering applications. The capacitor features Z5U dielectric material, which provides stable electrical properties and reliable operation over a broad range of environmental conditions.

This unit employs a through hole mounting style, making it easy to install onto various printed circuit boards. The robust ceramic disc construction is coated on both sides with silver and further protected by flame retardant epoxy resin, enhancing both safety and longevity. With an ability to operate at temperatures up to 105°C, it meets the requirements for commercial and industrial equipment exposed to elevated ambient temperatures.

Typical applications for this capacitor include DC and pulse high voltage circuits, televisions, monitors, switched mode power supplies (SMPS), and X-ray equipment. The capacitor’s -20% to +80% tolerance range allows it to accommodate capacitance drift, further supporting operation in environments with varying temperature or voltage stress.

The component complies with RoHS and EC standards, and its Class II suppression classification ensures suitability for noise filtering and transient suppression. Radial terminals with tinned copper leads simplify the soldering and board assembly process, and the 2-pin design ensures reliable electrical contact and minimal installation effort.

Physically, the capacitor has a disc diameter of 24.9 mm and width of 9.9 mm, allowing it to fit compactly within most circuit layouts while still providing the high voltage isolation required. Its ceramic build, high reliability, low loss, and quality control from a global brand make it a trusted choice for professional equipment manufacturers and maintenance engineers alike.

Applications span across industrial electronics, medical equipment (excluding implantable or support claims), laboratory instruments, power conversion devices, and high-voltage laboratory setups. The Vishay 615R100GAD33 ensures stable high voltage operation where safety, durability, and performance are critical factors.
