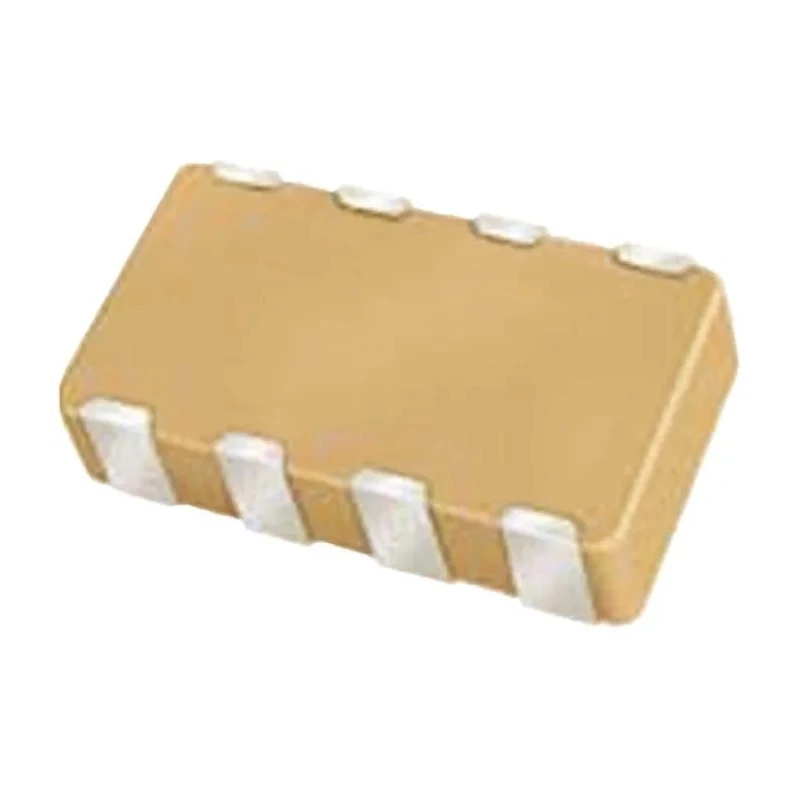

KYOCERA AVX Array Capacitor 470 pF 50V DC -10% 4 Way C0G Dielectric Surface Mount 0612 W3A Series W3A45A471KAT2A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V dc |
| Brand | KYOCERA AVX |
| Height | 1.35mm |
| Length | 1.6mm |
| Model | W3A45A471KAT2A |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | W3A |
| Maximum Operating Temperature | 125°C |
| Capacitance | 470pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0612 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Tolerance ± | -10% |
| Number of Capacitors | 4 |
Key Features
- Capacitance value is precisely 470 picofarads with a tolerance of minus 10 percent.
- Utilizes C0G dielectric for excellent stability and low loss.
- Features a 4-way array configuration minimizing PCB space by less than 50 percent compared to discrete capacitors.
- Package size is 0612 surface mount, dimensions 3.2 mm width by 1.6 mm length and 1.35 mm height.
- Rated for a maximum operating temperature of 125 degrees Celsius and minimum of minus 55 degrees Celsius.
- Complies with the automotive standard AEC-Q200 ensuring durability for automotive applications.
- Delivered in tape and reel packaging compatible with automated assembly processes.
Product Description
KYOCERA AVX W3A45A471KAT2A Array Capacitor is a high-quality, surface mount passive electronic component featuring four 470 pF capacitors integrated into a single array. Designed in the 0612 package size, it is optimized for compactness and efficient space utilization on printed circuit boards.
This capacitor array employs C0G (NP0) dielectric material, providing superior temperature stability and low electrical losses, making it suitable for precision filtering, timing circuits, and frequency control applications.
The device operates reliably over the broad temperature range from -55°C to 125°C, meeting stringent automotive grade AEC-Q200 standards for performance and endurance. The rated voltage of 50V DC supports low-voltage electronic circuit requirements.
Its configuration as a 4-way capacitor array allows significant space savings on PCB assemblies, reducing layout complexity and placement costs compared to equivalent discrete components. The product is delivered on tape and reel, supporting streamlined pick-and-place manufacturing techniques.
Ideal for industrial, automotive, communications, and consumer electronics, the W3A series array capacitors offer practical solution to design engineers seeking high reliability and efficient board layout.
Capacitance value is precisely 470 picofarads with a tolerance of minus 10 percent. Utilizes C0G dielectric for superior stability and low loss. 4-way array design minimizes PCB area usage, reducing placement cost. Compact 0612 surface mount package dimensions: 3.2mm width × 1.6mm length × 1.35mm height.
Temperature rating from -55°C to 125°C meets automotive and industrial standards. AEC-Q200 qualification ensures robust performance in automotive applications. Tape and reel packaging supports automated surface mount assembly processes.
Explore more components in the Array Capacitors category at EnvMart for your next electronics project or production line.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is precisely 470 picofarads with a tolerance of minus 10 percent.
It has a maximum operating temperature of 125 degrees Celsius.
This unit utilizes C0G dielectric material, which provides excellent stability and low loss.
The dimensions of the 0612 package are 3.2 mm in width, 1.6 mm in length, and 1.35 mm in height.
This model features a 4-way array configuration, integrating four capacitors into a single component.
The minimum operating temperature is -55 degrees Celsius.
It complies with the automotive standard AEC-Q200, ensuring durability for automotive applications.
It is delivered in tape and reel packaging, which is compatible with automated assembly processes.
The rated voltage for this capacitor is 50V DC.
This model is designed for surface mount applications.
The country of origin for this capacitor is India.
It is suitable for industrial, automotive, communications, and consumer electronics applications.
