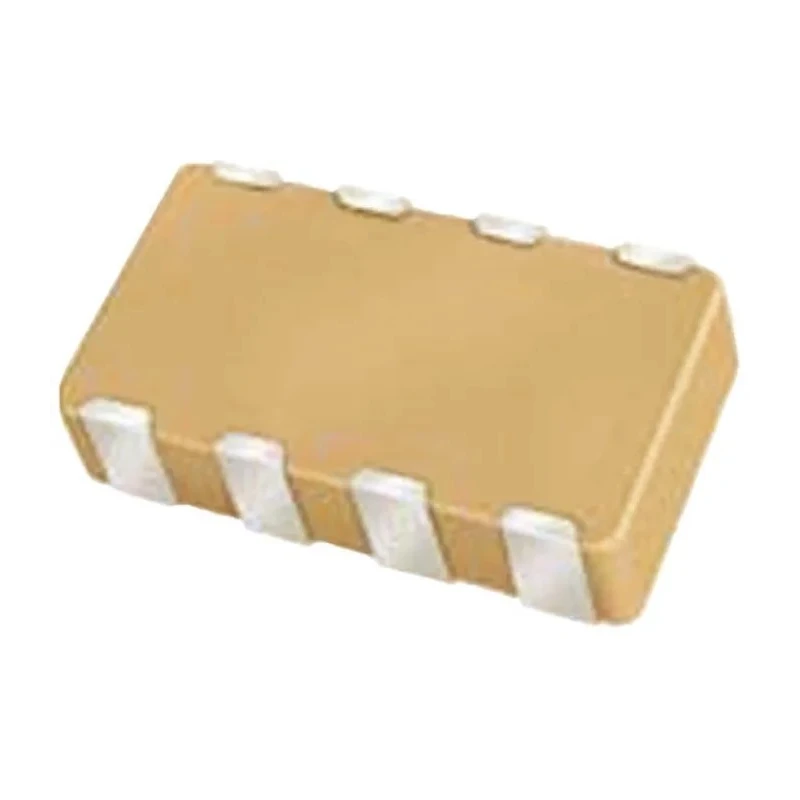

KYOCERA AVX Array Capacitor 100 nF 16V DC -20% 4 Way X7R Dielectric 0612 Surface Mount W3A4YC104M4T2A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 16V dc |
| Brand | KYOCERA AVX |
| Height | 1.35mm |
| Length | 1.6mm |
| Model | W3A4YC104M4T2A |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | W3A |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0612 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 697-3311PBrand: KYOCERA AVXManufacturers Part No.: W3A4YC104M4T2A |
| Dielectric | X7R |
| Automotive Standard | AEC-Q200 |
| Tolerance ± | -20% |
| Number of Capacitors | 4 |
Key Features
- Surface mount device in 0612 package size for compact PCB assembly.
- Four capacitors of identical 100 nF capacitance integrated into one array.
- Dielectric type X7R providing stable capacitance over temperature range.
- Tolerance of minus 20 percent ensures precise capacitance control.
- Operating temperature range from -55°C to 125°C suitable for automotive applications.
- Packaged on tape and reel for efficient automated placement.
- Complies with automotive standard AEC-Q200 for reliability in harsh conditions.
- Designed to save board space and reduce placement cost compared to discrete capacitors.
Product Description
KYOCERA AVX W3A4YC104M4T2A is a high-quality array capacitor designed for industrial and automotive electronics applications. This surface-mount device features four identical capacitors each with a capacitance of 100 nF and a rated voltage of 16 V DC, housed in a compact 0612 package (1.6 mm length x 3.2 mm width x 1.35 mm height).
The capacitors use a X7R dielectric material which provides excellent temperature stability, operating reliably between -55°C and 125°C. This product meets the stringent automotive AEC-Q200 standards, making it suitable for use in vehicles and demanding environments requiring high reliability.
The integrated array design significantly reduces the required PCB footprint, minimizing board space and placement costs compared to using multiple discrete capacitors. The product is supplied on tape and reel packaging, optimizing compatibility with automated pick-and-place assembly machines used in manufacturing.
Surface mount 0612 package with X7R dielectric. Four capacitors combined into a single compact array. Capacitance: 100 nF per capacitor with ±20% tolerance. Voltage rating: 16 V DC and automotive grade AEC-Q200 compliance.
Operating temperature: -55°C to 125°C. Packaging: Tape & reel for efficient manufacturing processes. Compact footprint reduces board space by over 50% compared to discrete parts.
This capacitor array is ideal for automotive electronics, industrial controls, and other high-reliability applications requiring stable and space-saving capacitor solutions. Browse EnvMart’s extensive range of capacitors and passive electronic components to find complementary parts and advanced electronic modules.
Explore more products in our Array Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features four identical capacitors, each with a capacitance of 100 nF.
The voltage rating for this capacitor array is 16 V DC.
It operates reliably within a temperature range of -55°C to 125°C.
This unit uses an X7R dielectric material, which provides excellent temperature stability.
The capacitors are packaged on tape and reel, optimizing compatibility with automated pick-and-place assembly machines.
It complies with the AEC-Q200 automotive standard, ensuring reliability in demanding environments.
The dimensions of the 0612 package are 1.6 mm in length, 3.2 mm in width, and 1.35 mm in height.
This model integrates four identical capacitors into a single array design.
The tolerance for the capacitance is ±20%.
It is designed as a surface mount device.
The country of origin for this capacitor is India.
It is suitable for automotive electronics, industrial controls, and other high-reliability applications.
