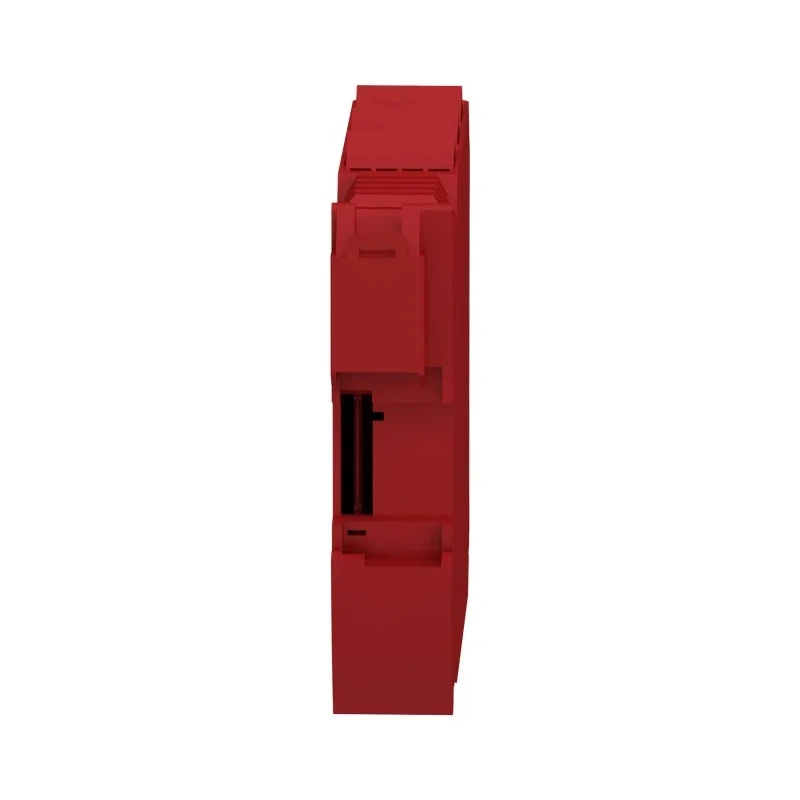

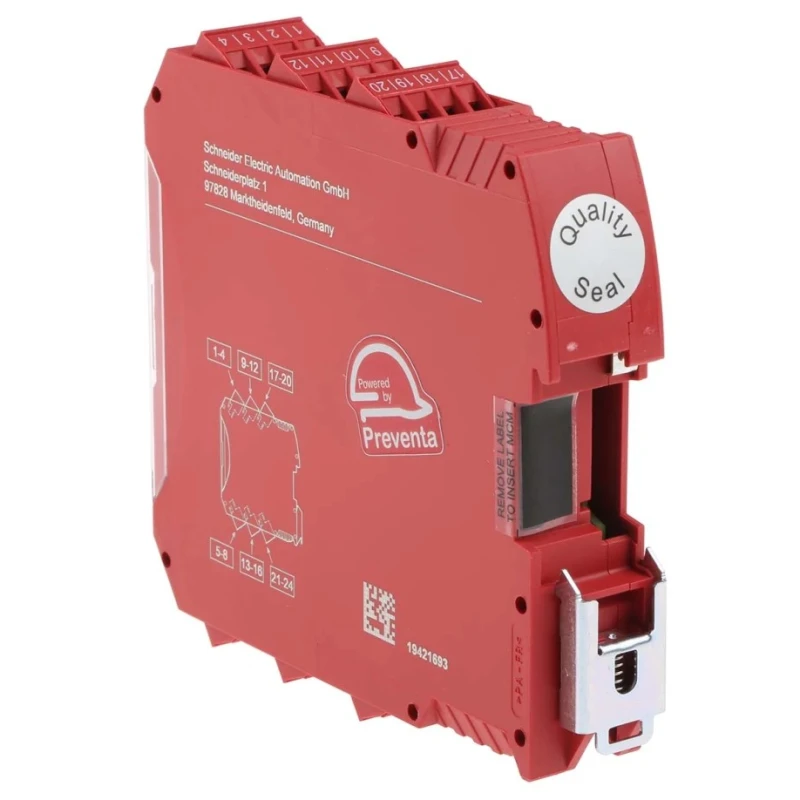

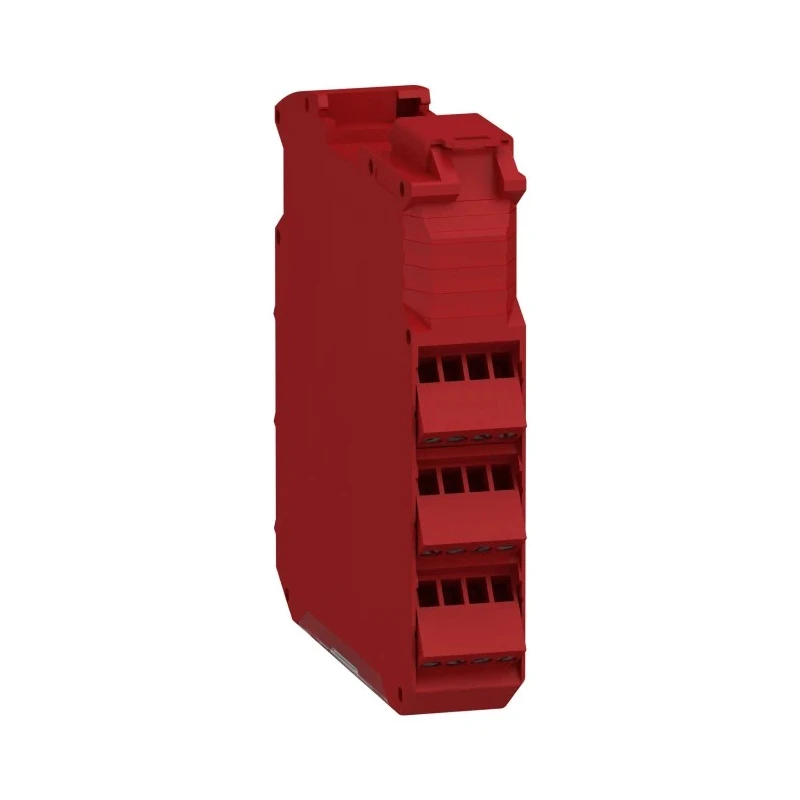

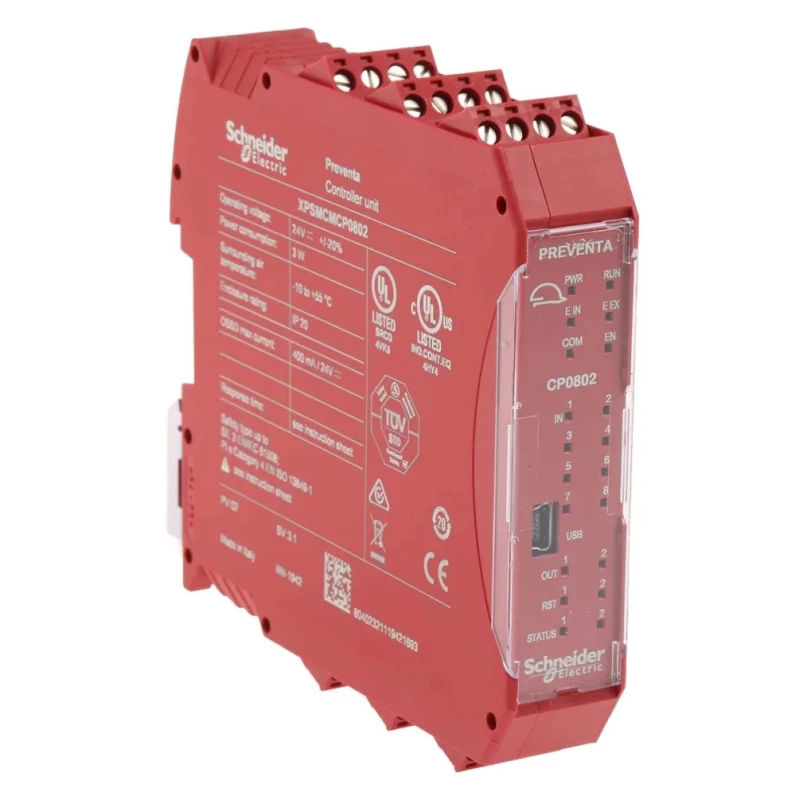

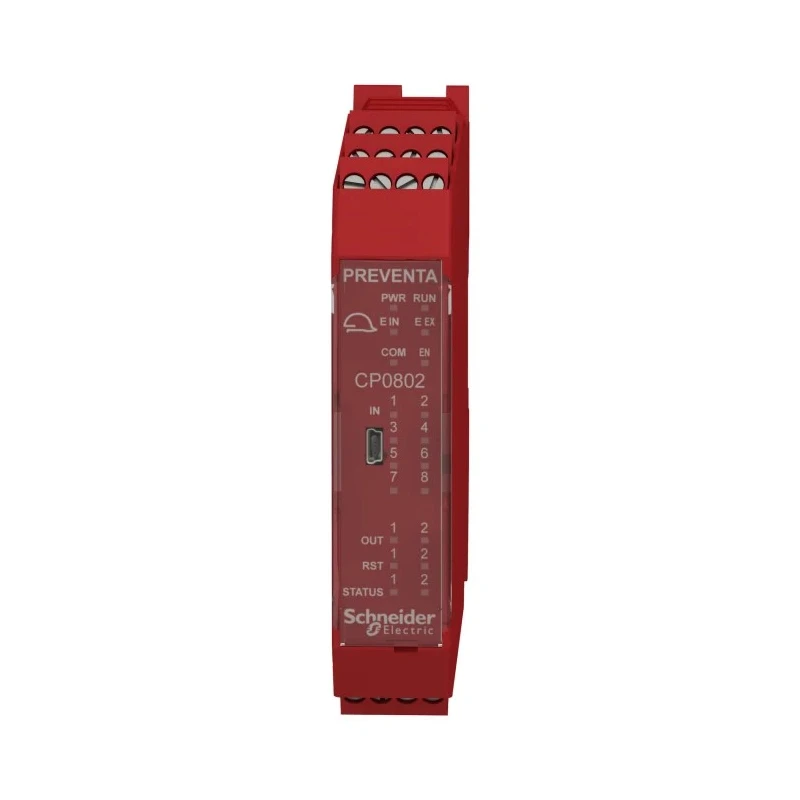

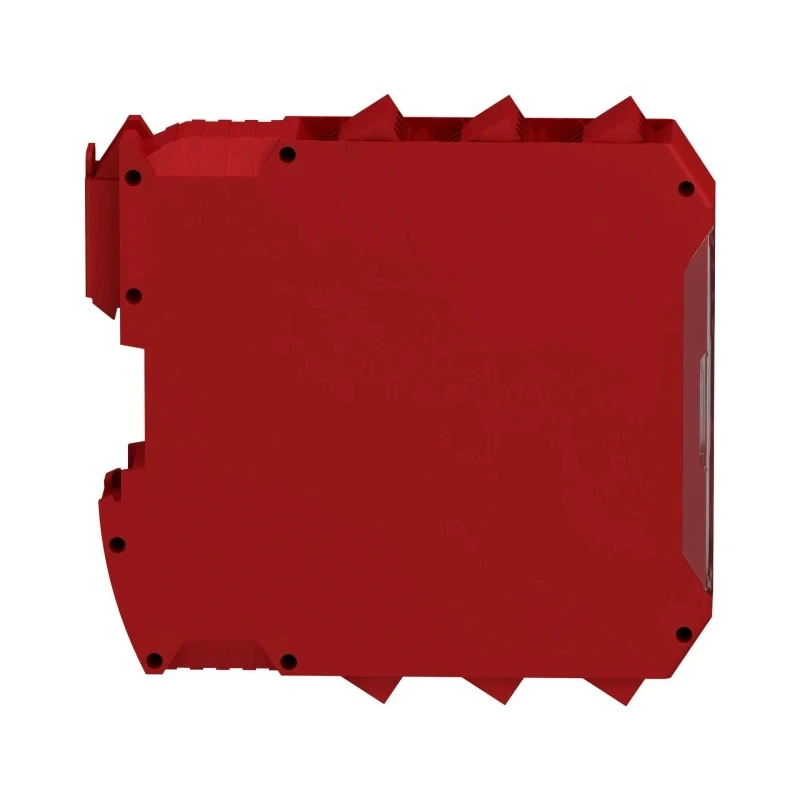

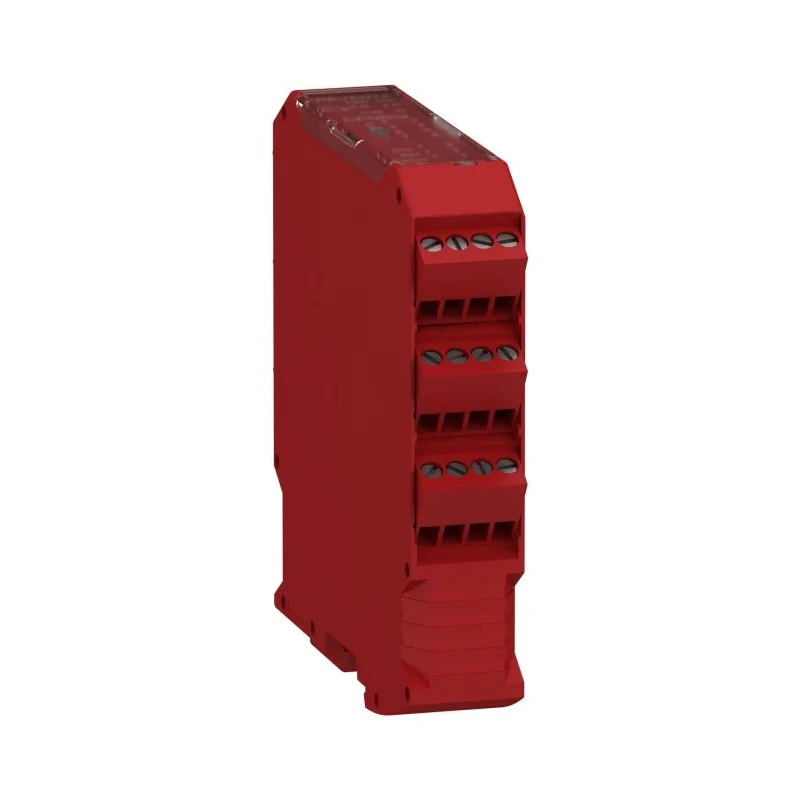

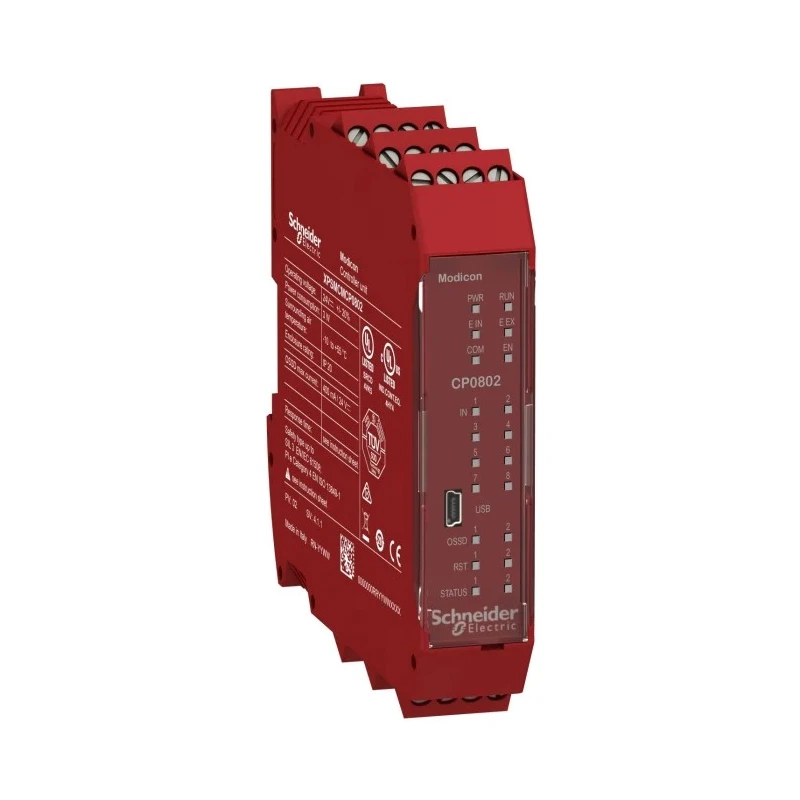

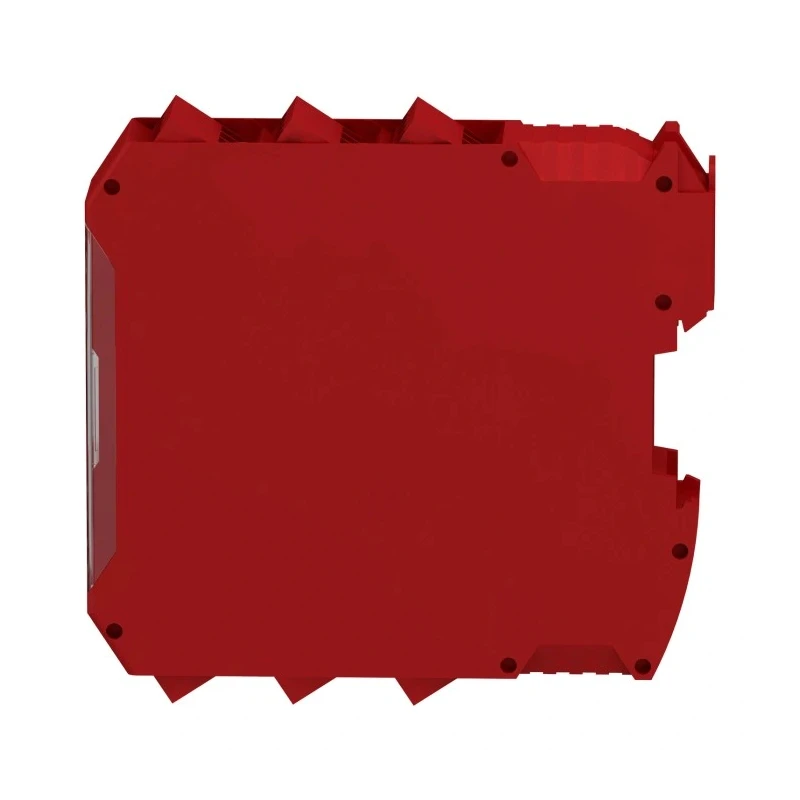

Schneider Electric Preventa Series Safety Controller, 8 Safety Inputs, 2 Safety Outputs, 24V dc XPSMCMCP0802

Schneider Electric XPSMCMCP0802 Preventa Series Safety Controller features 8 safety inputs and 2 safety outputs, operating at 24V dc. It is designed to enhance operational safety in industrial automation environments. Its adherence to SIL 3 safety standards makes it suitable for critical applications requiring reliable safety functions.

The controller supports extensive monitoring with up to 8 safety inputs and provides 2 safety outputs for interlock controls and device communication. The device is expandable, allowing the addition of up to 14 expansion modules, accommodating up to 128 discrete inputs or 16 discrete outputs, thereby offering scalable safety automation solutions.

Equipped with Ethernet IP and Modbus TCP communication protocols, the controller ensures flexible and robust connectivity options. Its DIN rail mount design and LED display facilitate straightforward installation and status monitoring. The IP20 rating protects the unit against solid objects, ensuring durability in industrial settings.

Safety applications for the XPSMCMCP0802 include emergency stop circuits compliant with EN/ISO 13850, as well as monitoring of safety mats, light curtains, two-hand controls, and enabling switches. It incorporates multiple signaling LEDs to rapidly identify and diagnose communication errors or faults within the system.

The controller functions reliably within an operating temperature range of -10°C to 55°C and can be stored safely between -20°C to 85°C. Its digital input capabilities enable it to monitor various sensor types, including magnetic and foot switches, expanding its adaptability across diverse safety automation requirements.

Designed to meet the standards cULus and CE, this controller ensures compliance with rigorous safety and quality benchmarks. The compact form factor includes dimensions of 22.5mm length, 99mm width, and 114.5mm depth, with screw-type terminals for secure connections.

Supports 8 safety inputs for comprehensive safety monitoring. Equipped with 2 safety outputs for interlock and device connections. Achieves SIL 3 performance for critical safety applications. Expandable with up to 14 expansion modules for increased I/O capacity.

Provides Ethernet IP and Modbus TCP communication for versatile connectivity. DIN rail mounting type with LED display for easy installation and monitoring. Protects with an IP20 rated housing against solid objects. Operates on 24V dc supply voltage with 400mA contact current rating.

Includes multiple signalling LEDs for error detection and troubleshooting. Ideal for emergency stop, safety mat monitoring, and two-hand controls in automation systems. Explore more Schneider Electric Safety Automation Controllers and ensure robust safety integration within your industrial processes at EnvMart.
