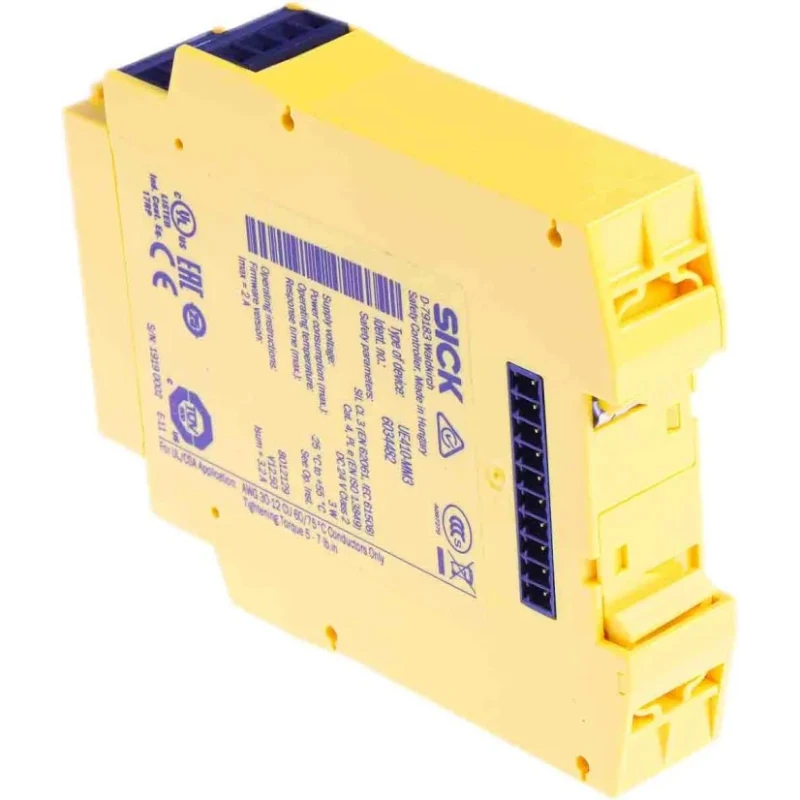

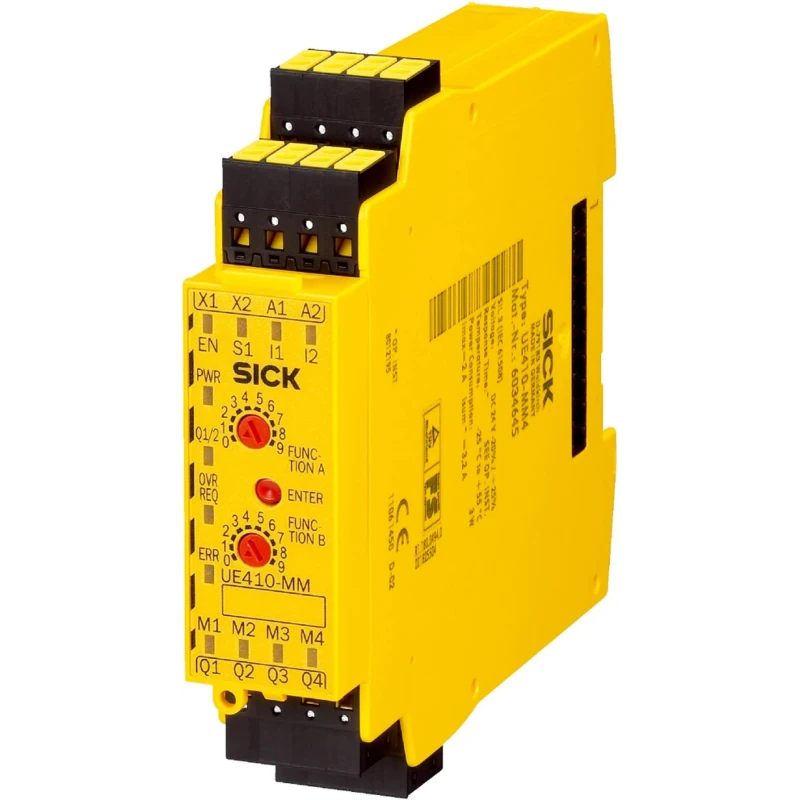

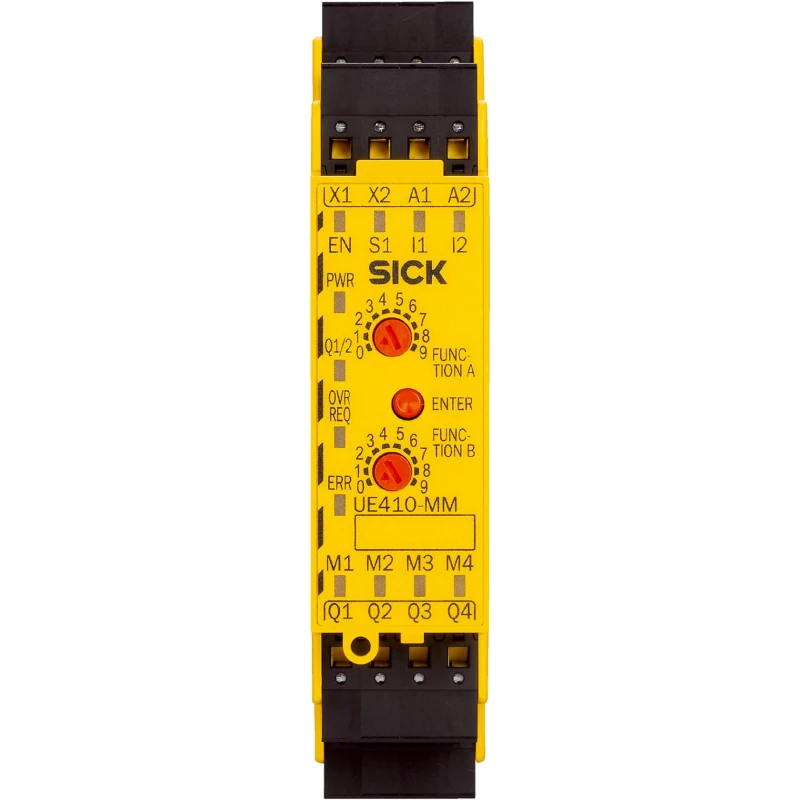

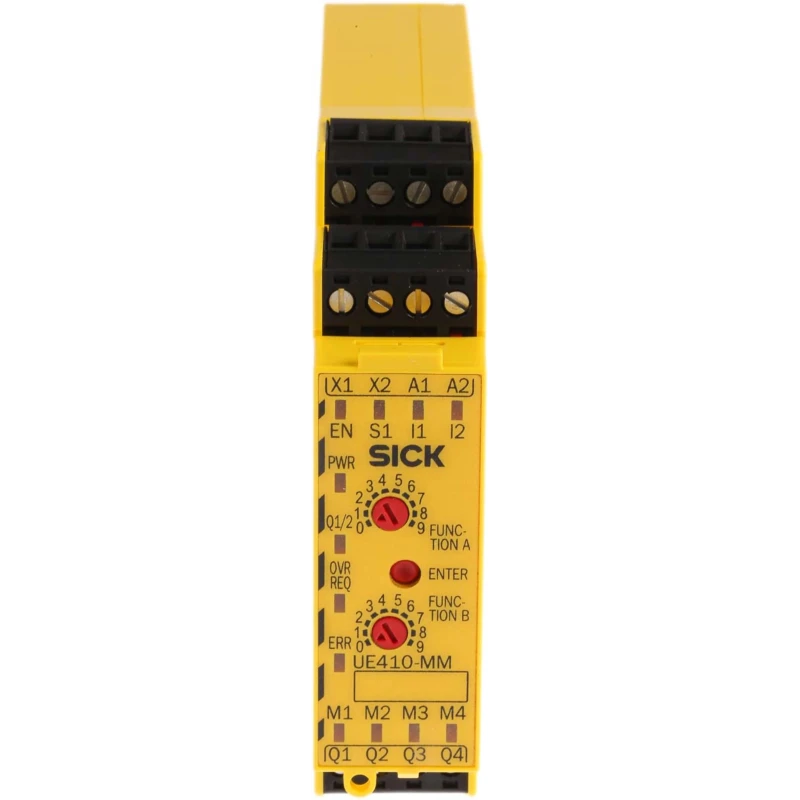

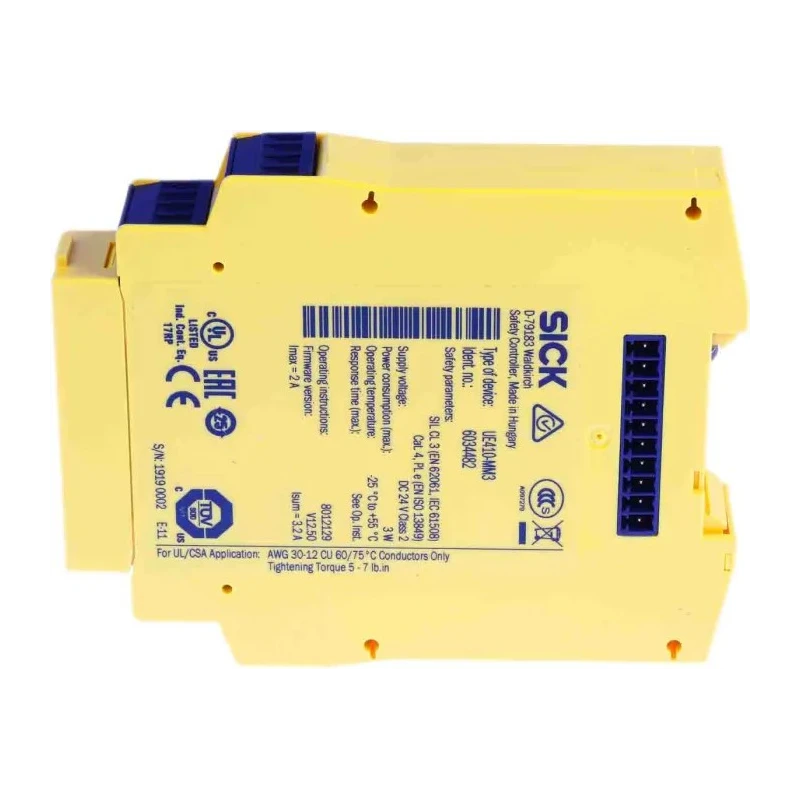

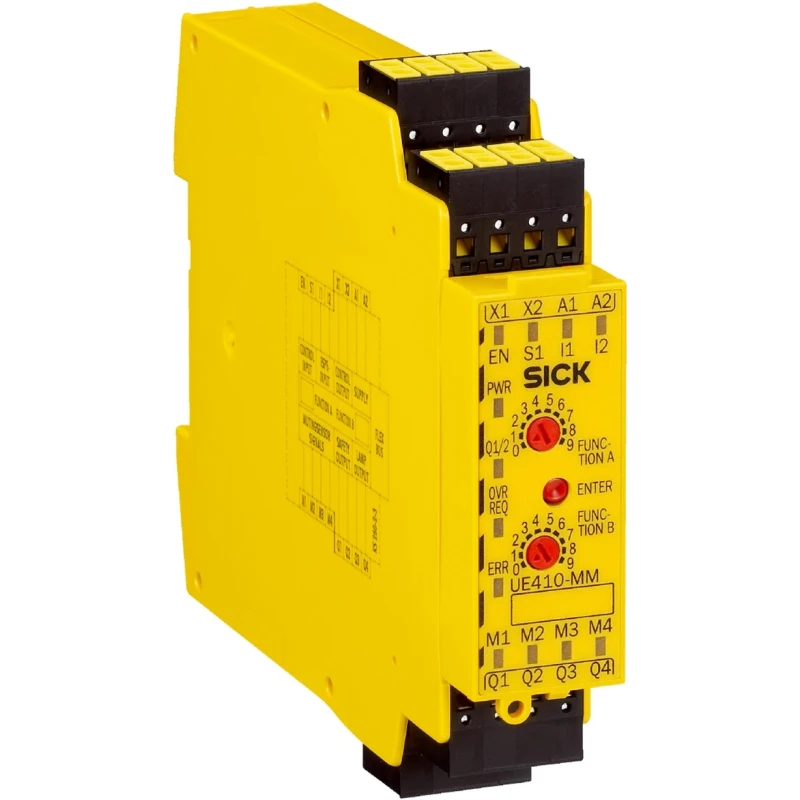

SICK UE410 Series Safety Controller 2 Safety Inputs 2 Safety Outputs 30V DC UE410

The SICK UE410 Series Safety Controller (model UE410) is engineered to provide reliable and efficient safety automation in industrial environments. This controller features 2 safety inputs and 2 safety outputs, operating at a supply voltage of 30V DC, making it suitable for integration with opto-electronic protective devices and non-contact safety switches.

The UE410-MM3 muting main unit along with the UE410-XM3 muting extension offers advanced functions including muting and override controls, concurrence monitoring, and total muting time supervision. Sensor gap monitoring and end of muting detection via ESPE ensure comprehensive safety coverage.

It supports up to 2 or 4 muting sensors with an additional reset/restart input and external device monitoring capabilities. The type of output used is a PNP semiconductor that is short-circuit protected and cross-circuit monitored, providing secure interaction with connected devices.

Technical performance includes a maximum output current of 2A, a fast maximum response time of 13 milliseconds, and a maximum switch-on time of 10 seconds with a power consumption limited to 3 watts. This controller meets the highest safety standards with category 4 classification according to EN ISO 13849, SIL3 certification under IEC 61508, and SILCL3 under IEC 62061, achieving Performance Level e (PL e) as per EN ISO 13849 standards.

This device is designed for DIN rail mounting with an LED display for status indication and screw-type terminals for secure connections. Its compact physical dimensions allow efficient use of panel space: length 96.5 mm, width 22.5 mm, and depth 120.8 mm. The IP20 and IP40 ratings provide suitable protection in industrial environments against solids and splashing liquids.

Manufactured in Germany, the SICK UE410 ensures high product quality and adherence to UL and CE standards. It is ideal for safety control applications in manufacturing, automated production lines, and material handling systems requiring robust, certified safety automation solutions.

Includes muting, override, and concurrent monitoring functions. Supports monitoring total muting time and sensor gap. Equipped with 2 or 4 muting sensors and reset/restart input. Output type is PNP semiconductor, short-circuit protected and cross-circuit monitored.

Maximum output current is 2A with a maximum response time of 13 ms. Category 4 safety according to EN ISO 13849 and SIL3 (IEC 61508) certified. Designed for DIN rail mounting with LED display indicators. Compact device dimensions: 96.5mm length, 22.5mm width, 120.8mm depth.

Equipped with screw terminal type and protected against IP20 and IP40 ingress levels. Manufactured in Germany ensuring robust build and quality compliance. Explore this product and more advanced industrial Safety Automation Controllers at EnvMart.
