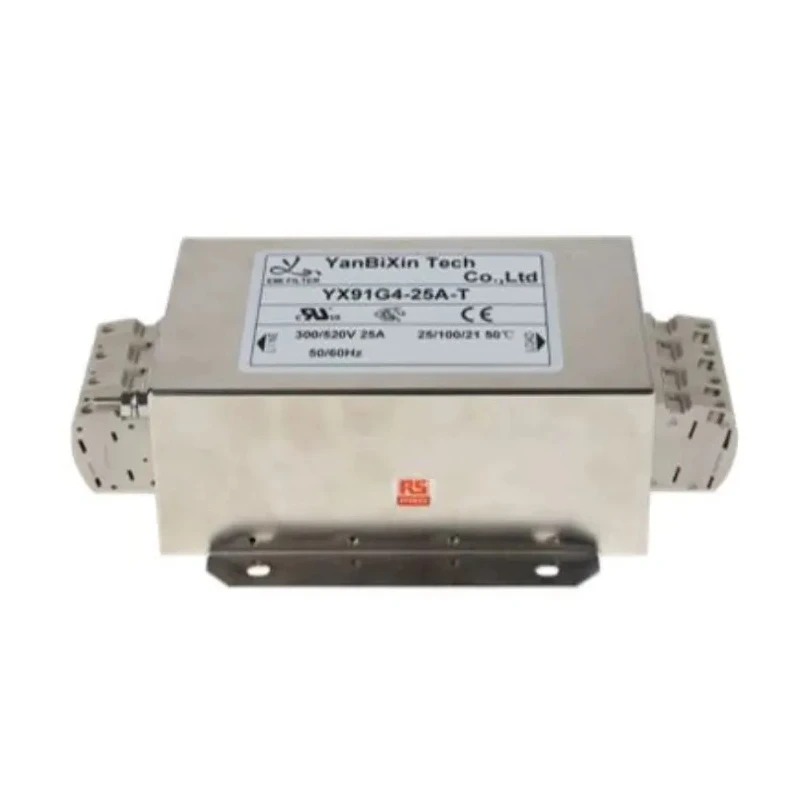

RS PRO 3-Phase Power Line Filter 25A 520V AC Chassis Mount Terminal Block 50/60Hz 237-8762
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 80mm |
| Length | 200mm |
| Model | 237-8762 |
| Depth | 170mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Resistance | 2.2mΩ |
| Capacitance | 1μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 3 |
| Leakage Current | 269mA |
| Maximum Voltage | 520V ac |
| Inductance | 2.6mH |
| Standards/Approvals | CSA C22.2 No.8, EN 60939, IEC, UL1283 |
| Termination Style | Terminal Block |
Key Features
- Supports up to 25A maximum current for robust power filtering.
- Rated for 520V AC and compatible with 50Hz and 60Hz systems.
- Chassis mount design with terminal block for secure and efficient installation.
- Suitable for three-phase applications in industrial and commercial environments.
- Compact component helps prevent external radio frequencies from impairing electrical performance.
- Reduces conducted interference and transient voltage spikes for reliable equipment operation.
- Includes 1μF capacitance and 2.6mH inductance for enhanced filtering effectiveness.
- Leakage current up to 269mA, minimum operating temperature -25°C, maximum up to 85°C.
Product Description
RS PRO 237-8762 3-Phase Power Line Filter is engineered for high-performance electrical and electronic applications, offering advanced EMI suppression and transient protection. Designed for chassis mounting, this filter supports up to 25A of maximum current and operates reliably with voltages up to 520V AC, accommodating both 50Hz and 60Hz frequencies. The sturdy terminal block configuration ensures secure connections in demanding industrial settings.
Power line filters are critical for safeguarding sensitive equipment from electromagnetic interference and transient voltage spikes that can disrupt functionality or cause permanent damage. The RS PRO filter integrates high-quality components, including 1μF capacitance and 2.6mH inductance, to provide superior EMI attenuation and ensure stable operational environments. The filter also complies with major international standards, ensuring suitability for medical, industrial, laboratory, and electronic device protection.
Supports up to 25A and 520V AC, providing robustness for heavy-duty electrical systems. Chassis mount and terminal block design make installation simple and efficient. Applicable in three-phase systems across industrial, laboratory, commercial, and medical equipment.
Leakage current rated up to 269mA, with temperature tolerance from -25°C to 85°C. Compact footprint (200mm x 170mm x 80mm) fits small to medium-sized machinery. Enables reliable operation in unpredictable electromagnetic environments and prevents circuit damage.
Compliant with CSA C22.2 No.8, EN 60939, IEC, and UL1283 standards. Country of origin: China.
This Power Line Filter is an ideal choice for equipment and installations where stable, interference-free power supply is critical. It is widely used in industrial automation, manufacturing, laboratory instrumentation, commercial electrical systems, and medical equipment. By minimizing RFI and protecting against voltage spikes, it extends the working life of devices and ensures safety and reliability.
Discover more EMI filters and power components in the RS PRO and EnvMart industrial catalog for high-quality, performance-driven solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 25A, making it suitable for robust power filtering applications.
It is rated for a maximum voltage of 520V AC, which allows it to operate effectively in high-voltage environments.
This unit operates reliably at both 50Hz and 60Hz frequencies, accommodating various electrical systems.
The filter has dimensions of 200mm in length, 170mm in depth, and 80mm in height, making it compact for installation.
It features a chassis mount design, which allows for secure and efficient installation in various applications.
The leakage current is rated up to 269mA, which is important for ensuring safe operation in sensitive environments.
It includes a capacitance of 1μF and an inductance of 2.6mH, enhancing its filtering effectiveness against electromagnetic interference.
The filter can operate in temperatures ranging from -25°C to a maximum of 85°C, suitable for various environmental conditions.
It complies with CSA C22.2 No.8, EN 60939, IEC, and UL1283 standards, ensuring its suitability for industrial and commercial applications.
This model is designed for three-phase applications, making it ideal for industrial and commercial environments.
It is applicable in industrial automation, laboratory instrumentation, commercial electrical systems, and medical equipment, providing essential EMI suppression.
The resistance of this unit is rated at 2.2mΩ, contributing to its effectiveness in power filtering.
