STMicroelectronics 100 V 1 A Schottky Diode Surface Mount, DO-214AC Package STPS1H100AY

Free Delivery in India | Lowest Global Shipping Charges

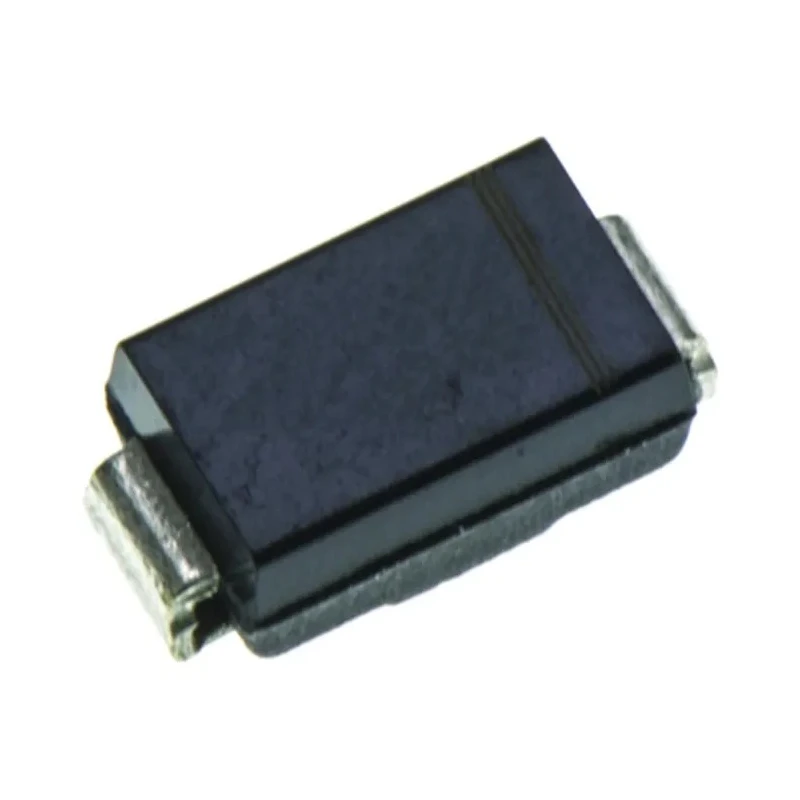

STMicroelectronics 100 V 1 A Schottky Diode Surface Mount, DO-214AC Package STPS1H100AY

Name: STMicroelectronics 100 V 1 A Schottky Diode Surface Mount, DO-214AC Package STPS1H100AY
Brand: STMicroelectronics
SKU: 384610
Price: 0.16 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS1H100AY
Width	2.9mm
Mount Type	Surface
Series	STPS1H100
Maximum Operating Temperature	175°C
Package Type	DO-214AC
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	0.62V

Key Features

Compact DO-214AC package suitable for surface mounting.
Maximum continuous forward current of 1 ampere.
Peak reverse repetitive voltage rating of 100 volts.
Low forward voltage drop of 0.62 volts for efficient operation.
Wide operating temperature range from -40°C to 175°C.
High surge current capability of up to 50 amperes.
Low peak reverse current leakage of 500 microamperes.
No automotive standard certification, designed for general power applications.

Product Description

STMicroelectronics STPS1H100AY is a surface mount Schottky diode featuring a maximum forward current of 1 ampere and a peak reverse repetitive voltage of 100 volts. It is housed in a compact 2-pin DO-214AC package, enabling efficient power management in demanding environments.

This diode offers a low forward voltage drop of 0.62 volts, minimizing power losses and improving circuit efficiency. Its peak non-repetitive forward surge current rating of 50 A ensures robust performance in transient conditions, while the low peak reverse current of 500 µA enhances reliability.

The device operates reliably over a broad temperature range from -40°C to 175°C, making it suitable for various applications including industrial electronics, power supplies, and consumer electronics.

Physical dimensions of 2.45 mm height, 4.6 mm length, and 2.9 mm width enable high-density mounting on PCBs without compromising performance. Although it is not certified for automotive standards, the diode supports diverse power rectification needs with superior efficiency.

STMicroelectronics' Schottky diode STPS1H100AY is widely used in power rectification, voltage clamping, and freewheeling diode applications where low forward voltage and fast switching are critical.

Compact DO-214AC package suitable for surface mounting. 1 A maximum forward current for moderate power applications. 100 V peak reverse voltage rating for robust blocking performance. Low forward voltage drop of 0.62 V reduces power dissipation.

Extended operating temperature range from -40°C to 175°C ensures environmental resilience. High surge current capacity of 50 A for transient handling. Minimal reverse leakage current of 500 µA enhances efficiency. Small footprint with height 2.45 mm, length 4.6 mm, and width 2.9 mm.

Ideal for industrial, power management, and consumer electronics applications. Explore the range of semiconductor components at EnvMart for advanced industrial and electronic design requirements.

Explore more products in our Schottky Diodes & Rectifiers category.
