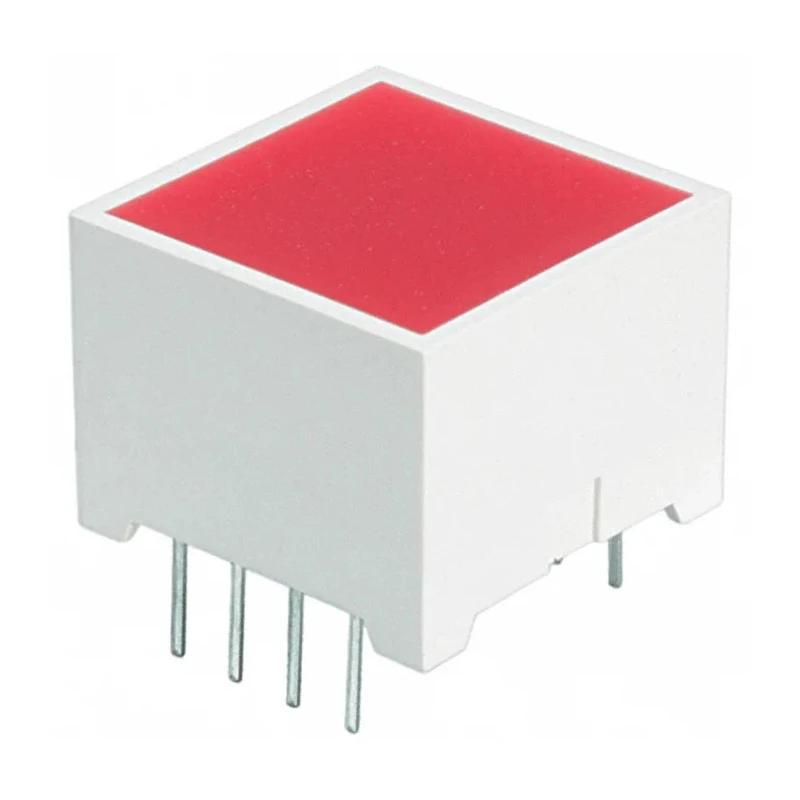

Kingbright Light Bar LED Display Red 930mcd DE/4SURKD
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Light Bar |
| Brand | Kingbright |
| Model | DE/4SURKD |
| Mount Type | Through Hole |
| Series | DE/4SURKD |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 1 |
| External Width | 15mm |
| External Depth | 11.2mm |
| External Height | 15mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 930mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | White |
| Forward Voltage | 2V |
| Forward Current | 30mA |
Key Features
- This LED display features a single light bar segment ideal for various electronic applications.
- It uses a through-hole mount type for secure and reliable PCB mounting.
- The display measures 15mm width, 15mm height, and 11.2mm depth for compact integration.
- Designed to operate between -40°C and 85°C for versatile environmental conditions.
- It has a forward voltage of 2V and forward current rating of 30mA ensuring efficient operation.
- The device dissipates power up to 75mW complying with RoHS environmental standards.
- Its white face color ensures excellent on/off contrast and uniform light emission.
- Mechanically rugged design suitable for industrial and commercial electronic display use.
Product Description
Kingbright DE/4SURKD is a red LED Light Bar Display that emits bright light with a luminous intensity of 930mcd and a dominant wavelength of 630nm. It comes as a single light bar segment designed for through-hole mounting, allowing easy installation on printed circuit boards.
The LED display has compact dimensions of 15mm width, 15mm height, and 11.2mm depth, making it suitable for applications requiring small form factor indicators or panel displays. It operates efficiently at a forward voltage of 2V and forward current of 30mA, consuming power up to 75mW while ensuring low power usage.
Designed to withstand a wide range of operating temperatures from -40°C up to 85°C, this LED display is mechanically rugged and ideal for use in industrial, electronic, manufacturing, and commercial environments. The white face of the display provides excellent contrast and uniform illumination, making it easily readable under different lighting conditions.
Kingbright's Light Bar series is well known for its reliability, uniform light emitting area, and flush mountability. This product is RoHS compliant, reflecting adherence to environmental and safety standards.
This LED display provides uniform light emission with high on/off contrast. The through-hole mounting offers sturdy and reliable PCB integration. Compact dimensions fit into various electronic devices and panels. Wide operating temperature range supports multiple industrial environments.
Low power dissipation enhances energy efficiency. Rugged mechanical construction ensures durability. White face color enhances the visual clarity of the red LED. RoHS compliance guarantees environmentally safe manufacturing.
This Kingbright DE/4SURKD LED display is perfect for electronic component assemblies, control panels, measurement systems, and other industrial displays requiring bright and reliable red indicators. Explore more LED Display modules and components in EnvMart’s Electronics & Electricals section to find compatible products for your projects.
