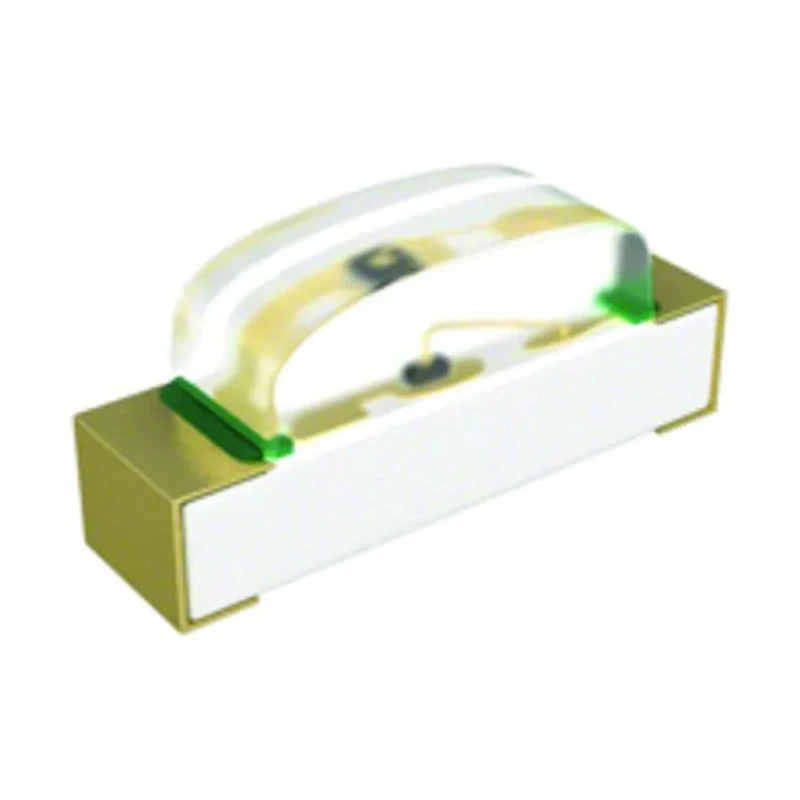

Broadcom 2.6 V Red LED 0603 Surface Chip LED HSMS-C120

Name: Broadcom 2.6 V Red LED 0603 Surface Chip LED HSMS-C120
Brand: Broadcom
SKU: 382994
Price: 0.22 USD
Availability: InStock



Category LED Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HSMS-C120
Packaging	Tape & Reel
Mount Type	Surface
Series	Chip LED
Maximum forward current	20mA
Viewing angle	155 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	626nm
Forward Voltage	2.6V
Number of Pins	2
LED Luminosity	10 mcd
Maximum Power Dissipation	52mW
Lens Dimensions	1.6 x 0.6 x 1 mm
Lens Shape	Rectangular

Key Features

The LED features a 0603 industry standard surface mount package for easy assembly.
It has a maximum forward current rating of 20 mA ensuring effective brightness with low power consumption.
The chip LED emits red light with a dominant wavelength of 626 nm and a luminosity of 10 mcd.
The viewing angle is 155°, providing wide light dispersion suitable for backlighting and indicator uses.
Compact lens dimensions of 1.6 x 0.6 x 1 mm with a clear rectangular lens shape optimize optical performance.
The LED complies with RoHS standards, ensuring environmentally friendly manufacturing.
Designed to operate within -30°C to +85°C temperature range for durability under varied conditions.
Packaging is offered in tape and reel form to facilitate automated machine insertion.

Product Description

Broadcom HSMS-C120 is a high-quality 0603 surface mount red LED with a forward voltage of 2.6 V and power dissipation of 52 mW. It is engineered for compact electronic devices requiring reliable and efficient indicator or backlighting solutions.

This Chip LED series from Avago Technologies offers excellent performance in key applications such as keypad backlighting, push-button illumination, LCD display backlighting, symbol backlighting, and front panel status indicators. The 155° wide viewing angle enables even light distribution, enhancing visibility.

The device's small footprint of 1.6 x 0.6 x 1 mm allows integration into miniature circuit boards while maintaining durability over an operating temperature range from -30°C to +85°C, making it suitable for industrial and commercial electronics environments.

Key features include a clear rectangular lens with diffused optics and compatibility with infrared solder processes. It is fully RoHS compliant, ensuring it meets environmental standards for hazardous substance reduction.

The LED supports up to 20 mA forward current for efficient brightness. It emits red light with a dominant wavelength of 626 nm and luminance of 10 mcd. Compact 0603 surface mount package design facilitates automated PCB assembly.

Clear lens finish and rectangular shape optimize light output. Tape and reel packaging supports high-volume manufacturing workflows. Robust operating temperature range from -30°C to +85°C enhances versatility.

This product is ideal for use in electronics manufacturing, industrial control panels, consumer electronics, and automotive applications that require reliable and compact red LED indicators. It supports various industrial, commercial, and laboratory usages where visual signaling is required.
