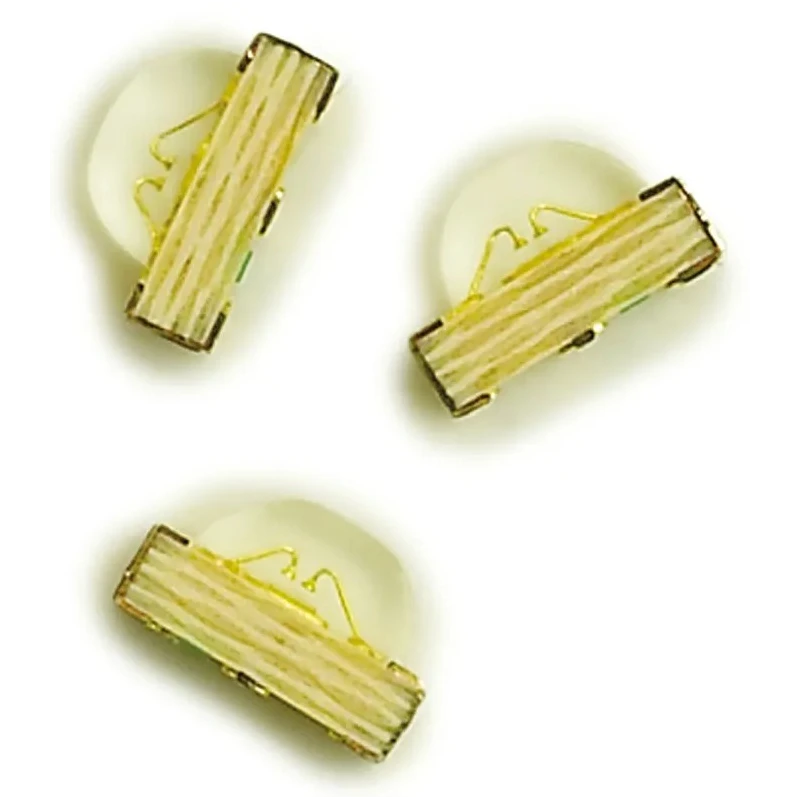

Broadcom Blue LED 2.85 V 0603 Surface Mount 7.2 to 18 mcd Luminosity ASMT-CB00

Broadcom ASMT-CB00 is a high-performance blue LED designed for surface mount applications on PCBs. It delivers bright blue light at a forward voltage of 2.85 V and provides a luminous intensity range of 7.2 to 18 millicandela, making it ideal for use as indicator lights, LCD/keypad backlighting, and other electronic display applications.

The LED package is compact with dimensions of 1.6 x 1 x 0.4 mm and comes with a clear dome-shaped lens that emits light within a wide 150 degree viewing angle. It supports a maximum forward current of 10 mA and dissipates up to 32 mW of power, ensuring efficient performance at low power consumption.

Constructed for surface mount technology, it has two pins for straightforward PCB attachment and comes packaged in tape and reel form with 4000 pieces per reel, optimizing assembly line productivity.

Operating temperature ranges from -40°C up to +85°C, allowing stable functionality in industrial and commercial electronic devices. The LED meets JESD22-A114C.01 standards ensuring protection against ESD damage.

This Broadcom ASMT-CB00 LED series is well-suited for use in electronic components for automotive systems, consumer electronics, and industrial indicator applications requiring reliable low-voltage blue light emission.

This LED provides bright blue illumination with a clear lens and dome shape. The small 0603 package size supports compact PCB designs. Offers wide viewing angle of 150 degrees for broad visibility. Durable operation within -40°C to +85°C temperature range.

ESD sensitive classification ensuring reliable performance under electrostatic discharge. Packaged in high quantity tape & reel for efficient automated placement. Explore the extensive range of Broadcom LEDs and components in the EnvMart electronics catalog for integrated circuit and display applications.
