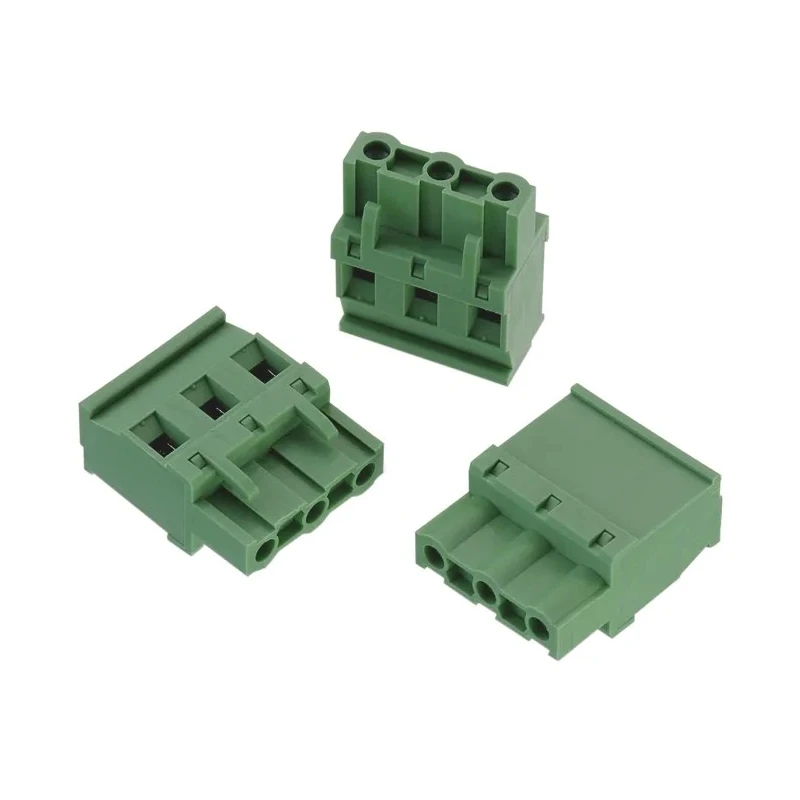

Wurth Elektronik 3524 Series Pluggable Terminal Block 4-Contact 7.62 mm Pitch 1 Row 15A 300V AC 691352410004

Wurth Elektronik 691352410004 Pluggable Terminal Block 4-Contact from the 3524 series is a precision-engineered connector designed for industrial, electronics, and electrical power applications. This pluggable terminal block features a 7.62 mm pitch and a single-row configuration, providing reliable and secure electrical connections in compact spaces.

The terminal block supports a current rating of 15A and is rated for 300V AC, suitable for various devices and systems requiring moderate voltage and current handling. It is made with a green polyamide (UL94-V0 PA66) housing material which ensures excellent mechanical strength and high flame retardance to meet stringent safety requirements. The internal contacts are composed of tin-plated phosphor bronze offering low contact resistance and corrosion resistance for long-lasting performance in harsh environments.

This product accommodates wires from 24 AWG (0.21 mm²) up to 12 AWG (3.31 mm²), connected via a cable entry method that simplifies wiring processes while maintaining secure retention with a locking latch. The connector features a straight orientation and a slot-type M3 screw terminal that firmly secures wires during installation.

Its physical dimensions are 39.66 mm in length, 12.6 mm in width, and 26 mm in depth, enabling efficient use within panel assemblies and electronic modules where space optimization is critical.

Ideal for use across a wide range of industrial automation, manufacturing, HVAC, control systems, and other electrical applications where stable, pluggable connections are mandatory.

The product is manufactured in China under the high-quality standards expected of Wurth Elektronik components. This terminal block supports a maximum current of 15A for robust power handling. Features a 7.62 mm pitch ensuring compatibility with standard PCB layouts.

Constructed with durable green polyamide housing for excellent electrical insulation. Accommodates wire sizes from 24 AWG to 12 AWG for versatile wiring options. Equipped with a retention latch and tin-plated phosphor bronze contacts for secure and corrosion-resistant connections.

Cable entry wire connection method provides straightforward installation. Rated for 300V AC voltage suitable for a wide range of industrial electrical systems. Compact dimensions: length 39.66 mm, width 12.6 mm, and depth 26 mm optimize space usage on assemblies.

Manufactured in China ensuring consistent quality and performance.
