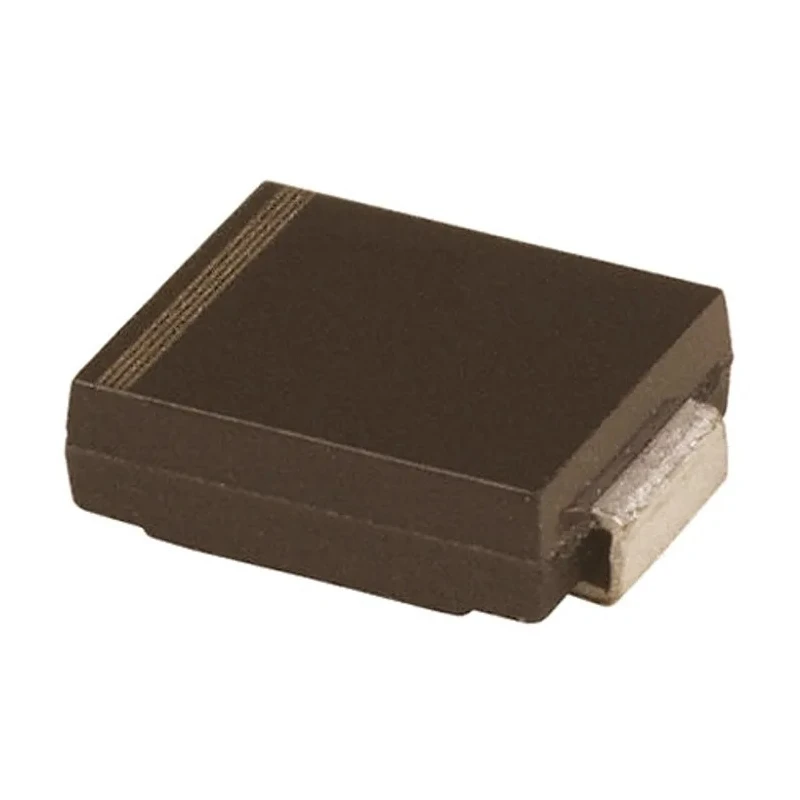

DiodesZetex 100 V 3 A Fast Recovery Schottky Diode 2-Pin DO-214AB ES3B-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 7.11mm |
| Length | 7.11mm |
| Model | ES3B-13-F |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | ES3B |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Surface mount type suitable for compact electronic assemblies.
- Maximum continuous forward current of 3 amperes with peak non-repetitive surge current of 100 amperes.
- Operating temperature range from -55°C to 150°C for robust performance.
- Low forward voltage drop of 900 mV to improve efficiency.
- Fast reverse recovery time of 25 ns ideal for high-speed switching applications.
- Designed to meet automotive standard AEC-Q101 for reliability.
- Peak reverse repetitive voltage of 100 V with maximum peak reverse current of 500 μA.
Product Description
DiodesZetex ES3B-13-F is a high-performance fast recovery Schottky diode designed for electronic and power semiconductor applications. This surface-mounted device features a compact 2-pin DO-214AB (SMC) package, making it suitable for automated assembly lines and high-density circuit boards.
With a maximum continuous forward current of 3 amperes and a peak non-repetitive forward surge current of 100 amperes, this diode can handle significant load conditions while maintaining operational integrity.
The diode operates efficiently within a temperature range of -55°C to 150°C, providing reliability in varied industrial and automotive environments. The low forward voltage drop of 900 mV helps reduce power dissipation, enhancing overall system efficiency.
The fast recovery time of 25 nanoseconds ensures minimal switching losses and is ideal for high-frequency rectification and switching power supplies. Additionally, this diode complies with the automotive AEC-Q101 standard, underscoring its durability for automotive electronic circuits.
Physical dimensions of 7.11 mm height and length with a width of 6.22 mm allow for space-efficient design integration. Its peak reverse repetitive voltage rating of 100 volts and peak reverse current of 500 microamperes support robust reverse voltage conditions.
Surface mount package suitable for automated assembly. High current capability with 3 A continuous and 100 A surge rating. Wide operating temperature range from -55°C to 150°C. Low forward voltage drop of 900 mV reduces power losses.
Fast recovery time enhances switching efficiency. Automotive qualified to AEC-Q101 standards. Compact DO-214AB package for space saving.
This diode is well suited for industrial, automotive, power supply, and electronic manufacturing applications requiring efficient and reliable rectification components. Explore more high-quality semiconductor components and Schottky Diodes in the Electronics & Electricals category at EnvMart for your engineering and production needs.
