| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAT54CW-7-F |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAT54CW |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

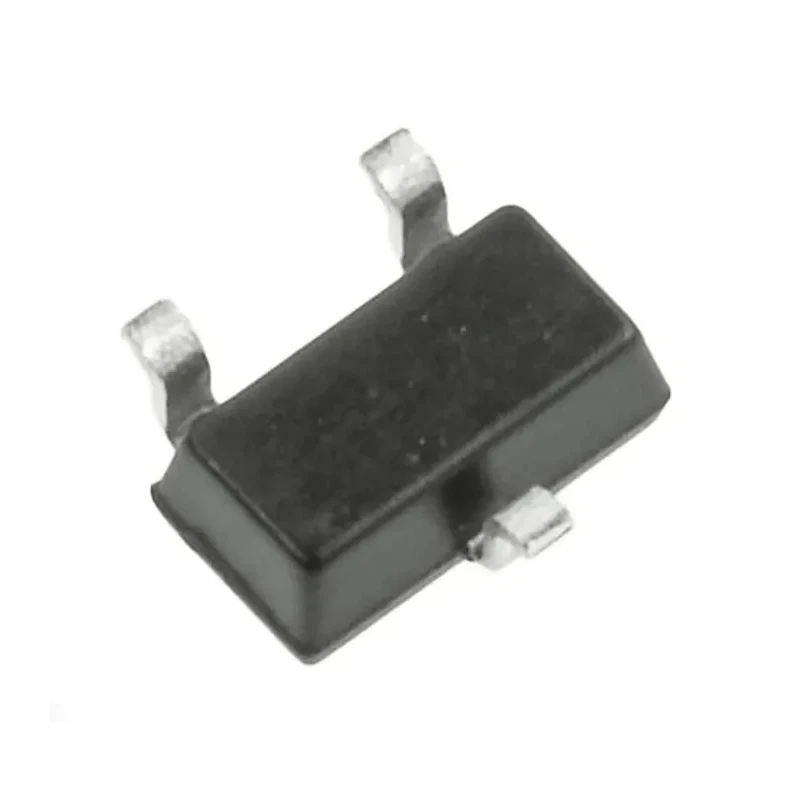

DiodesZetex BAT54CW-7-F is a high-quality 30 V, 200 mA Schottky switching diode designed for surface mount applications. It is housed in a compact 3-pin SC-70 package with physical dimensions of 2.2 mm in length, 1.35 mm in width, and 1 mm in height. This diode features a common cathode configuration that provides efficient rectification and switching capabilities for a variety of electronic circuits.
This diode can operate reliably within a wide temperature range from -65°C to 125°C, making it suitable for industrial, automotive, and commercial electronics environments. Its maximum forward voltage of 1 V ensures low conduction losses, and the peak reverse recovery time of just 5 ns allows fast switching in high-frequency applications.
The device’s peak reverse current of 2 μA minimizes leakage currents, improving overall power efficiency in sensitive circuits. The diode also offers robustness with a 600 mA peak non-repetitive forward surge current capability, ensuring tolerance to transient load conditions.
The surface mount SC-70 package supports automated PCB assembly for scalable production and compact circuit designs. This Schottky diode features a common cathode diode configuration for efficient rectification. Designed for surface mount technology with compact SC-70 package measuring 2.2 mm length and 1.35 mm width.
Maximum operating temperature of 125°C enables high reliability in demanding applications. Peak reverse current of 2 μA ensures low leakage and minimal power loss. Fast peak reverse recovery time of 5 ns suits high-frequency switching circuits.
With a maximum forward voltage of 1 V, it offers low forward voltage drop for improved efficiency. Operating temperature range from -65°C to +125°C supports broad industrial use. Peak non-repetitive forward surge current of 600 mA enhances transient robustness.
Ideal for applications in power circuits, rectification, and switching in industrial and electronic equipment. Explore DiodesZetex products and more Schottky Diodes with EnvMart's extensive electronics component catalog for your manufacturing, design, and repair needs.
