DiodesZetex 5 Output Adjustable Current Sink Linear LED Display Driver 0.8V to 30V 120mA, 20mA PWM AL5802-7

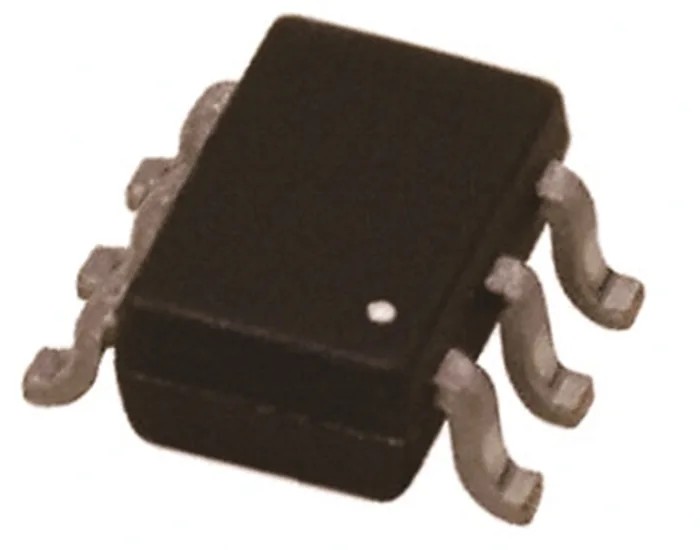

DiodesZetex AL5802-7 is a 5 output adjustable current sink linear LED driver designed to deliver efficient and reliable operation for LED Display and lighting solutions. It operates with an input voltage range from 4.5V up to 30V and can drive LEDs with output voltages from 0.8V to 30V, supporting currents up to 120mA with PWM dimming capability for fine brightness control.

This LED driver IC is housed in a compact surface mount SOT 26 package, facilitating easy integration into modern PCB layouts for electronics and lighting products. The device complies with RoHS standards and meets automotive-grade AEC-Q101 quality assurance, ensuring robust performance in demanding industrial environments.

The AL5802 series acts as an adjustable current sink, suitable for precision LED current regulation in display panels, instrumentation, automotive lighting, and general LED lighting applications where consistent brightness and device longevity are critical. With a power dissipation of 1 watt, this driver maintains thermal stability in continuous operation.

Its five outputs enable driving multiple LED loads simultaneously, optimizing system design by reducing component count. The PWM dimming feature enhances user experience by providing seamless intensity adjustment without compromising LED lifespan.

Operates over wide voltage range suitable for diverse LED configurations. Five independent output channels for multiple LED drive. PWM dimming for accurate brightness control. Complies with RoHS and AEC-Q101 standards for quality and environmental safety.

Compact SOT 26 surface mount package supporting assembly efficiency. Power dissipation limited to 1 watt for heat management. Adjustable current sink design enables precise LED current regulation. Ideal for use in electronic displays, industrial lighting, and automotive LED applications.

This product is ideal for industrial, laboratory, manufacturing, and electronic consumer device applications that require reliable low current LED driving solutions. The AL5802-7 series continues the tradition of DiodesZetex quality and innovation, enabling efficient LED lighting systems with ease of design.
