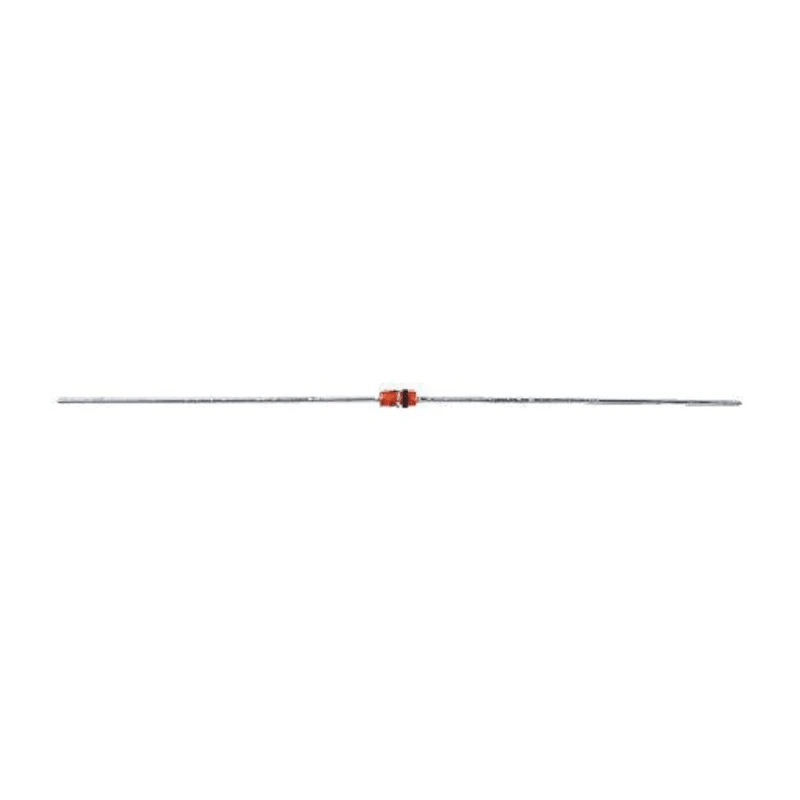

Vishay 1.16 V Zener Diode, Single 500 mW Through Hole 2-Pin SOD-27 TZX16B-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.16 V Zener Diode, Single 500 mW Through Hole 2-Pin SOD-27 TZX16B-TR

Name: Vishay 1.16 V Zener Diode, Single 500 mW Through Hole 2-Pin SOD-27 TZX16B-TR
Brand: Vishay
SKU: 377061
Price: 0.05 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	3.9mm
Model	TZX16B-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	16V
Zener Type	Voltage Regulator
Maximum Zener Impedance	45Ω

Key Features

This Zener diode features a nominal voltage of 16 V for voltage regulation applications.
Designed for through hole installation with a compact 3.9 mm length SOD-27 package.
Maximum power dissipation is 500 mW ensuring reliable performance under rated conditions.
The diode shows a maximum reverse leakage current of 1 μA, enhancing efficiency.
It exhibits a low Zener impedance of 45 Ω minimizing voltage variation during operation.
Operates reliably over a temperature range from -65°C to 175°C, suitable for automotive use.
Certainly meets RoHS standards and is AEC-Q101 automotive qualified for demanding environments.
Pin count is 2, configured for discrete semiconductor applications requiring precise voltage regulation.

Product Description

Vishay TZX16B-TR is a single Zener diode designed with a nominal Zener voltage of 16 V and power dissipation of 500 mW. Packaged in a through-hole 2-pin SOD-27 housing, this diode occupies a compact length of 3.9 mm, making it ideal for PCB implementations requiring voltage regulation and stabilization.

This diode operates efficiently across a broad temperature range from -65°C to 175°C, which makes it suitable for automotive, industrial, and general electronic circuit applications. With a voltage tolerance of ±2%, the device guarantees high precision for voltage regulation tasks.

The TZX16B-TR features low reverse leakage current (1 μA max) and a maximum Zener impedance of 45 Ω, which contributes to stable voltage output and reduced electrical noise. The diode is tested at a 5 mA current to ensure consistent performance characteristics.

Manufactured under RoHS compliance and qualified to automotive AEC-Q101 standards, this Zener diode is reliable for harsh environment applications including industrial control systems, power supplies, and electrical instrumentation.

This single element Zener Diode delivers stable voltage regulation in compact form. Its through-hole mount style simplifies installation on standard PCB layouts. The device’s operating temperature range supports automotive and industrial applications.

Compliance with RoHS and AEC-Q101 standards ensures quality and environmental safety. Low noise and minimal leakage current optimize circuit performance. SOD-27 packaging provides durability and ease of handling during assembly.

The diode is ideal for discrete semiconductor circuit integration requiring precise voltage regulation. Its nominal voltage and power dissipation ratings accommodate a wide range of electronic device requirements. Explore a wide selection of discrete semiconductors and voltage regulation components in the Electronics & Electricals category at EnvMart.
