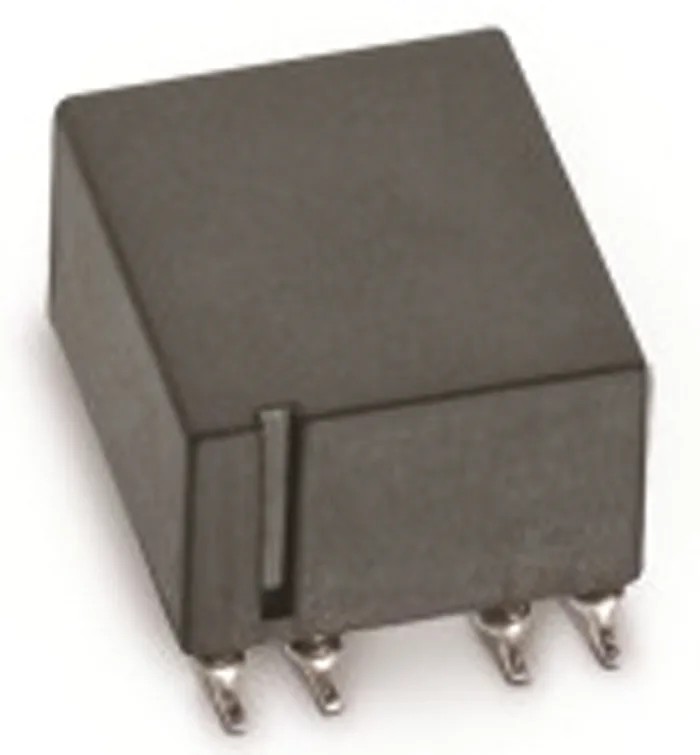

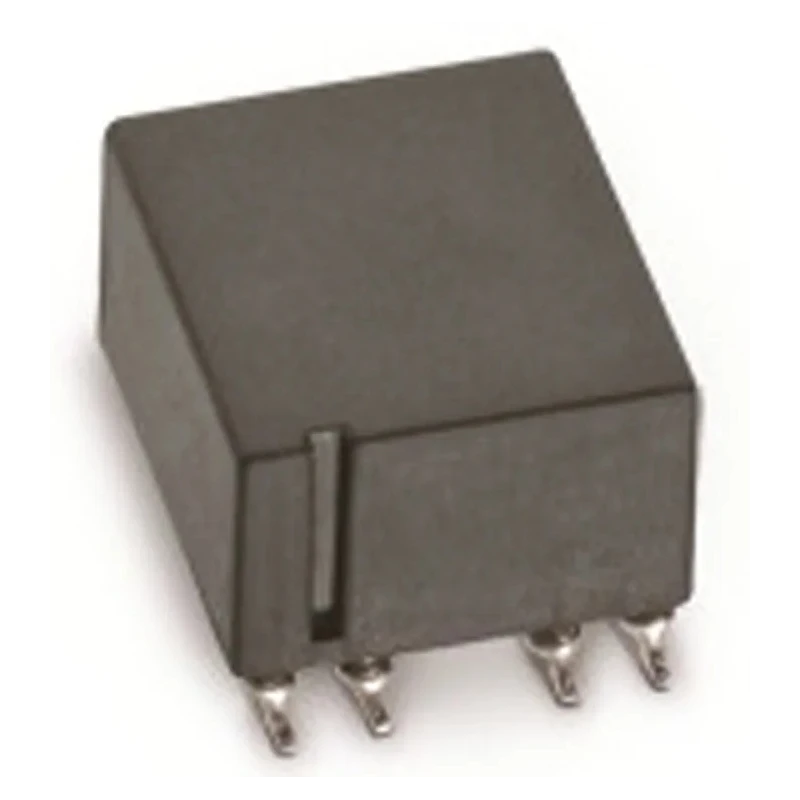

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47μH 744290472

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47μH 744290472

Name: Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47μH 744290472
Brand: Wurth Elektronik
SKU: 376617
Price: 5.42 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	7.8mm
Length	14mm
Depth	12.5mm
Packaging	Tape & Reel
Series	WE-UCF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	0.47μH
Standards/Approvals	RoHS, REACH
Package/Case	1712
Maximum DC Current	750mA
Pin Count	8
Maximum DC Resistance	520mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Inductor Construction	Sectional Winding

Key Features

Compact 1712 package size designation.
Shielded construction for electromagnetic interference reduction.
Rated maximum DC current of 750 mA.
Operating temperature from -40°C to 125°C.
Inductance tolerance ±30% to accommodate manufacturing variations.
Features 8 pins for surface mount termination.
Core material is ferrite ensuring high magnetic permeability.
Maximum DC resistance is 520 milliohms ensuring power efficiency.

Product Description

Wurth Elektronik 744290472 WE-UCF 1712 shielded wirewound surface mount inductor is engineered for high performance in filtering and power management applications. This inductor features a ferrite core with sectional winding and offers an inductance of 0.47μH, making it suitable for a wide range of electronic circuit designs requiring compact and robust inductors.

The 1712 case size and low profile height of 7.8 mm allow for space-efficient PCB layouts while maintaining electrical integrity. Shielded construction minimizes electromagnetic interference, critical in sensitive circuits and automotive electronics. Operating temperature range from -40°C to 125°C supports diverse environmental conditions.

The WE-UCF series inductor’s maximum DC current rating of 750 mA and maximum DC resistance of 520 milliohms ensure efficient current handling with minimal losses. The product is packaged in tape and reel format optimizing it for automated pick and place manufacturing processes.

Common applications include DC power line filtering, buck and boost converter circuits, and low bitrate data line filtering in industrial, automotive, telecommunications, and consumer electronics sectors.

Compact size suits limited PCB real estate. Shielding reduces EMI for improved signal integrity. Robust ferrite core provides magnetic stability. Extended operating temperature range ensures reliability. Surface mount termination compatible with automated assembly.

Manufactured in China and compliant with RoHS and REACH environmental standards, the Wurth Elektronik WE-UCF 744290472 is a reliable component for modern electronic designs. Explore more components in the Surface Mount Inductors category at EnvMart for your industrial and commercial projects.
