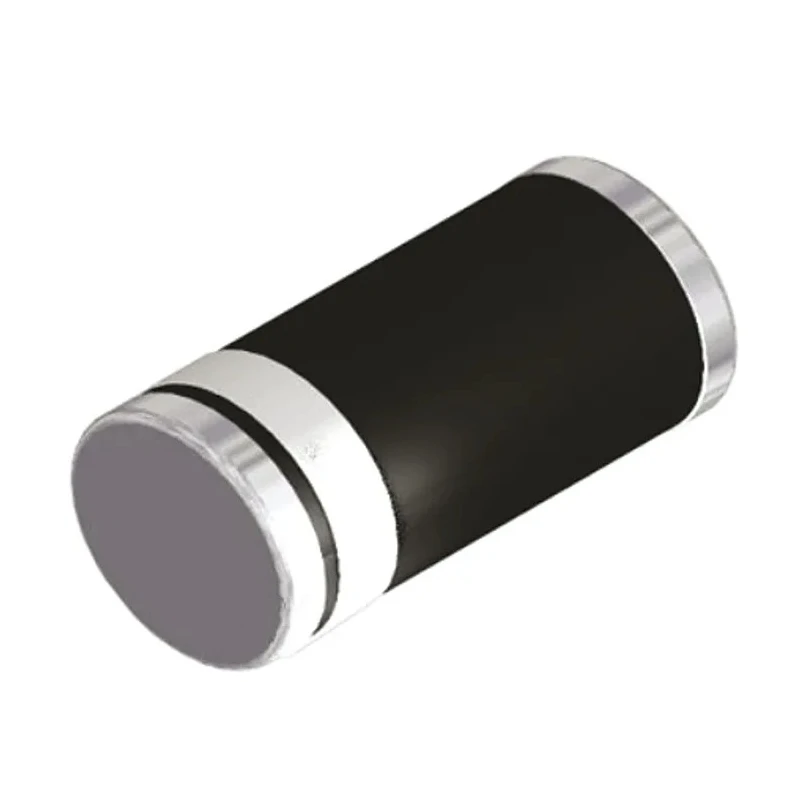

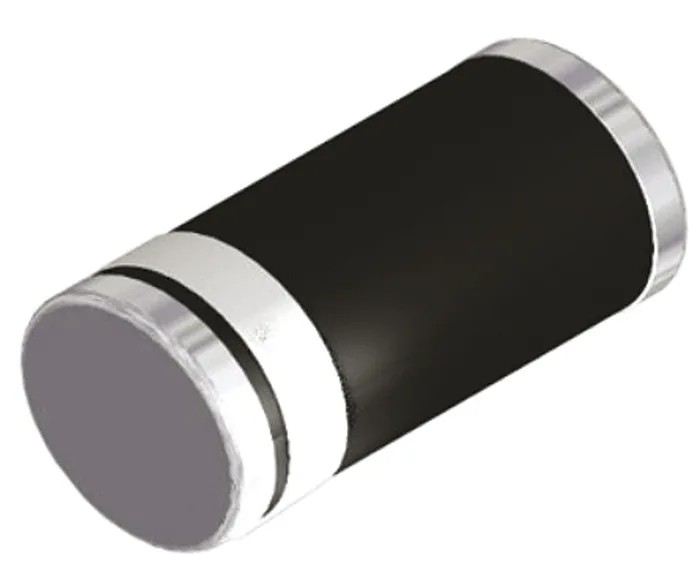

Vishay 7.5 V 1 W General Purpose Zener Diode, Single 2-Pin Surface Mount DO-213AB ZM4737A-GS08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Package | DO-213AB (MELF) |
| Length | 4mm |
| Model | ZM4737A-GS08 |
| Mount Type | Surface |
| Series | ZM47 |
| Power Rating | 1W |
| Maximum Operating Temperature | 175°C |
| Tolerance | ±5% |
| Package Type | DO-213AB |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | UL 94 V-0, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 34mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 4Ω |
Key Features
- Power rating of 1 watt ensures reliable operation in various electronics circuits.
- Nominal Zener voltage of 7.5 volts with ±5% tolerance for precise voltage regulation.
- Compact DO-213AB surface mount package suitable for automated PCB assembly.
- Maximum operating temperature up to 175°C enables high-temperature performance.
- Low maximum reverse leakage current of 10μA reduces power loss and improves efficiency.
- Test current of 34mA optimizes diode operation under standard test conditions.
- 2-pin configuration supports straightforward circuit integration.
- AEC-Q101 qualified for automotive-grade quality and reliability.
Product Description
Vishay ZM4737A-GS08 is a high-quality 7.5 V, 1 watt general-purpose Zener diode in a compact DO-213AB surface mount package. This automotive-grade diode is AEC-Q101 qualified, ensuring reliability under harsh environmental conditions. It is designed for voltage regulation and protection in industrial and automotive electronics.
The diode features a nominal Zener voltage of 7.5 V with a tight ±5% tolerance, making it ideal for precise voltage stabilization tasks. With a maximum power dissipation rating of 1 watt and a maximum operating temperature of 175°C, it supports demanding operating environments.
The device exhibits a low maximum reverse leakage current of 10μA and a maximum Zener impedance of 4 Ω, contributing to efficient and stable performance. Its 2-pin surface mount configuration in the DO-213AB (MELF) package facilitates compact and automated PCB assembly.
This diode is widely used in automotive systems, industrial electronics, and any applications requiring reliable voltage clamping and noise reduction. The ZM4737A-GS08 belongs to Vishay's ZM47 series of Zener diodes and complies with UL 94 V-0 flammability standards.
Power rating of 1 watt ensures reliable operation in various electronics circuits. Nominal Zener voltage of 7.5 volts with ±5% tolerance for precise voltage regulation. Compact DO-213AB surface mount package suitable for automated PCB assembly.
Maximum operating temperature up to 175°C enables high-temperature performance. Low maximum reverse leakage current of 10μA reduces power loss and improves efficiency. AEC-Q101 automotive qualification guarantees reliability in automotive applications.
General-purpose Zener diode suitable for voltage regulation and protection. 2-pin configuration supports straightforward circuit integration. Length of 4 mm enables compact design without compromising performance.
This Zener Diode is an excellent choice for industrial, automotive, and electronic component applications demanding robust voltage regulation and reliable thermal performance. Browse the Electronics & Electricals category at EnvMart for more semiconductor and diode products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 7.5 volts with a tolerance of ±5%.
The maximum operating temperature for this model is 175°C.
This diode has a power rating of 1 watt, ensuring reliable operation in various electronics circuits.
The ZM4737A-GS08 comes in a DO-213AB (MELF) surface mount package.
The maximum reverse leakage current for this diode is 10μA, which helps reduce power loss and improve efficiency.
The test current for this model is 34mA, optimizing its operation under standard test conditions.
This Zener diode features a 2-pin configuration, supporting straightforward circuit integration.
It complies with AEC-Q101 automotive standards and UL 94 V-0 flammability standards.
The maximum Zener impedance is 4Ω, contributing to its efficient and stable performance.
The minimum operating temperature for the ZM4737A-GS08 is -65°C.
This general-purpose Zener diode is suitable for voltage regulation and protection in automotive and industrial electronics applications.
This model belongs to Vishay's ZM47 series of Zener diodes.
