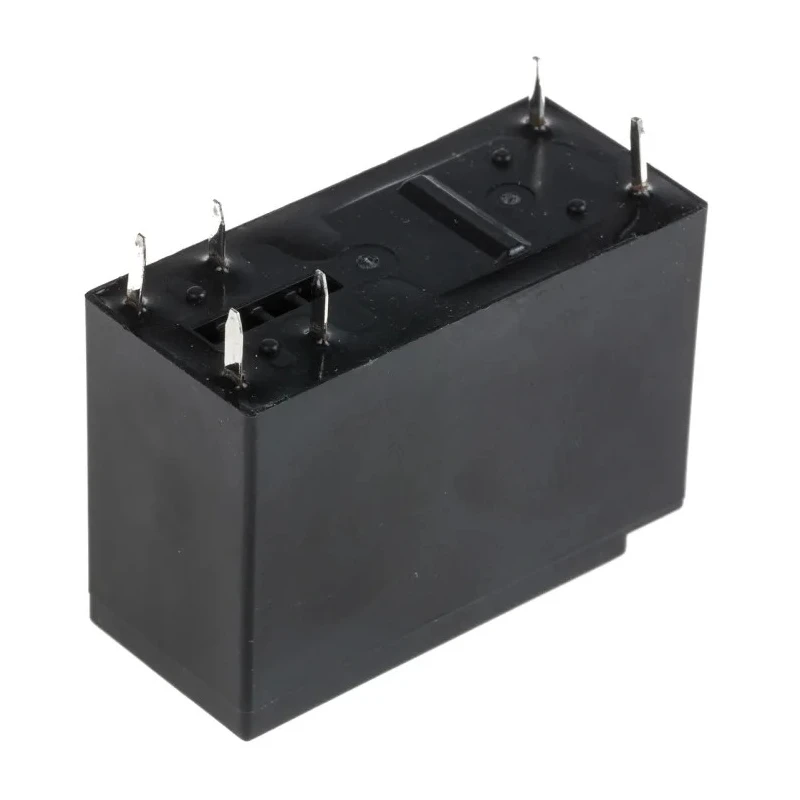

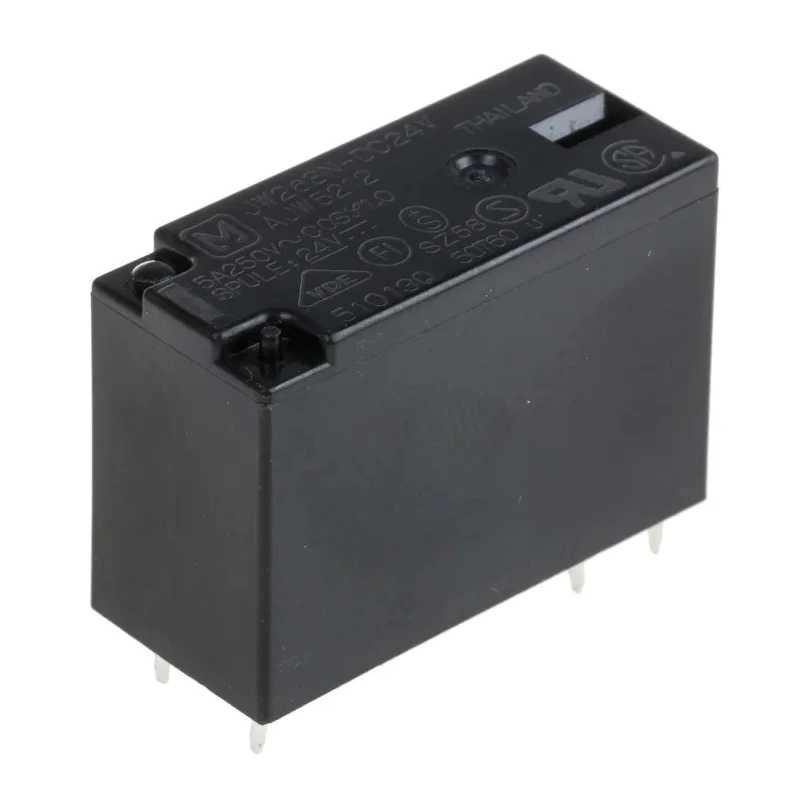

Panasonic PCB Power Relay 24V DC Coil 5A Switching Current DPST JW2ASN-DC24V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 20mm |
| Length | 28.6mm |
| Model | JW2ASN-DC24V |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | JW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Switching Power | 150W |
Key Features
- Features a screw terminal type for secure connections.
- Designed for mounting on PCB providing compact integration.
- Supports switching AC voltage up to 250V and DC voltage up to 30V.
- Coil resistance of 1.1kΩ with coil power consumption of 530mW.
- Operates reliably between -40°C and 60°C temperatures.
- Compact dimensions of 28.6mm length, 20mm height, and 12.8mm width.
- Contact material is durable silver alloy ensuring low contact resistance of 100mΩ.
- Rated switching power of 150W suitable for various electrical loads.
Product Description
Panasonic JW2ASN-DC24V is a high-quality PCB Power Relay featuring a 24V DC coil and a double pole single throw (DPST) contact configuration. This relay is engineered to perform switching operations up to 5 Amps of current, making it suitable for a wide range of industrial, automation, and electronic control applications.
Its compact and sealed construction provides enhanced durability and protection against environmental factors. The device supports a coil resistance of 1.1kΩ and a coil power consumption of 530mW, optimized for efficient performance. The relay is capable of switching AC voltages up to 250V and DC voltages up to 30V with a maximum switching power of 150W.
Designed for easy PCB mounting with screw terminals, it offers secure and reliable electrical connections. The relay's contact material is silver alloy, which contributes to low contact resistance (100mΩ) and long operational life. It can operate safely within a temperature range of -40°C to +60°C.
Dimensions of the relay are 28.6mm in length, 20mm in height, and 12.8mm in width, making it suitable for compact designs and applications where space is at a premium.
This Panasonic power relay is compliant with RoHS standards, ensuring environmentally-friendly manufacturing and use. Typical applications include home appliances, office equipment, and industrial automation systems requiring reliable and precise switching capability.
Features a screw terminal type for secure connections. Designed for mounting on PCB providing compact integration. Supports switching AC voltage up to 250V and DC voltage up to 30V. Coil resistance of 1.1kΩ with coil power consumption of 530mW.
Operates reliably between -40°C and 60°C temperatures. Compact dimensions of 28.6mm length, 20mm height, and 12.8mm width. Contact material is durable silver alloy ensuring low contact resistance of 100mΩ. Rated switching power of 150W suitable for various electrical loads.
Complies with RoHS environmental standards for safety and sustainability. Explore more Power Relay options and complementary components on EnvMart for your industrial and electronic needs.
