TE Connectivity PCB Power Relay, 12V dc Coil, 8A Switching Current, SPST 2-1419129-5

Free Delivery in India | Lowest Global Shipping Charges

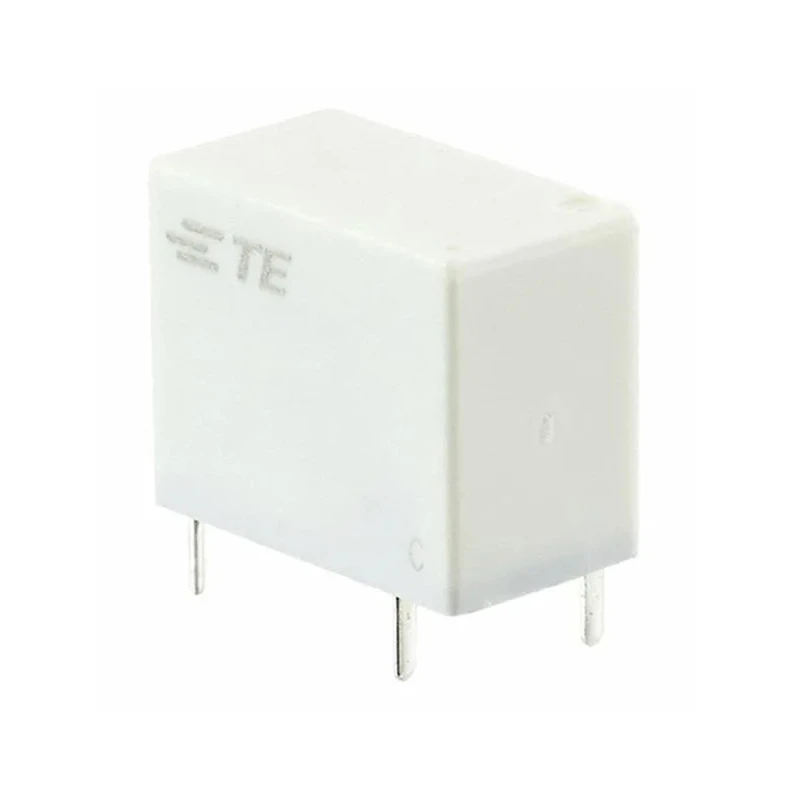

TE Connectivity PCB Power Relay, 12V dc Coil, 8A Switching Current, SPST 2-1419129-5

Name: TE Connectivity PCB Power Relay, 12V dc Coil, 8A Switching Current, SPST 2-1419129-5
Brand: TE Connectivity
SKU: 387624
Price: 2.23 USD
Availability: InStock



Category Power Relay Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Height	14.7mm
Length	18.2mm
Width	10.2mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	OJ
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-30°C
Switching Current	8A
Terminal type	PCB Pin
Standards/Approvals	RoHS
Coil Resistance	720Ω
Coil Voltage	12V dc
Switching DC Voltage	30V dc
Switching AC Voltage	277V
Coil Power	200mW

Key Features

Single pole single throw (SPST) contact configuration ensures precise control.
Designed for PCB mounting with PCB pin terminals for easy integration.
Operates efficiently within temperature range -30°C to 70°C.
Supports switching voltages up to 30V DC and 277V AC.
Coil resistance of 720 ohms and coil power consumption of 200mW optimizes power usage.
Compact dimensions of 18.2mm length, 14.7mm height, and 10.2mm width suit space-constrained applications.
Contact material made of silver alloy for enhanced conductivity and durability.
Meets RoHS compliance for environmental safety.

Product Description

TE Connectivity 2-1419129-5 PCB Power Relay features a 12V dc coil with low coil power consumption of 200mW, designed for reliable switching applications on printed circuit boards. This SPST (single pole single throw) relay can switch currents up to 8A, providing robust control in industrial and electronic circuits.

Its compact design, measuring approximately 18.2mm in length, 14.7mm in height, and 10.2mm in width, facilitates installation in tight spaces. The relay operates efficiently within a wide temperature range from -30°C to 70°C, making it suitable for varied environmental conditions.

With a coil resistance of 720 ohms, the relay consumes minimal power while providing a strong electromagnetic coil function. Its contacts are crafted from high-quality silver alloy, ensuring excellent conductivity and long service life.

This relay supports switching voltages of up to 30V DC and 277V AC, suitable for a broad spectrum of applications including automation systems, electrical equipment, and control circuitry. The isolation voltage of 4000Vac between the coil and contacts enhances safety by preventing electrical interference.

The product complies with RoHS standards, ensuring it is manufactured with environmentally safe materials and processes. Originating from China, the TE Connectivity 2-1419129-5 relay is a reliable component widely used in industrial, laboratory, manufacturing, HVAC, and other professional settings.

Single pole single throw (SPST) contact configuration ensures precise control. 12V dc coil voltage with 200mW coil power consumption for efficient operation. Supports switching current up to 8A for robust electrical switching.

Operates within temperature range from -30°C to 70°C for versatile usage. Compact dimensions facilitate easy PCB mounting and integration. Silver alloy contacts offer high conductivity and durability. High isolation voltage (4000Vac) for coil to contact safety.

Compliant with RoHS environmental standards. Designed for applications across industrial, manufacturing, automation, and HVAC sectors. Explore EnvMart's extensive range of relays and contactors for premium quality power control components designed to meet varied industrial needs.
