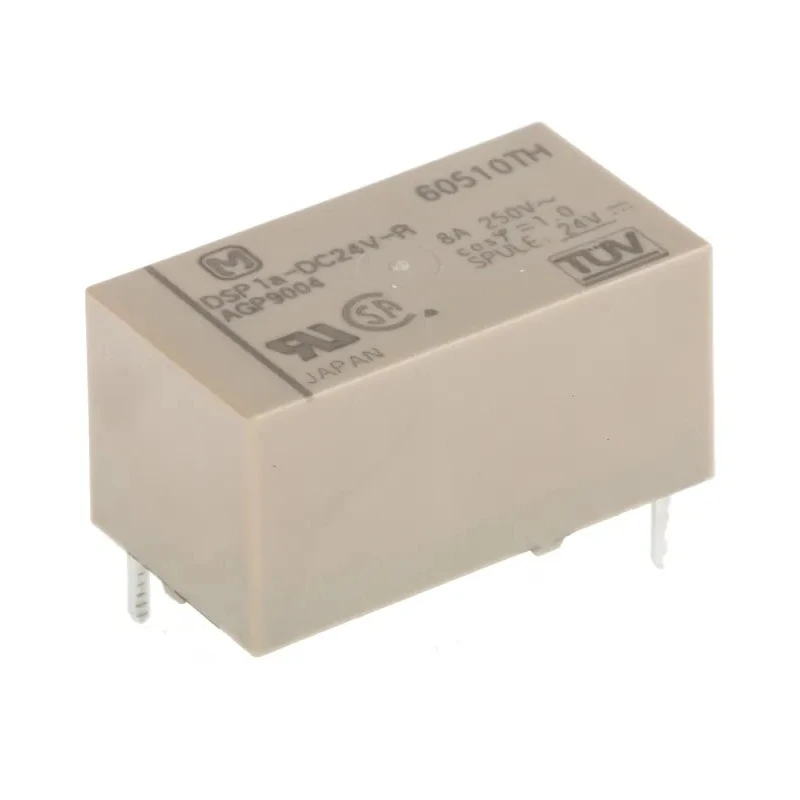

Panasonic PCB Power Relay 24V DC Coil 5A Switching Current SPST DSP1A24RD

Panasonic DSP1A24RD PCB Power Relay is designed for industrial and commercial electronics where precise power switching is required. The relay has a coil voltage of 24V DC and can switch current up to 5 amperes, making it suitable for office equipment, industrial electronic devices, measuring instruments, temperature controllers, and programmable logic controllers (PLCs).

The DSP1A24RD features a single-pole single-throw (SPST) contact configuration with a silver alloy contact material that ensures durability and low contact resistance of 30 milliohms. Its sealed construction allows for automatic cleaning processes without compromising reliability.

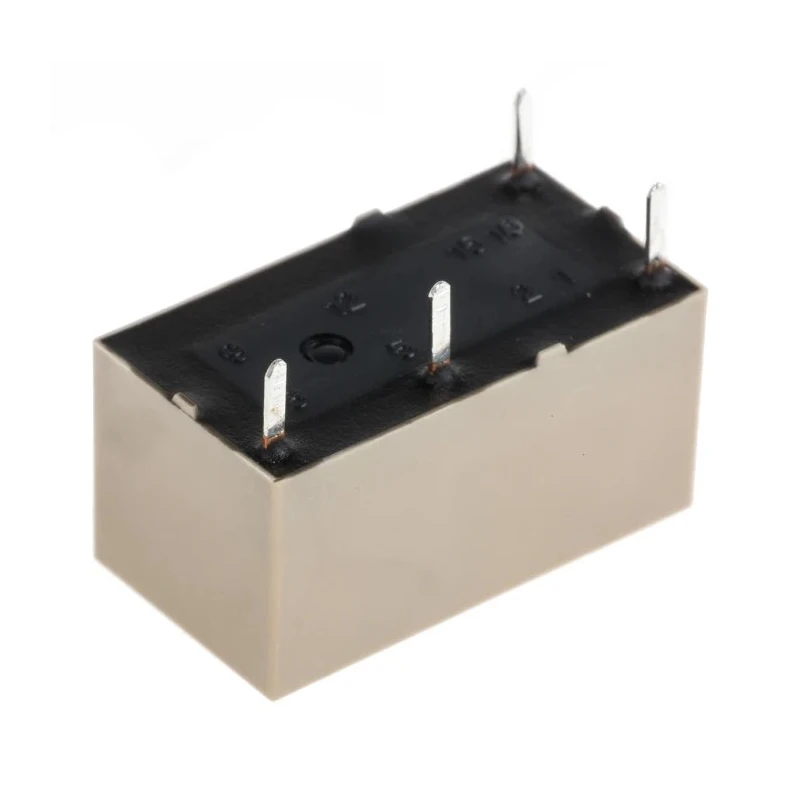

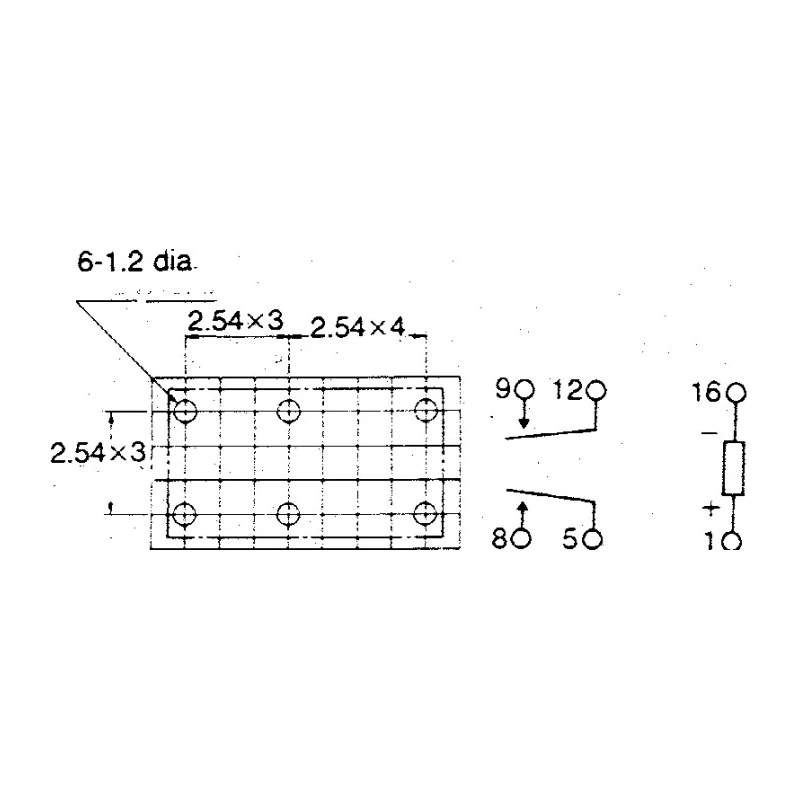

Measuring just 20.2 mm in length, 11 mm in width, and 10 mm in height, this miniature relay integrates easily into standard PCB mounts using PCB pins. Its coil power rating is only 300 milliwatts, with a coil resistance of 1.9 kilo-ohms, contributing to energy-efficient operation.

Rated for switching power up to 150 watts and a maximum switching voltage of 125V both in AC and DC, the DSP1A24RD supports versatile applications in constructions requiring high switching capabilities and breakdown voltage. The operating temperature range from -40°C to 60°C ensures stable performance in harsh environments.

This relay supports a coil voltage of 24 volts DC suitable for PCB mounting. It features a single-pole single-throw (SPST) contact configuration for reliable switching. The DSP1A series ensures high sensitivity, high contact rating, and a sealed construction that allows automatic washing.

The relay is compact with dimensions of 20.2mm length, 11mm width, and 10mm height. It supports switching voltages up to 125V AC or DC and a switching power of 150 watts. The coil power consumption is low at 300mW with a coil resistance of 1.9 kΩ.

Operating temperature range is wide from -40°C up to 60°C, suitable for industrial environments. Contacts are made with silver alloy offering low contact resistance of 30mΩ for stable electrical performance. This relay meets standards including CSA, UL, and VDE for quality and safety compliance.

This Panasonic PCB power relay is ideal for electrical automation, instrumentation, and control systems. Its reliability and compact size make it suitable for dense electronic assemblies in office electronics, industrial machines, and commercial equipment. Explore more Power Relay options and other Panasonic components in the Electronics & Electricals category on EnvMart.
