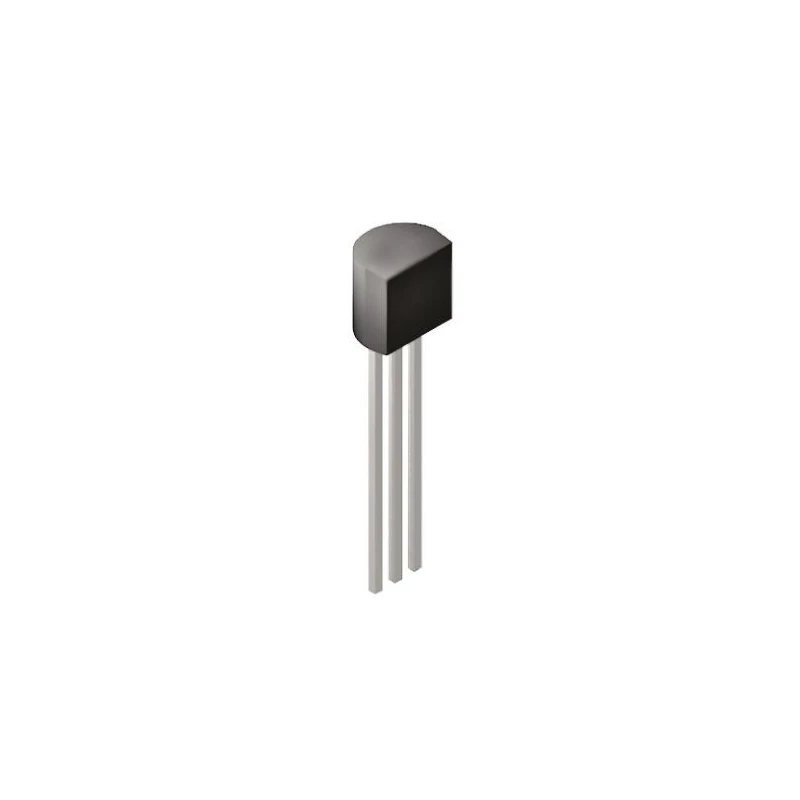

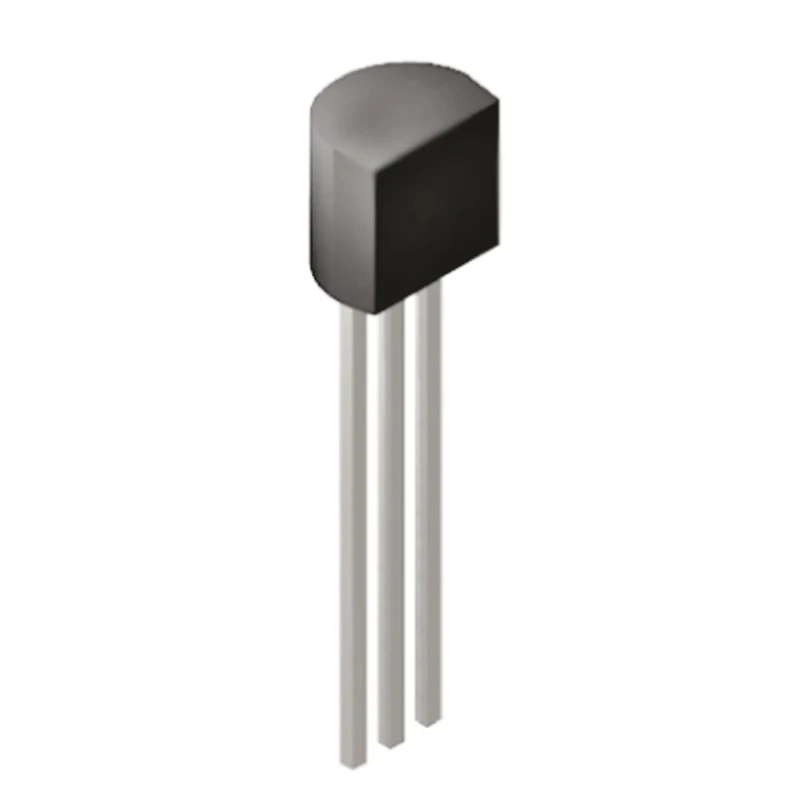

onsemi High Voltage PNP Bipolar Transistor -500 mA, -350 V, 3-Pin TO-92 2N6520TA

onsemi 2N6520TA is a high voltage PNP Bipolar Junction Transistor housed in a durable 3-pin TO-92 package, designed for through-hole mounting in diverse electronic circuits requiring robust switching and amplification up to maximum collector currents of -500 mA.

The transistor features a maximum collector-emitter voltage of -350 V and maximum power dissipation of 625 mW, making it suitable for applications involving high voltage levels and moderate power handling within industrial, laboratory, and manufacturing electronic assemblies.

With a minimum DC current gain of 20 and maximum transition frequency of 200 MHz, the device supports fast switching and amplification tasks. The capability to operate across a temperature range from -55°C to 150°C ensures reliability in various challenging environments including automotive and commercial electronics.

The compact TO-92 package with physical dimensions of 19.05 mm height, 4.58 mm length, and 3.86 mm width facilitates easy integration on printed circuit boards with standard hole spacing. The transistor’s PNP polarity and single transistor configuration make it versatile for discrete component use.

This onsemi 2N6520TA transistor is ideal for use in power regulation, signal amplification, and switching in electronic designs across industrial, HVAC, automotive, and consumer electronics sectors.

This transistor provides a maximum DC collector current of -500 mA for reliable operation. The maximum collector-emitter voltage rating is -350 V suitable for high voltage applications. Designed with a PNP transistor polarity in a compact TO-92 through-hole mount configuration.

It offers a minimum DC current gain (hFE) of 20 and a maximum power dissipation of 625 mW. The transistor supports a maximum operating temperature of 150°C and minimum operating temperature of -55°C. The device has a pin count of 3, ideal for single transistor configurations in circuits.

The maximum transition frequency (ft) is rated at 200 MHz ensuring high-speed switching performance. Physical dimensions are height 19.05 mm, length 4.58 mm, and width 3.86 mm, compatible with PCB designs. Maximum collector base voltage VCBO is -350 V and maximum emitter base voltage VEBO is -5 V.

It is a new product from onsemi, series 2N6520, with no automotive or other certification standards.
