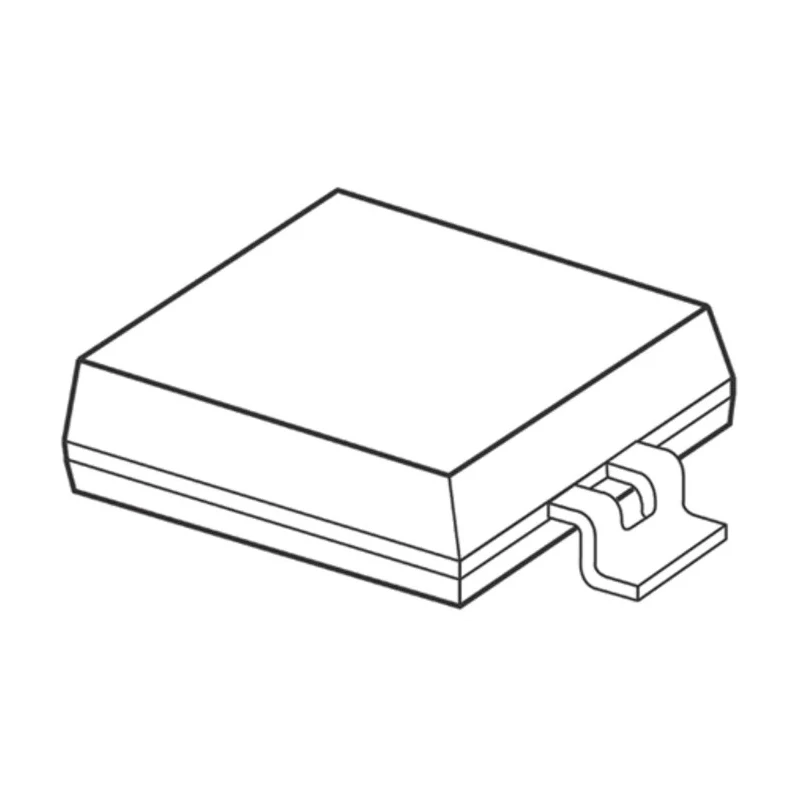

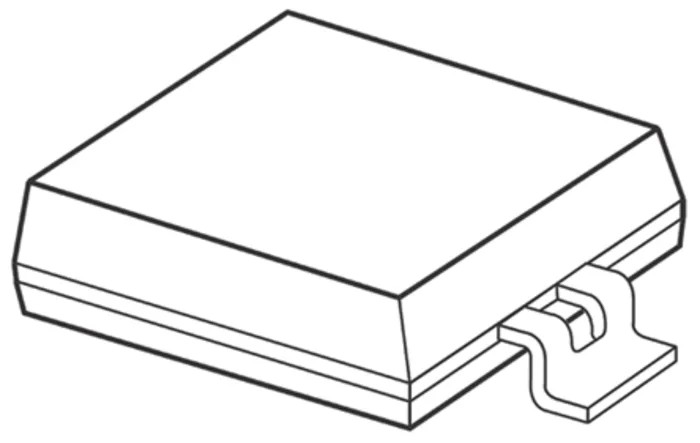

onsemi Infrared Photodiode 65° Reception Angle Surface Mount PLCC 2L Package QSB34CGR

Free Delivery in India | Lowest Global Shipping Charges

onsemi Infrared Photodiode 65° Reception Angle Surface Mount PLCC 2L Package QSB34CGR

Name: onsemi Infrared Photodiode 65° Reception Angle Surface Mount PLCC 2L Package QSB34CGR
Brand: onsemi
SKU: 374109
Price: 0.72 USD
Availability: InStock



Category Photodiode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.2mm
Length	4.5mm
Model	QSB34CGR
Packaging	Tape & Reel
Width	4mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	PLCC 2L
Minimum Operating Temperature	-25°C
Polarity	Forward
Dark Current	0.5nA
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	0.6ns
Wavelength of Peak Sensitivity	940nm
Spectrums Detected	Infrared
Breakdown Voltage	30V
Minimum Wavelength Detected	400nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	65 °
Sensitive area dimensions	2.55 x 2.55 mm
Chip dimensions	3 x 3 mm
Reception angle	120°

Key Features

Detects infrared spectrum with peak sensitivity at 940nm.
Operates within temperature range of -25°C to 85°C.
Compact dimensions of 4.5mm length, 4mm width, and 1.2mm height.
Offers fast response times with typical rise and fall times of 0.6ns.
Features a forward polarity and low dark current of 0.5nA for precision sensing.
Utilizes a 2-pin surface mount PLCC 2L package suitable for automated PCB assembly.
Breakdown voltage rated at 30V ensuring device robustness.

Product Description

The onsemi QSB34CGR is a high-sensitivity infrared photodiode designed for reliable detection of infrared light with a peak wavelength at 940nm. Packaged in a compact PLCC 2-lead surface mount format, it supports automated assembly in electronics manufacturing.

Its 65° half sensitivity angle and 120° reception angle enable efficient infrared light capture for various sensing applications. The device operates effectively in industrial and commercial environments within a wide temperature range from -25°C to 85°C.

The photodiode has precise electrical characteristics including a low dark current of 0.5nA, a breakdown voltage of 30V, and fast typical response times of 0.6ns rise and fall times. The forward polarity configuration supports integration into infrared sensing circuits.

This component's physical dimensions are 4.5mm length, 4mm width, and 1.2mm height with chip size of 3 x 3 mm and sensitive area 2.55 x 2.55 mm, making it ideal for compact electronic designs. It is RoHS compliant, ensuring environmental compatibility.

Typical applications include infrared detection in electronic systems, optical communication, and industrial sensor modules in automation, measuring instruments, and safety equipment. Its surface mount packaging and tape & reel form allow efficient mass production assembly.

Detects infrared spectrum with peak sensitivity at 940nm. Operates within temperature range of -25°C to 85°C. Compact dimensions of 4.5mm length, 4mm width, and 1.2mm height. Features a fast response time with typical rise and fall times of 0.6ns.

Has a low dark current of 0.5nA and breakdown voltage of 30V. Surface mount PLCC 2L package ideal for automated PCB assembly. RoHS compliant for environmental and safety standards.

Choose onsemi QSB34CGR photodiodes for precise infrared sensing needs in electronics manufacturing, industrial automation, and optical communication applications. Explore more products in the Photodiode category on EnvMart for reliable components.
