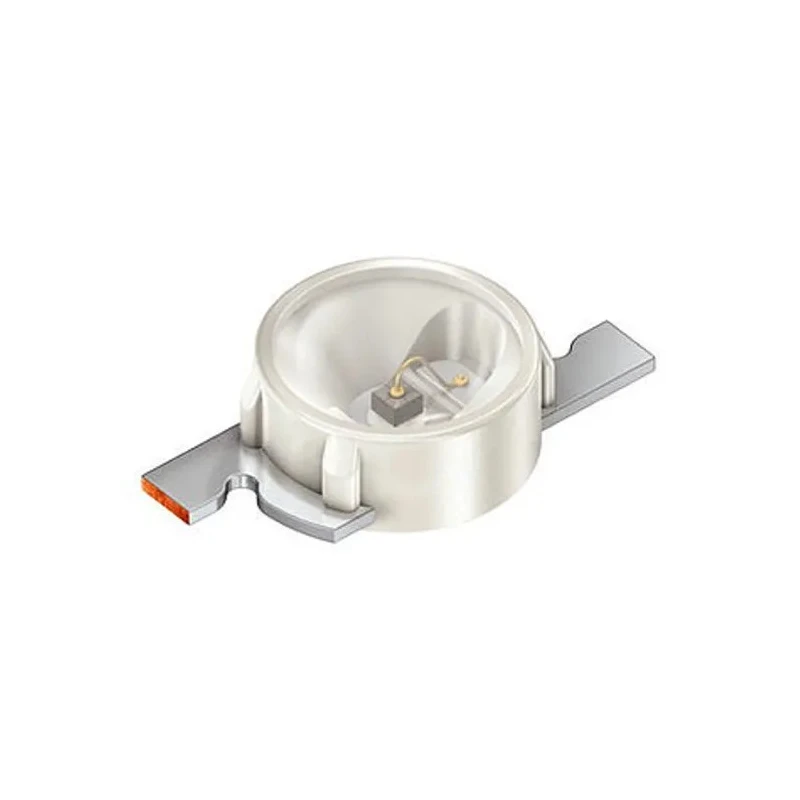

ams OSRAM 1.8 V Red LED Surface PointLED LS P47K-H1K2-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Model | LS P47K-H1K2-1 |
| Mount Type | Surface |
| Series | PointLED |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Standards/Approvals | Lead (Pb) Free, JESD22-A114-B, RoHS, JEDEC Level 2 |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 1.8V |
| Number of Pins | 2 |
| LED Luminosity | 11.2 mcd |
| Maximum Power Dissipation | 50mW |
| Lens Dimensions | 2 mm |
| Lens Shape | Round |
| LED Luminous Flux | 0.02 lm |
Key Features
- Maximum forward current of 20 mA ensures efficient power use.
- Produces luminous flux of 0.02 lumens and brightness of 11.2 mcd.
- Clear round lens with a 2 mm diameter size for easy PCB integration.
- Features Lead (Pb) Free and RoHS compliance for environmental safety.
- Ideal for keypad illumination, display backlighting, and automotive interior lighting.
- Symmetrical radiation pattern offers uniform light distribution.
- Constructed to meet JESD22-A114-B and JEDEC Level 2 standards.
- Automotive standard not applicable to this model.
Product Description
ams OSRAM LS P47K-H1K2-1 is a high-quality red LED Surface PointLED with a forward voltage of 1.8 V and maximum power dissipation rated at 50 mW. Designed with a compact 2 mm diameter round lens, it features a clear lens finish and offers a wide 120° viewing angle for superior light dispersion.
This LED supports a maximum forward current of 20 mA and emits a luminous flux of 0.02 lumens with a brightness of 11.2 millicandela, making it well-suited for electronic display and illumination applications. It meets international standards including Lead (Pb) Free, JESD22-A114-B, RoHS, and JEDEC Level 2, ensuring compliance with environmental and quality requirements.
The symmetrical radiation pattern of this LED enables consistent lighting, ideal for applications such as keypad illumination, display backlighting, coupling to light guides, and automotive interior lighting.
The compact size allows it to be flush-mounted on PCBs using surface mount technology, promoting efficient and reliable assembly. While this particular model does not meet automotive standard certifications, its robust design makes it suitable for industrial, electronic, and consumer electronic applications.
Maximum forward current: 20 mA. Forward voltage: 1.8 V. Maximum power dissipation: 50 mW. Viewing angle: 120 degrees. LED luminous flux: 0.02 lumens. LED luminosity: 11.2 mcd. Lens diameter: 2 mm round clear lens. Compliant with Lead (Pb) Free, RoHS, JESD22-A114-B, and JEDEC Level 2 standards.
Surface mount type for PCB installation. Ideal for keypad illumination, display backlighting, light guide coupling, and automotive interior lighting. Explore more LEDs and optoelectronic components at EnvMart, your trusted source for industrial and electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 20 mA.
The forward voltage of the LS P47K-H1K2-1 is 1.8 V.
This LED emits a luminous flux of 0.02 lumens.
The brightness of this model is 11.2 millicandela (mcd).
The viewing angle of the LS P47K-H1K2-1 is 120 degrees.
The lens diameter of this LED is 2 mm, and it has a round shape.
This model is compliant with Lead (Pb) Free, RoHS, JESD22-A114-B, and JEDEC Level 2 standards.
This LED supports surface mounting for PCB installation.
It is suitable for keypad illumination, display backlighting, light guide coupling, and automotive interior lighting.
The LS P47K-H1K2-1 features a symmetrical radiation pattern, providing uniform light distribution.
The maximum power dissipation for the LS P47K-H1K2-1 is rated at 50 mW.
This LED has 2 pins.
