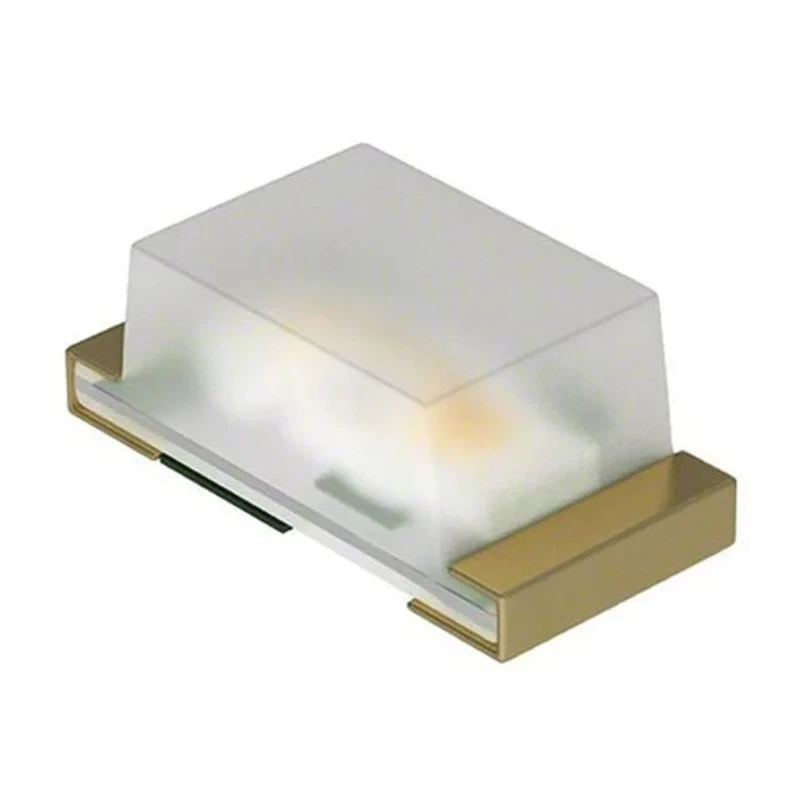

onsemi Phototransistor Surface 2-Pin Chip LED Package KDT00030TR

The onsemi KDT00030TR is a high-performance phototransistor housed in a compact surface mount 2-pin chip LED package. It features a peak wavelength of 630nm, providing sensitivity tailored to visible light detection applications.

This phototransistor delivers a maximum light current of 1100μA and a maximum dark current of 100nA, ensuring excellent signal accuracy and low noise. The device maintains good output linearity across a wide range of illumination levels, enabling reliable performance in various optoelectronic circuits.

With a minimal footprint of 1.7 mm length by 0.8 mm width and an ultra-low profile height of 0.6 mm, it is optimized for space-constrained electronic designs. The device operates efficiently within a temperature range of -40°C to 85°C, making it suitable for demanding industrial environments.

The package is designed for surface mounting and comes supplied in tape and reel format, facilitating high-volume automated PCB assembly. The rated collector emitter voltage is 6 V, compatible with most control and sensing circuits.

Applications include optocouplers, light detection systems, and other photodetector functions within industrial, electronics, and manufacturing sectors. Its small size and reliable performance make the KDT00030TR ideal for modern compact electronics requiring precision light sensing.

Operates with peak wavelength of 630nm. Max light current of 1100μA for high sensitivity. Compact footprint: 1.7 x 0.8 mm and low profile of 0.6 mm. Wide operating temperature from -40°C to 85°C. Good output linearity across a wide illumination range.

Surface mountable in 2-pin chip LED package. Tape and reel packaging for automated manufacturing. Rated collector emitter voltage of 6 V. Suitable for industrial and electronic optoelectronic applications. Explore additional onsemi phototransistor products and similar electronic components at EnvMart to support your design and manufacturing needs.
