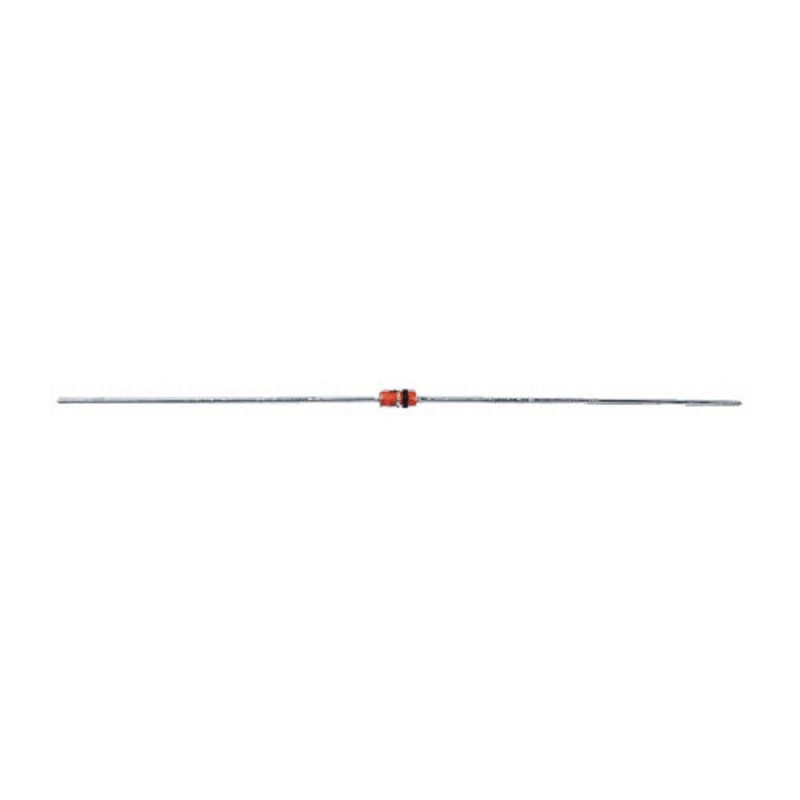

onsemi 3.9 V General Purpose Zener Diode 500 mW Through Hole 2-Pin SOD-27 1N5228BTR

onsemi 1N5228BTR is a general purpose Zener diode rated at 3.9 volts nominal zener voltage and 500 milliwatt power dissipation. It is configured as a single element in a 2-pin SOD-27 through hole package designed for ease of mounting in electronic circuits.

This diode offers reliable voltage regulation and reference capabilities ideal for applications in electronics components, power supplies, and semiconductor discrete semiconductor assemblies. Its 3.9 V nominal voltage with tolerance of ±5% ensures precise voltage control.

The device operates effectively within an extended temperature range from -65°C to 200°C, making it suitable for various industrial and commercial applications including industrial power management, semiconductor circuit design, and embedded systems.

The 1N5228BTR features a maximum zener impedance of 23 ohms which guarantees stable voltage clamping performance, and maximum reverse leakage current of just 10 microamperes enhancing circuit reliability.

Physical dimensions include a length of 4.56 mm and a height of 1.91 mm facilitating space-efficient PCB layouts. This product is part of the 1N52 series known for robust performance in discrete semiconductor roles.

Designed for through hole mounting with a compact SOD-27 package. Capable of dissipating up to 500 mW power with 3.9 V nominal zener voltage. Features a pin count of 2 with a nominal test current of 20 mA. Operates reliably between -65°C to 200°C, suitable for industrial temperature ranges.

Maximum zener impedance is 23 ohms ensuring stable voltage regulation. Maximum reverse leakage current is limited to 10 microamperes. Dimensions measure approximately 4.56 mm in length and 1.91 mm in height. General purpose zener diode suitable for electronics, power management, and semiconductor discrete applications.

This onsemi 1N5228BTR Zener diode is applicable in various industrial, electronics manufacturing, power conversion, and semiconductor discrete component assembly contexts. It offers dependable performance for designers requiring precise voltage regulation in their circuits.

Explore more on Zener Diodes and discrete semiconductor components in the EnvMart catalog to find various specifications and package styles suitable for your application needs.
